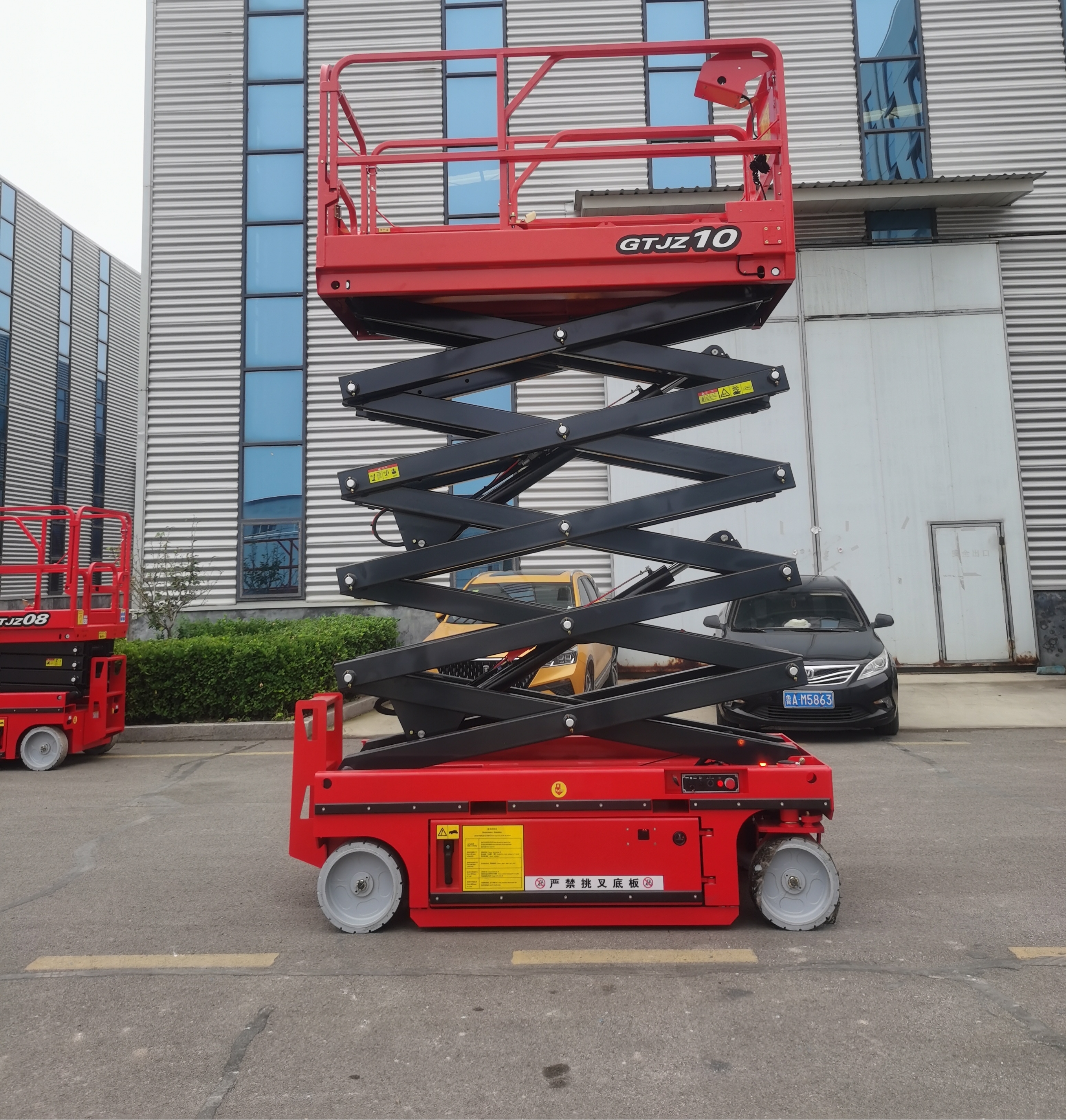

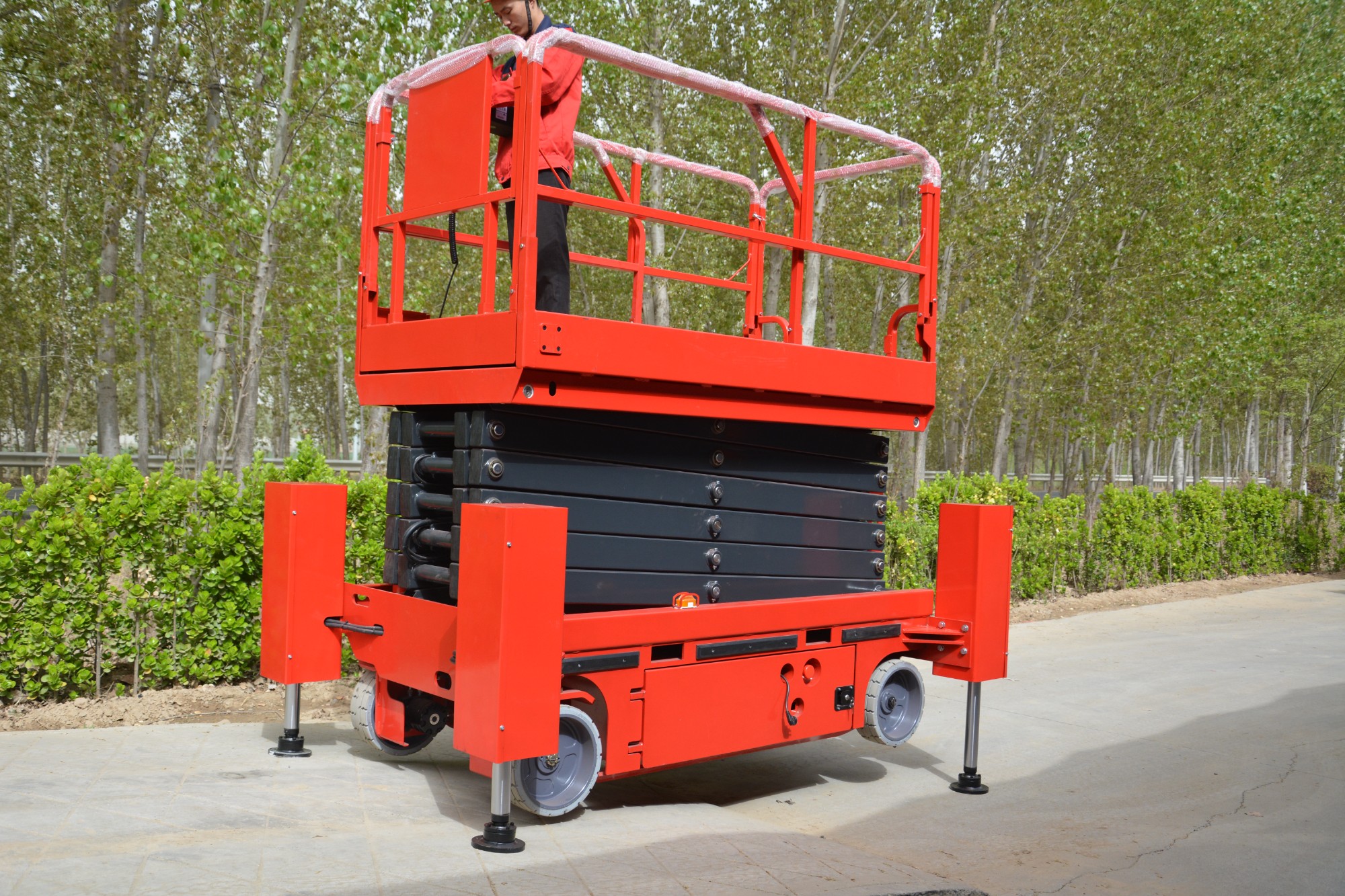

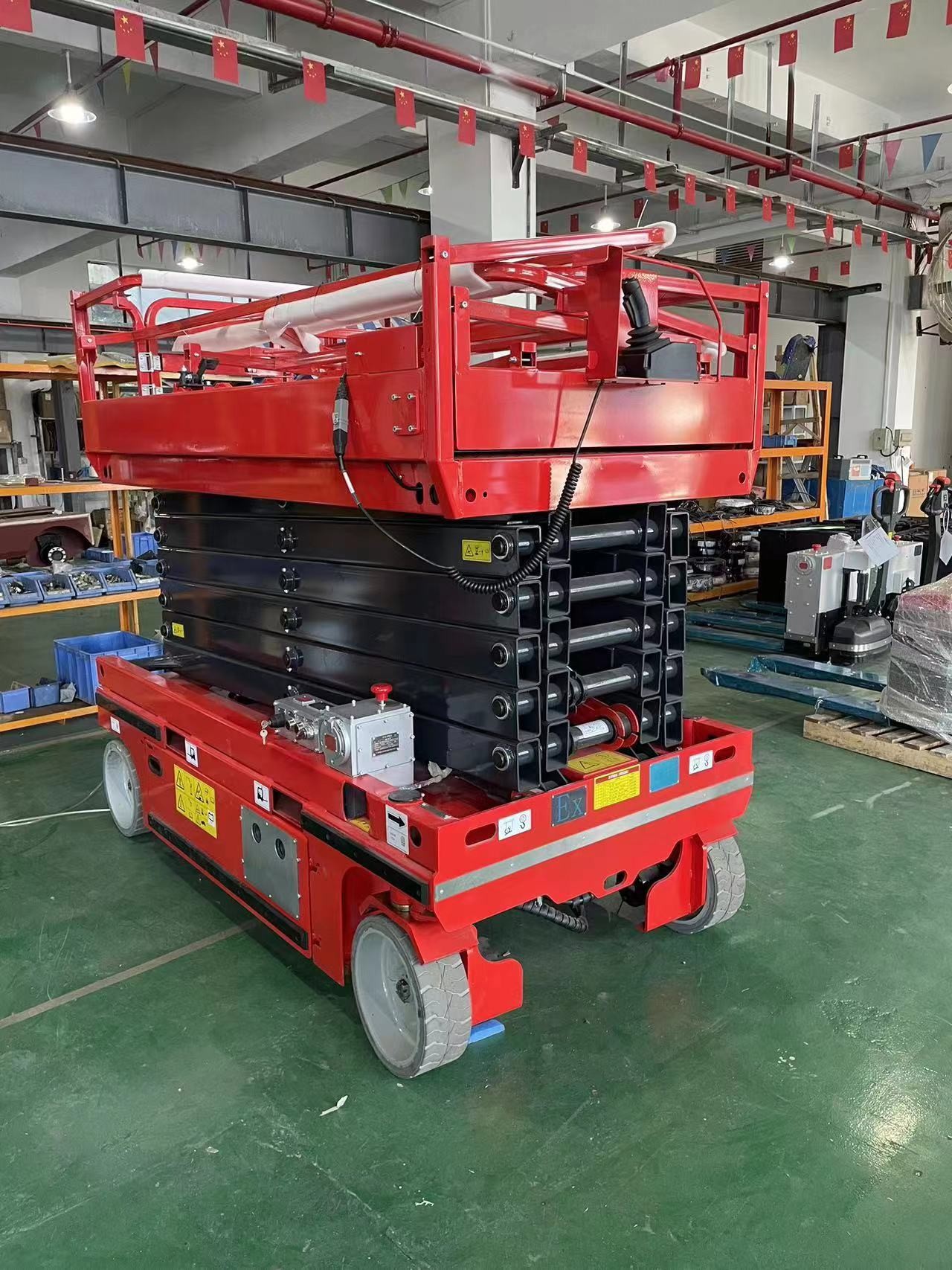

Replacing Scaffolding with Precision Elevation Technology
Brand: Henan Hengkun Crane Co., Ltd.
Applications: Construction sites, warehouses, maintenance facilities, retail stores, and industrial plants requiring safe, efficient access to elevated work areas for installation, repair, inventory management, and cleaning tasks.
760mm Narrow Width (6m models): Navigates standard doorways
Folding Guardrail System: Reduces transport height by 40%
90° Steering Pivot: Zero turning radius in tight spaces
DC Battery-Powered Drive: Zero emissions with whisper-quiet operation (<65 dB)
Infinitely Variable Speed Control: Smooth acceleration/deceleration
Extended Duty Cycle: 8+ hours continuous operation (48V/210Ah configuration)
Dual-Side Rotating Service Trays: Tool-free access for maintenance
Bi-Directional Platform Extension:
Electric models: 0.6m unilateral extension
Diesel models: 1.2m bilateral extension
Non-Slip Diamond Plate Flooring: 1.8×0.8m base platform (expandable to 3.0×0.8m)
| Parameter | Specification |
|---|---|
| Max. Working Height | 6–16 meters (platform height) |
| Platform Dimensions | 1.8 x 0.8 m – 2.5 x 1.2 m (LxW) |
| Load Capacity | 200–500 kg |
| Drive Power | 24V/48V DC electric or hybrid (diesel backup) |
| Travel Speed | 0–3.5 km/h (self-propelled) |
| Lift Speed | 0.15–0.3 m/s (adjustable) |
| Battery Runtime | 8–10 hours (full charge) |
| Gradeability | Up to 25% (depending on model) |
| Tire Type | Solid, cushion, or pneumatic (optional) |
| Protection Grade | IP54 (standard), IP65 (optional) |
| Ambient Temperature | -10°C to +50°C |
| Certifications | CE, ANSI/SAIA A92.20, ISO 9001 |
1. Indoor Operation Optimized
Silent brushless motor technology
Non-marking polyurethane tires
Spark-proof electrical system (optional)
2. Precision Maneuverability
Front/rear dual-drive configuration
Proportional hydraulic steering
Automatic brake engagement on incline
3. Maintenance Engineering
Rotating access trays with tool holders
CAN-BUS diagnostics interface
Modular component architecture
4. Global Compliance
CE EN 280:2013 certified
ANSI/SAIA A92.20 compliant
IP54 electrical protection
5. Customization Options
Explosion-proof variants (ATEX Zone 2/22)
Cold-weather packages (-30°C operation)
Custom color schemes (RAL code matching)
Global Compliance: CE, ANSI, ISO, and OSHA standards.
Installation: On-site setup and operator training.
Warranty: 12–24 months (extendable) with 24/7 technical support.
Maintenance: OEM spare parts and predictive service plans.
Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective self-propelled scissor lifts that combine European safety standards with rugged industrial performance. Rigorously tested for reliability, our lifts are trusted globally for construction, warehousing, and facility management operations.
Request a Quote – Elevate your productivity with precision-engineered access solutions!
