Brand: Henan Hengkun Crane Co., Ltd.
Applications: Workshops, warehouses, production lines, logistics centers, and outdoor yards requiring flexible, independent lifting solutions for material handling, assembly, and maintenance tasks.

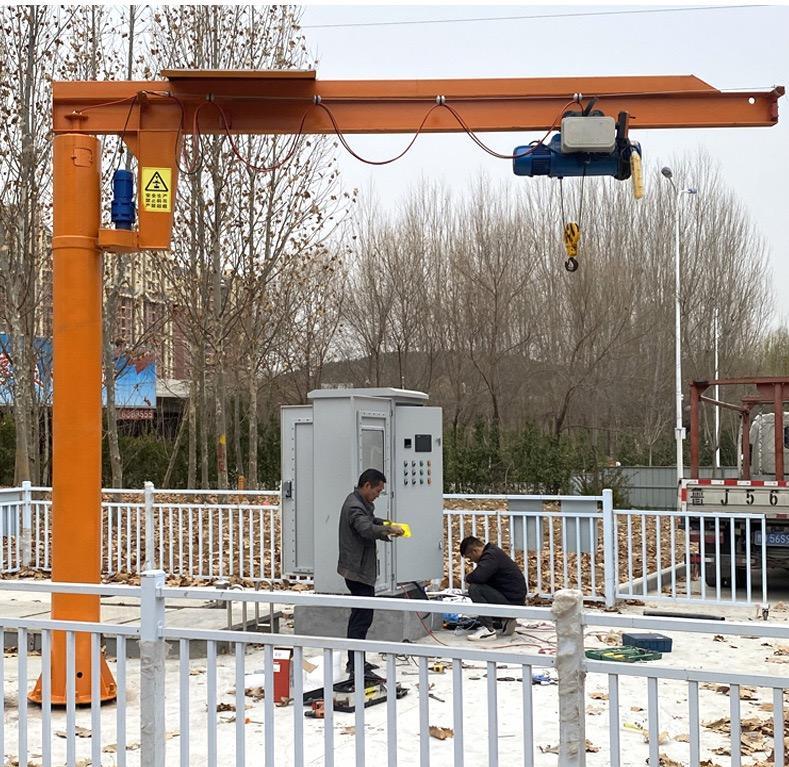

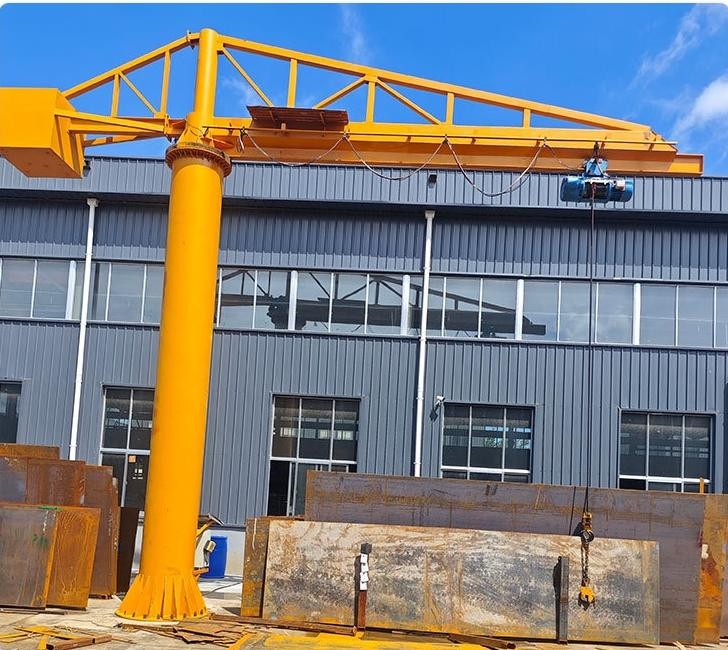

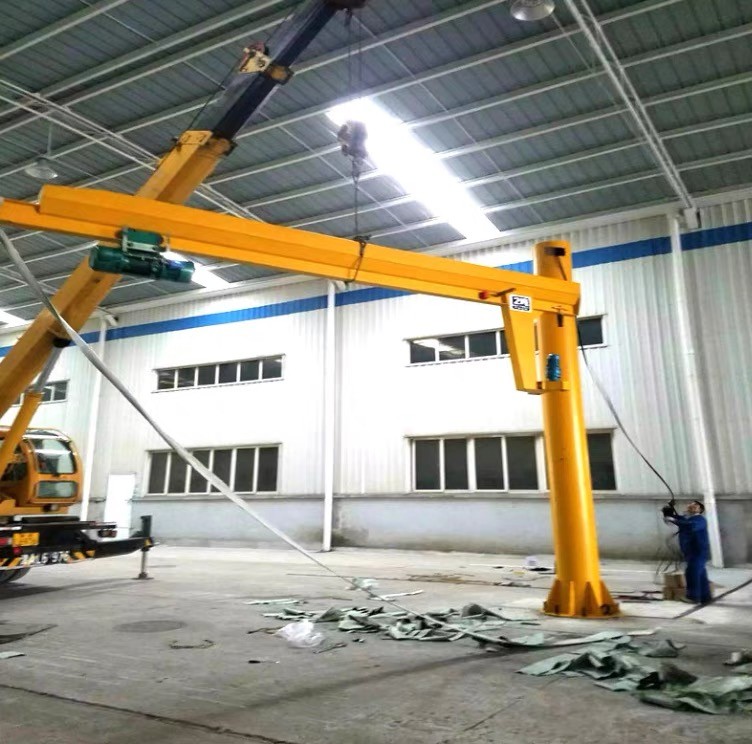

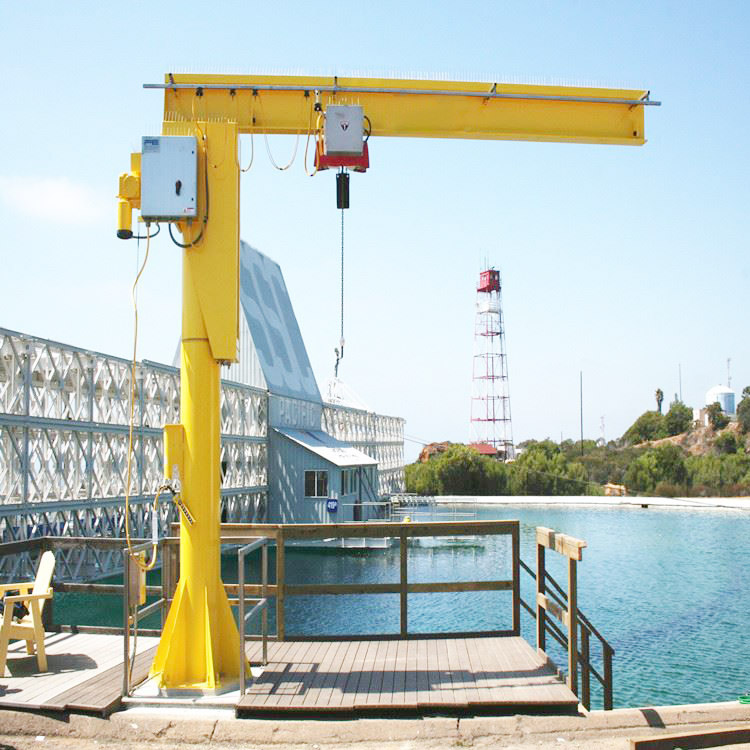

When Overhead Cranes are overkill and manual lifting slows production, Henan Hengkun’s Pillar Jib Crane delivers 2-tonne to 10-tonne precision handling within a 3-8m work radius. With zero ceiling intrusion and 15-second load positioning, it’s the ultimate space-saving solution for assembly cells, CNC machine feeding, and maintenance bays – proven in 200+ Chinese manufacturing plants.
Model: HEK-P Series
| Component | Specification | Customization Options |
|---|---|---|
| Lifting Capacity | 0.5T, 1T, 2T, 3T, 5T, 10T | 15T heavy-duty version available |
| Working Radius | 3m, 4m, 5m, 6m, 8m | 9m extended reach (with tie-rod) |
| Rotation Angle | 360° continuous rotation | 180°/270° limited rotation |
| Column Height | 3.5m standard (floor to boom center) | 2.8m-6.2m adjustable |
| Slewing Torque | ≤35 N·m (manual) / ≤120 N·m (motorized) | Variable speed motorized drive |
| Surface Treatment | Shot blasting SA2.5 + epoxy-polyurethane coating (60μm) | Zinc spray for corrosive environments |
| Standards | EN 13157, FEM 1.004, GB/T 3811 | CE, ISO 9001 certified production |
| Application | Hengkun Solution | Value Delivered |
|---|---|---|
| CNC Machine Feeding | Motorized Rotation + VFD Hoist (mm-precision) | 40% faster tool change cycles |
| Assembly Stations | Tool Balancer Integration + LED work lights | Ergonomic parts positioning |
| Welding Bays | Insulated boom design (500V isolation) + spark shields | Eliminate electrical interference |
| Maintenance Pits | Corrosion-resistant package (IP56) + grease-free bushings | Withstand oil/chemical exposure |
Operational Modes:
Manual Push: Low-friction design (≤50N force for 500kg load)
Motorized Rotation: 0.15-0.8 rpm variable speed (IP55 gearmotor)
Safety Systems:
Dual Braking: Mechanical disc brake + electromagnetic hold
Overload Protection: Strain gauge sensor (±2% accuracy)
Anti-Dropping Device: Secondary latch hook (ASME B30.11)
Rotation Lock: Automatic pin engagement during maintenance
1. Space-to-Productivity Ratio
1.5m² footprint vs. 15m² for Overhead Crane
15-minute installation with laser-aligned base template
2. Lifecycle Economy
10-year structural warranty (industry standard: 5 years)
Modular rebuild kits for boom/column refurbishment
