ANSI A92.20/EN 280 Certified with ±80° Platform Rotation & 45% Gradeability
Brand: Henan Hengkun Crane Co., Ltd.
Applications: Construction sites, warehouses, facility maintenance, film production, and industrial projects requiring precise, flexible access to hard-to-reach areas for installation, repair, painting, and inspection tasks.

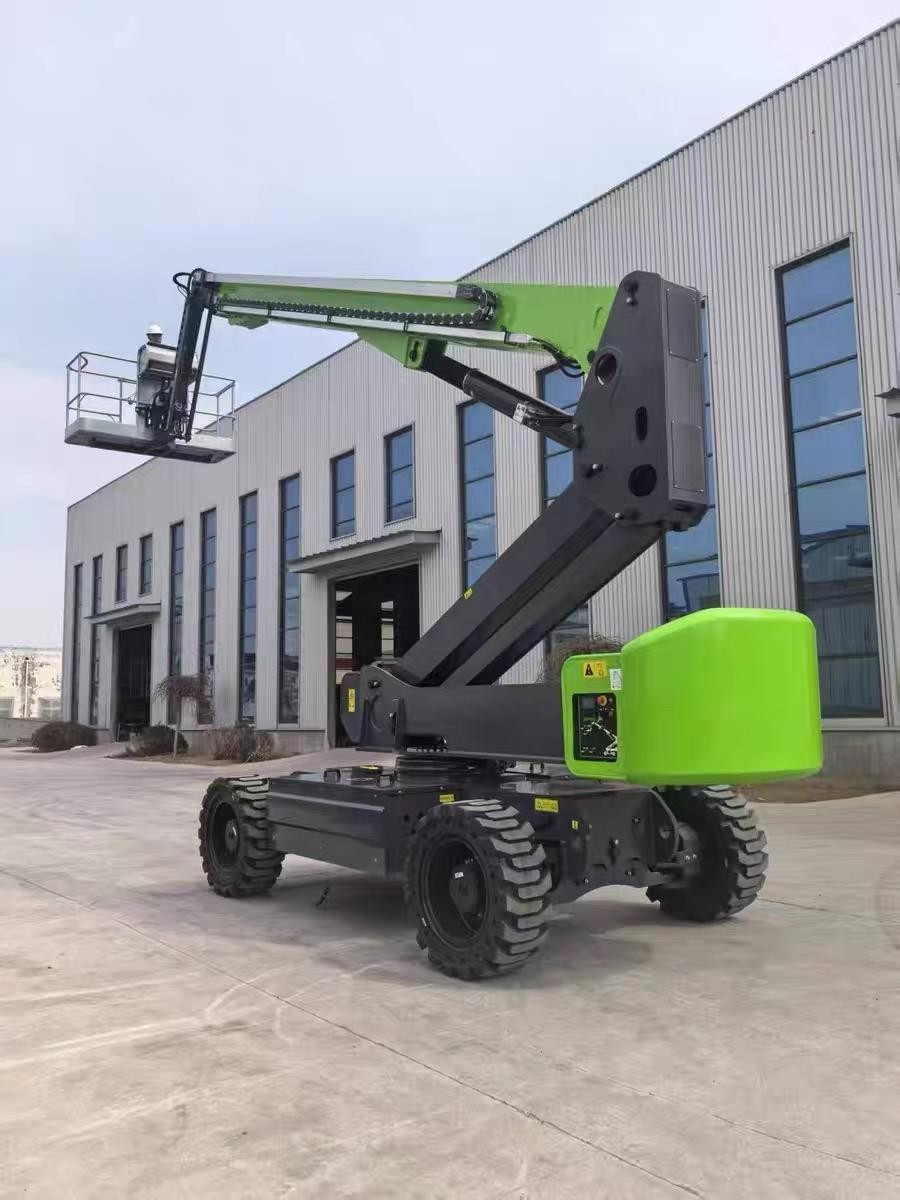

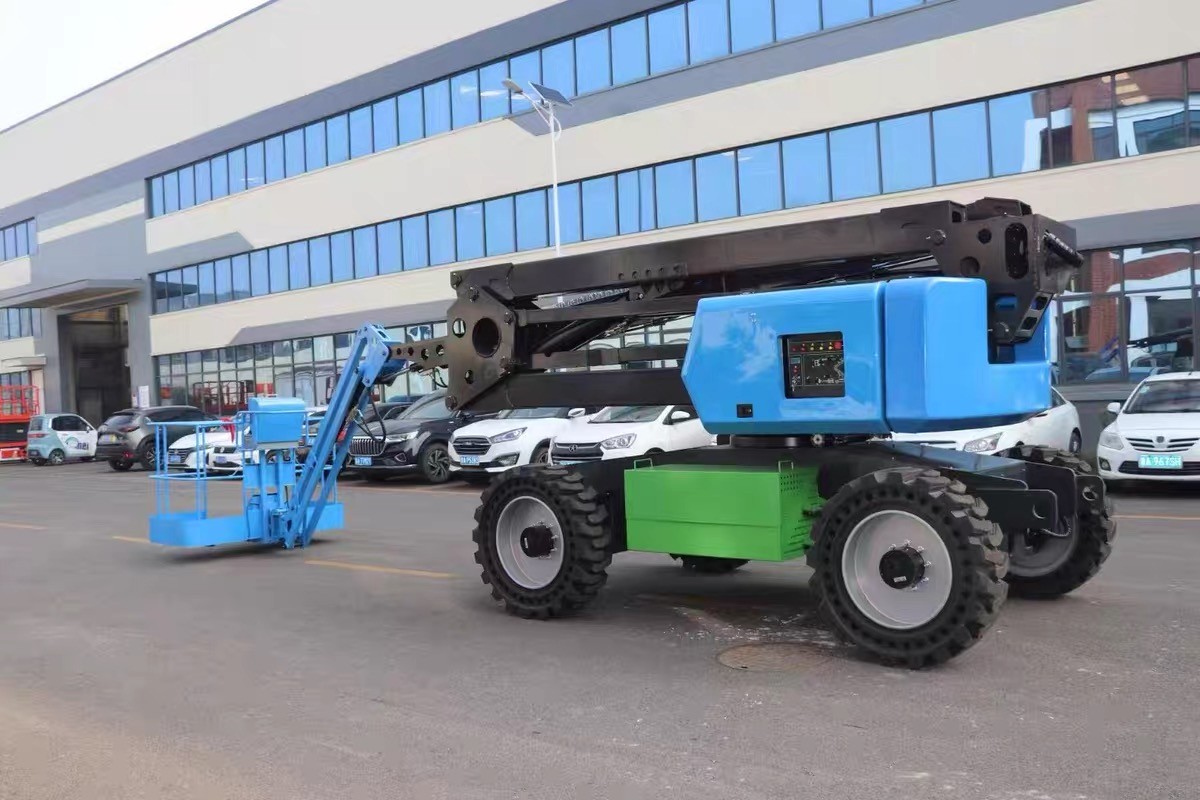

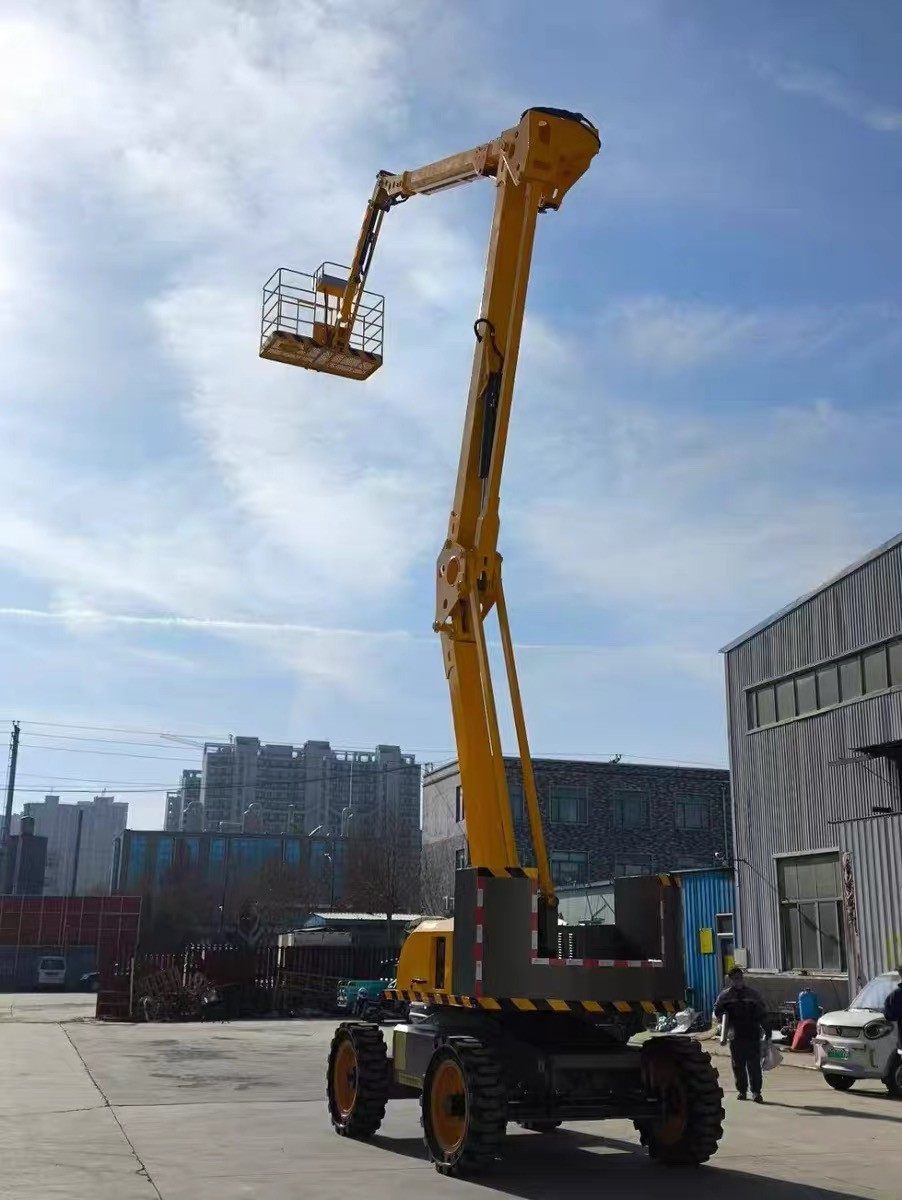

Henan Hengkun’s V-Series Articulated Boom Lifts deliver unmatched versatility across construction sites, orchards, and landscape maintenance. Featuring 4x2/4x4 drive systems and agricultural-optimized platforms, our lifts achieve 9.4m up-and-over clearance for obstacle navigation in dense foliage while maintaining 350kg payload capacity.
Dual-Arm Articulation:
→ 3-section main boom + 1-section jib
→ ±80° platform rotation (360° turntable)
Up-&-Over Performance:
→ Max clearance: 4.1-9.4m (model dependent)
→ Ideal for orchard pruning and canopy access
4x2 Traction (V18/V20):
→ Central oscillating axle (20° articulation)
→ 45% gradeability with tilt sensor override
Ground Clearance:
→ 300mm center / 220mm wheelbase (V20)
| Model | Max Platform Ht. | Max Over Clearance | Capacity | Platform Size | Drive | Weight |
|---|---|---|---|---|---|---|
| V09 | 9.5m | 4.1m | 130kg | 1.4×0.7m | 2×2 | 5,410kg |
| V11 | 10.52m | 4.65m | 130kg | 1.4×0.7m | 2×2 | 4,800kg |
| V14 | 14m | 7.0m | 230kg | 1.4×0.76m | 2×2 | 5,960kg |
| V16 | 16m | 7.2m | 230kg | 1.4×0.76m | 2×2 | 6,630kg |
| V18 | 18.7m | 8.0m | 350kg | 1.8×0.76m | 4×2 | 9,100kg |
| V20 | 20m | 9.4m | 350kg | 1.8×0.76m | 4×2 | 10,000kg |
Shared Performance Features
Platform Rotation: ±80°
Jib Movement: ±70°
Travel Speed: 4.5-5.1 km/h (stowed)
Battery: 48V/420Ah (8hr runtime)
Working Slope: 3° max with auto-tilt lock
► FRUIT-FRIENDLY DESIGN:
• Non-marking PU tires (avoid soil compaction)
• Protective canopy guard (branch deflection)
► EFFICIENCY TOOLS:
• Platform-mounted harvest basket mounts
• 12V DC output for electric pruners
Low-Impact Mode:
→ 0.7kg/cm² ground pressure (turf protection)
1, Smart Terrain Adaptation
→ Real-time load moment calculation
✅ Collision Avoidance
→ Ultrasonic proximity sensors (360° coverage)
→ Auto-stop at 30cm from obstacles
✅ Operator Protection
→ EN 280 compliant guardrail system
→ Emergency descent (manual hydraulic)
California Citrus Grove Case
*12×V18 units with harvest kits:
40% faster fruit picking vs ladders
Zero tree damage over 3 seasons*
Structural: FEM 1.001 Category A
Electrical: UL 61010-1 (North America)
Environmental: IP54 rating (dust/moisture)
Safety: ISO 16368 Level 3
Global Compliance: CE, ANSI, ISO, and OSHA standards.
Installation: On-site training and safety inspections.
Warranty: 12 months (extendable) with 24/7 technical support.
Maintenance: OEM spare parts and predictive maintenance programs.
Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective electric articulated boom lifts that blend European engineering standards with cutting-edge innovation. Rigorously tested for safety and reliability, our lifts are trusted globally for construction, facility maintenance, and industrial applications demanding precision and eco-efficiency.
Request a Custom Solution – Elevate productivity with agile, emission-free access technology!
