Dual-Power Design: Lithium/Diesel | Engineered for Rugged Access
Brand: Henan Hengkun Crane Co., Ltd.
Applications: Construction sites, mining operations, oil fields, shipyards, and rugged outdoor environments requiring stable, high-reach access on uneven terrain for maintenance, installation, and inspection tasks.

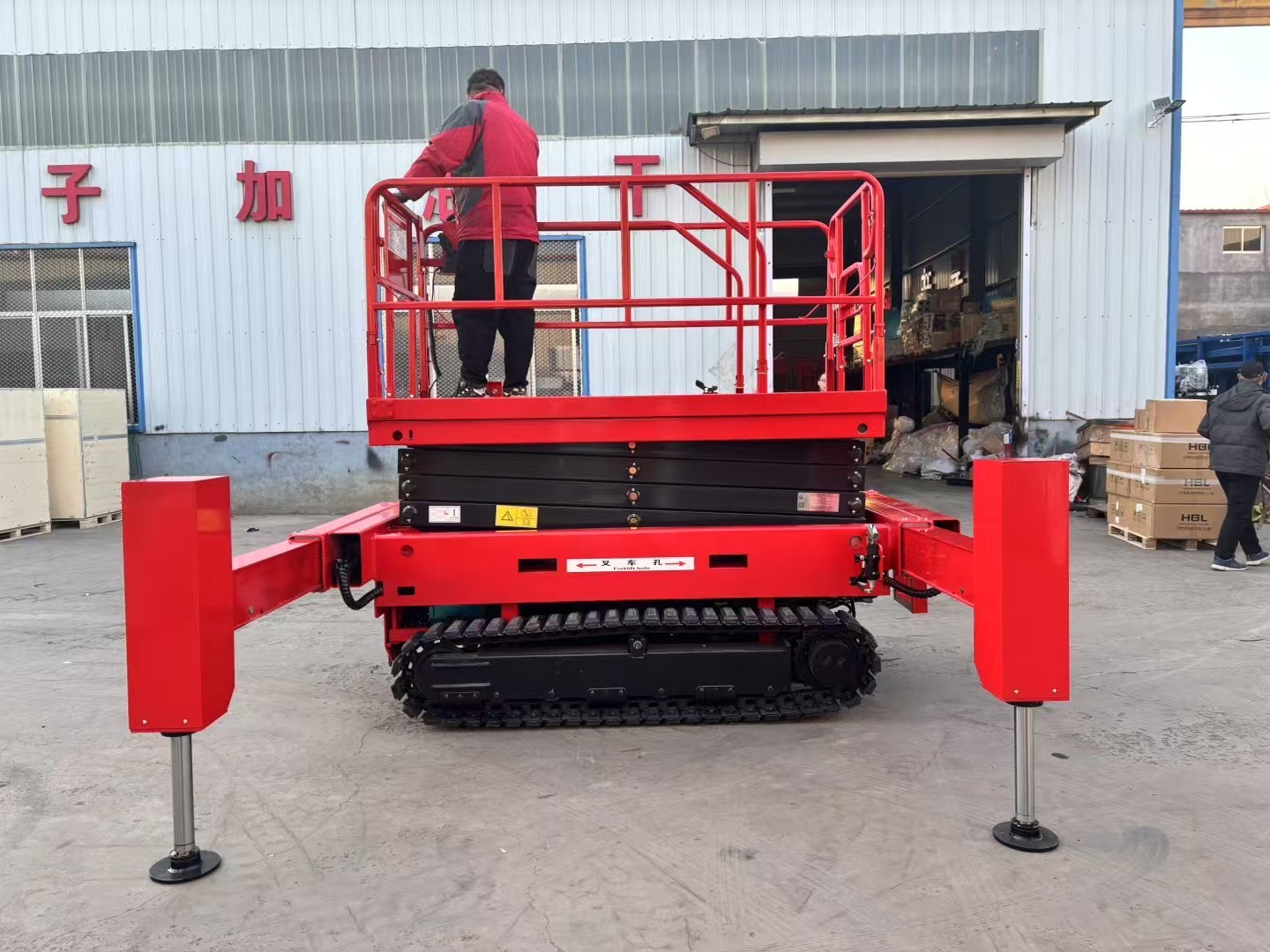

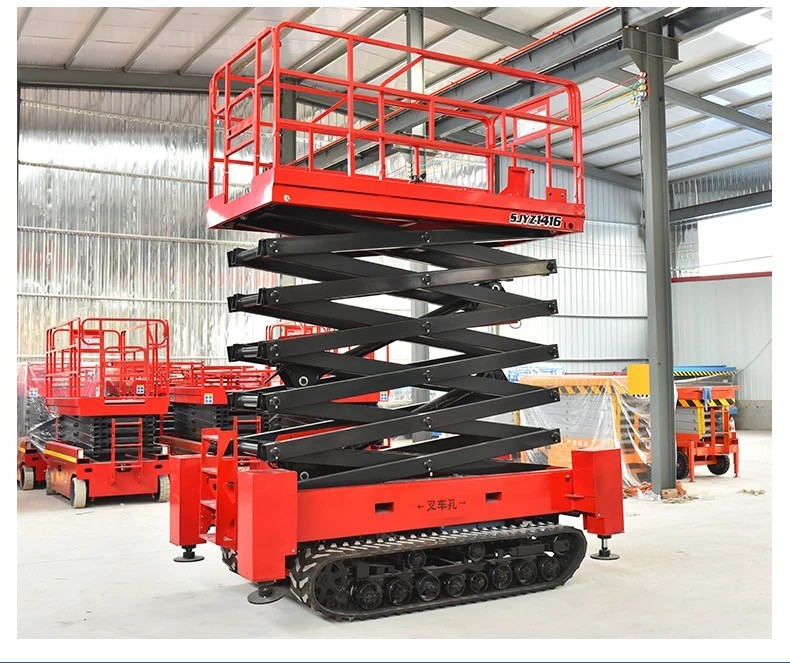

Our Crawler Self-Propelled Scissor Lift is a heavy-duty aerial work platform engineered for extreme outdoor conditions where traditional wheeled lifts struggle. Featuring a track-driven (crawler) undercarriage, this lift delivers unmatched stability, traction, and mobility on soft, muddy, or sloped surfaces. With a working height of up to 14 meters and robust load capacity, it ensures safe, efficient operations in construction, mining, and industrial maintenance.

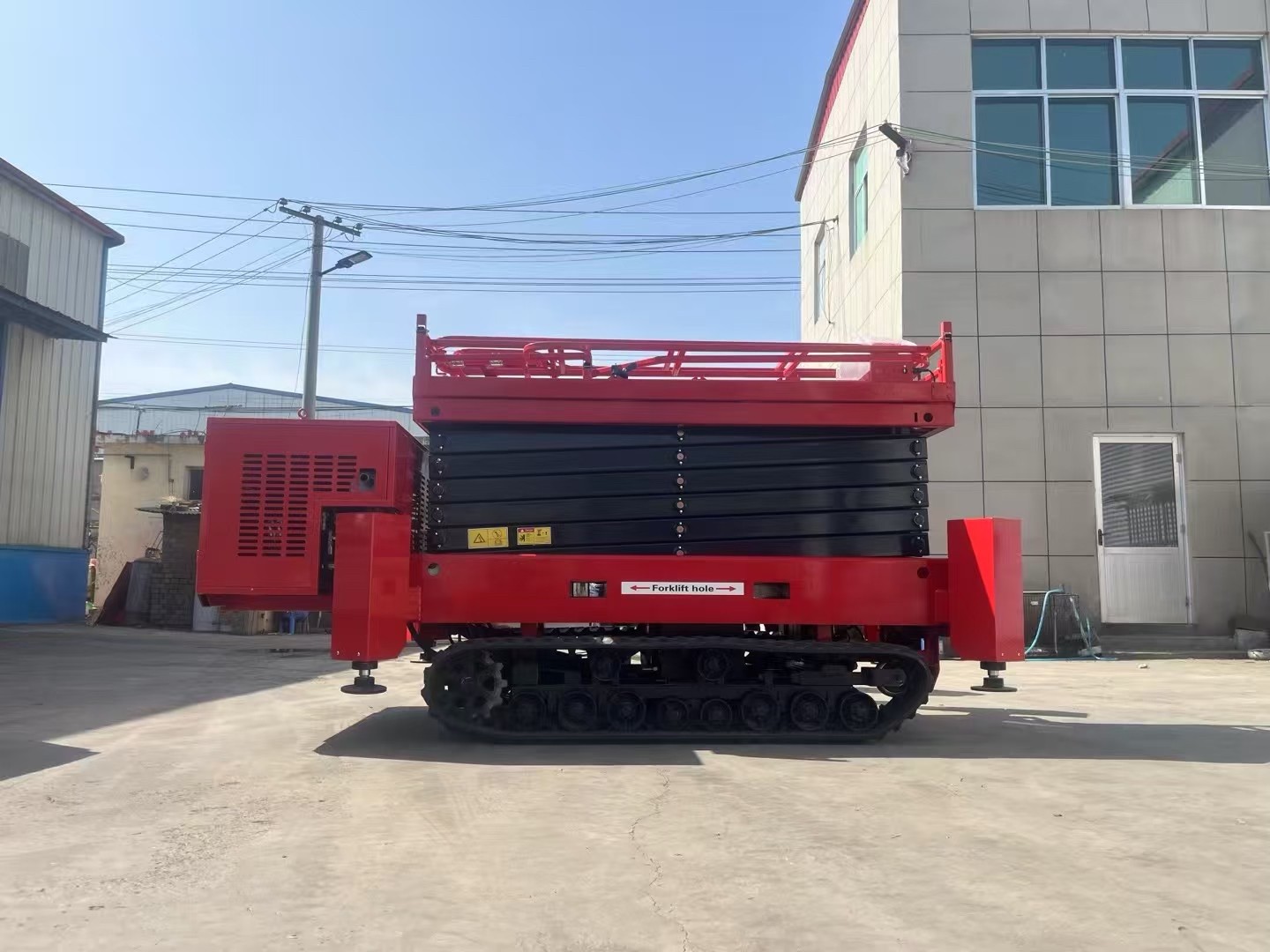

Diesel Model
All-Terrain Mobility
Rubber track system provides superior grip on mud, gravel, slopes (up to 30°), and uneven ground.
Self-propelled drive eliminates manual pushing, even in challenging environments.
Heavy-Duty Stability
Reinforced steel scissor mechanism with anti-corrosion coatings (ISO 12944 C5-M).
Outriggers or stabilizers (optional) for added stability on unstable surfaces.
Advanced Safety Systems
Tilt sensors, overload alarms, and emergency descent functions.
Non-slip platform flooring, guardrails, and harness anchor points.
Energy Efficiency
Hybrid power system (diesel-electric or lithium-ion battery) for extended runtime (8–12 hours).
Regenerative braking reduces energy consumption during lowering.
User-Friendly Operation
Joystick controls for precise movement and lift/lower adjustments.
Weatherproof control panel with diagnostics and fault alerts.
| Parameter | Specification |
|---|---|
| Max. Working Height | 6–18 meters (platform height) |
| Platform Dimensions | 2.2 x 1.0 m – 3.0 x 1.5 m (LxW) |
| Load Capacity | 300–500 kg |
| Drive System | Hydraulic track motors (crawler) |
| Travel Speed | 0–4 km/h (self-propelled) |
| Lift Speed | 0.1–0.25 m/s (adjustable) |
| Power Source | Diesel-electric hybrid or lithium-ion battery |
| Battery Runtime | 8–12 hours (full charge) |
| Max. Slope Angle | Up to 30° (depending on model) |
| Track Width | 400–600 mm (heavy-duty rubber tracks) |
| Protection Grade | IP65 (standard) |
| Ambient Temperature | -20°C to +40°C |
| Certifications | CE, ISO 9001, ANSI/SAIA A92.20 |
Power Systems: Full electric (battery), hybrid, or diesel-only configurations.
Platform Extensions: Telescopic or foldable platforms for extended reach.
Safety Add-ons: Proximity sensors, wind resistance kits, or emergency lighting.
Track Upgrades: Steel-reinforced tracks for rocky or abrasive terrain.
Control Systems: Wireless remote operation or IoT-enabled diagnostics.
1. Terrain-Optimized Tracks
Interlocked Rubber Tracks: Reinforced steel cores + non-marking treads
Auto-Tension System: Maintains 18-22 psi ground contact pressure
Swivel Joints: 15° articulation per axle for uneven ground
2. Intelligent Stabilization
Slope Sensors: Auto-level platform within 3° on 20% gradients
Hydraulic outriggers one-button leveling
Wind Rating: Operational in 12.5m/s winds (Beaufort 6)
3. Safety Architecture
Dual Braking:
Regenerative electromagnetic brakes
Mechanical disc backup (EN 280 compliant)
Emergency Descent: Backup battery powers 4.5m/min lowering
| Project Profile | Savings vs. Wheeled Lifts |
|---|---|
| Bridge Maintenance | 65% less setup time → saves $3,200/day |
| Indoor Retrofit | Zero floor protection costs |
| Forestry Work | 40% wider operating season (mud/wet conditions) |
Global Compliance: CE, ANSI, ISO, and OSHA standards.
Installation: On-site assembly and operator training.
Warranty: 12–24 months (extendable) with 24/7 technical support.
Maintenance: OEM spare parts and preventive service programs.
Why Choose Us?
As a leading Chinese manufacturer, we deliver rugged, cost-effective crawler scissor lifts that combine European engineering standards with off-road durability. Rigorously tested for reliability in extreme conditions, our lifts are trusted globally for construction, mining, and industrial projects demanding unstoppable mobility and safety.
Request a Quote – Conquer rugged terrain with precision-engineered aerial access!
