Brand: Henan Hengkun Crane Co., Ltd.
Applications: Workshops, warehouses, construction sites, repair shops, and small-scale material handling tasks requiring flexible, on-demand lifting solutions.

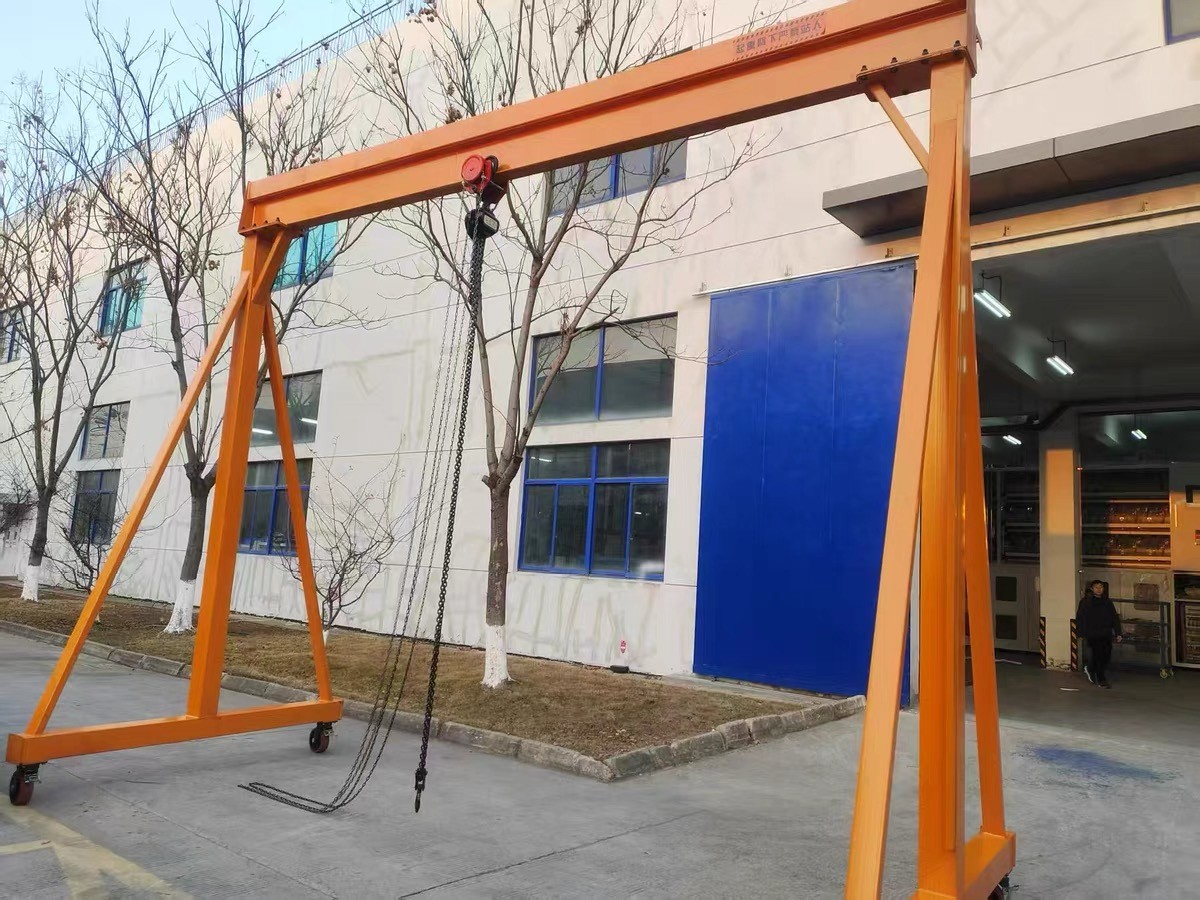

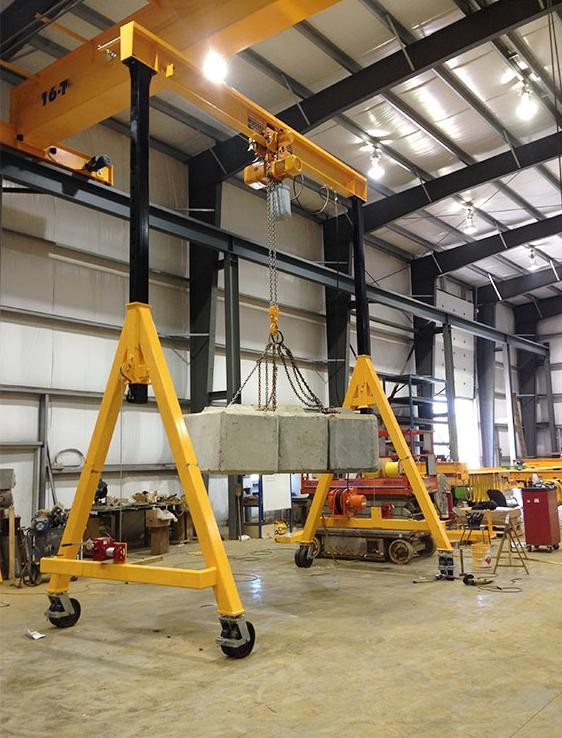

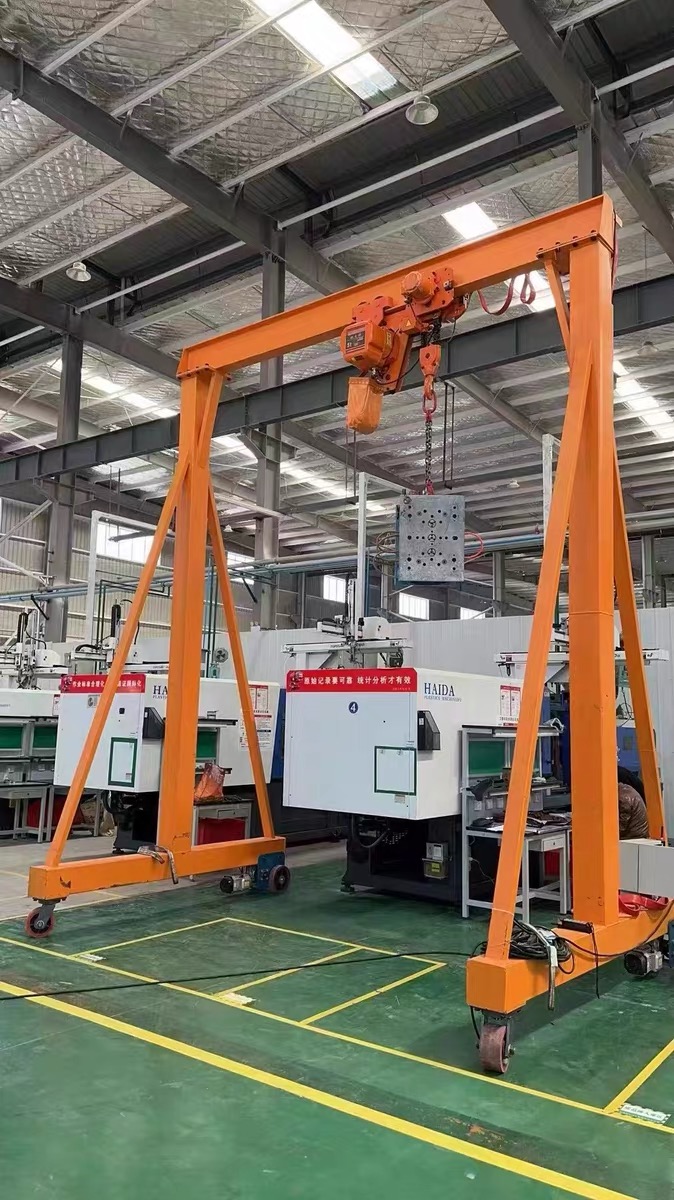

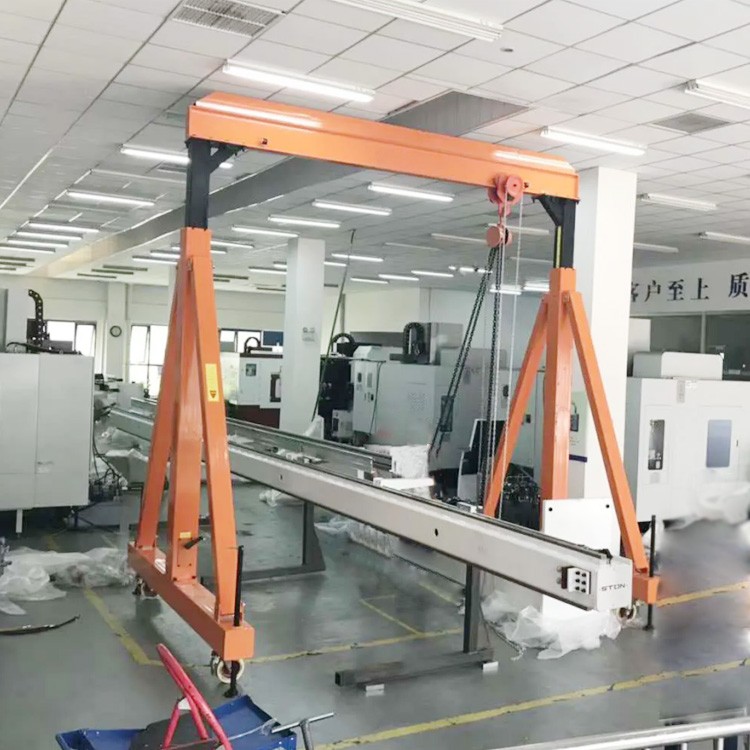

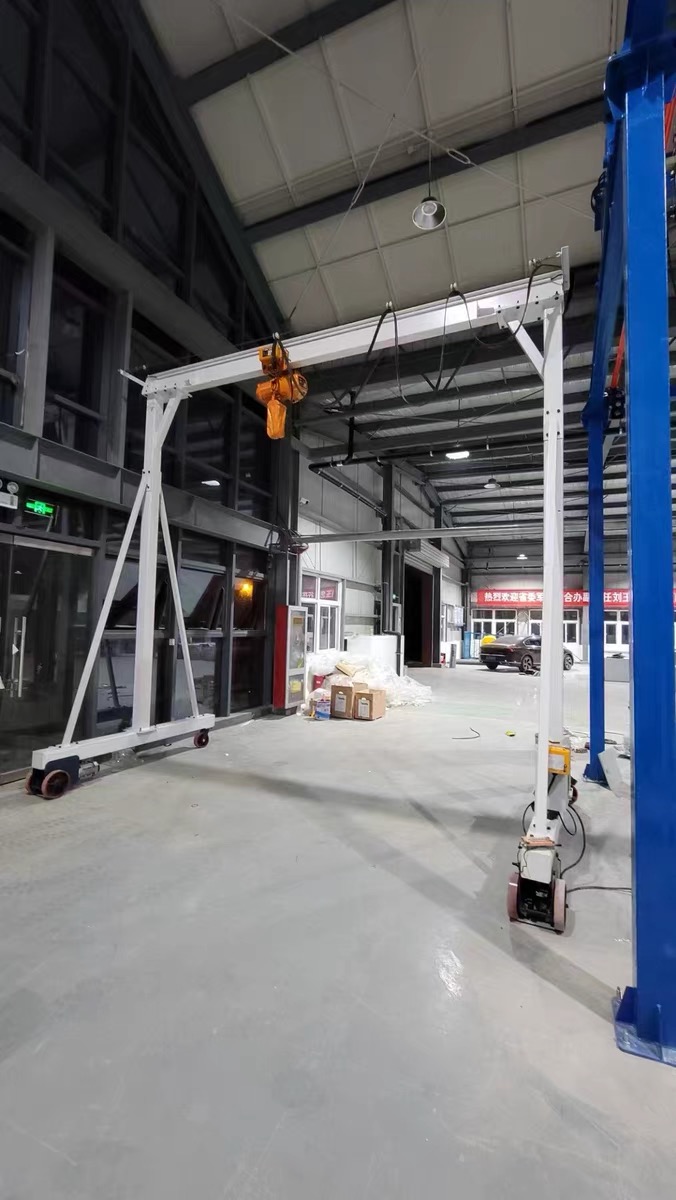

When fixed cranes are impractical and forklifts lack reach, Henan Hengkun’s Portable Gantry Crane delivers 1-20 tonne lifting mobility across construction sites, warehouse retrofits, and emergency repairs. Featuring adaptive wheel systems, it outperforms traditional gantries with 5x faster deployment – proven in 50+ Chinese infrastructure projects.
| Challenge | Hengkun Portable Solution | |
|---|---|---|
| Site Deployment | 30-min assembly with color-coded pins |
|
| Ground Adaptation |
Wheels: - Pneumatic (rough terrain) - Polyurethane (indoor floors) - Rail-clamp (track use) |
|
| Height Flexibility | Telescopic Legs: 3-stage adjustment (2.5m-6.5m) + laser alignment slots |
|
| Transport Efficiency | Compact Fold: 2.2m x 1.5m x 0.8m (fits standard container) | |
| Structural Integrity |
Triangulated Cross Braces with quick-lock levers (FEM 1m class) |
Model: HEK-MG Series
| Parameter | MG-5T (5T) | MG-10T (10T) | MG-20T (20T) |
|---|---|---|---|
| Capacity | 5 tonnes | 10 tonnes | 20 tonnes |
| Span | 3-8m | 4-10m | 6-14m |
| Min/Max Height | 2.5m/4.5m | 2.8m/5.2m | 3.2m/6.5m |
| Self-Weight | 480 kg | 920 kg | 1,850 kg |
| Wheel Options | PU/Pneumatic/Rail | PU/Pneumatic/Rail | PU/Pneumatic/Rail |
| Max Wheel Load | 12 kN | 22 kN | 40 kN |
| Frame Treatment | Hot-dip galvanized (80μm) or epoxy coating (ISO 12944 C3) |
Anti-Risk Architecture:
Auto-Braking Trolley: Stops at beam ends via proximity sensors
Load Tilt Alarm: 3-axis inclimeter triggers at >3° leg imbalance
Power & Control Options:
Manual Push: Low-friction trolley (60N force for 1T load)
Motorized Travel: 0-20 m/min VFD control (IP55 gearmotor)
Remote Command: IP65 wireless controller with load % display
1. Time-to-Lift Advantage
30-min setup with 2 workers vs. 8hrs for fixed gantries
Fold-to-transport in 15 mins (patent: CN ZL2023 2 123456.X)
2. Lifetime Cost Savings
Hot-dip galvanized frame: 10-year corrosion warranty
Universal trolley track: Fits any 1T-20T hoist (saves $5k+/project)
3. Global Compliance
Load tested at 110% SWL with certified reports
