Semi-Gantry Crane

Category： Gantry Crane
Hybrid Support Configuration：Single Leg + Building-Mounted Girder | Track/Wheel Mobility (Optional)
Low-Profile Design & Clearance：Headroom: ≤500mm | Hook Approach: Optimized for Low Ceilings
Span: 5m-30m
Light to Medium Duty Efficiency：Capacity: 1T-20T | FEM Class A3-A5 (Moderate Duty)
INQUIRY EMAIL

Semi-Gantry Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Workshops, warehouses, logistics centers, steel processing plants, and facilities requiring flexible lifting solutions with partial runway systems.

Product Overview

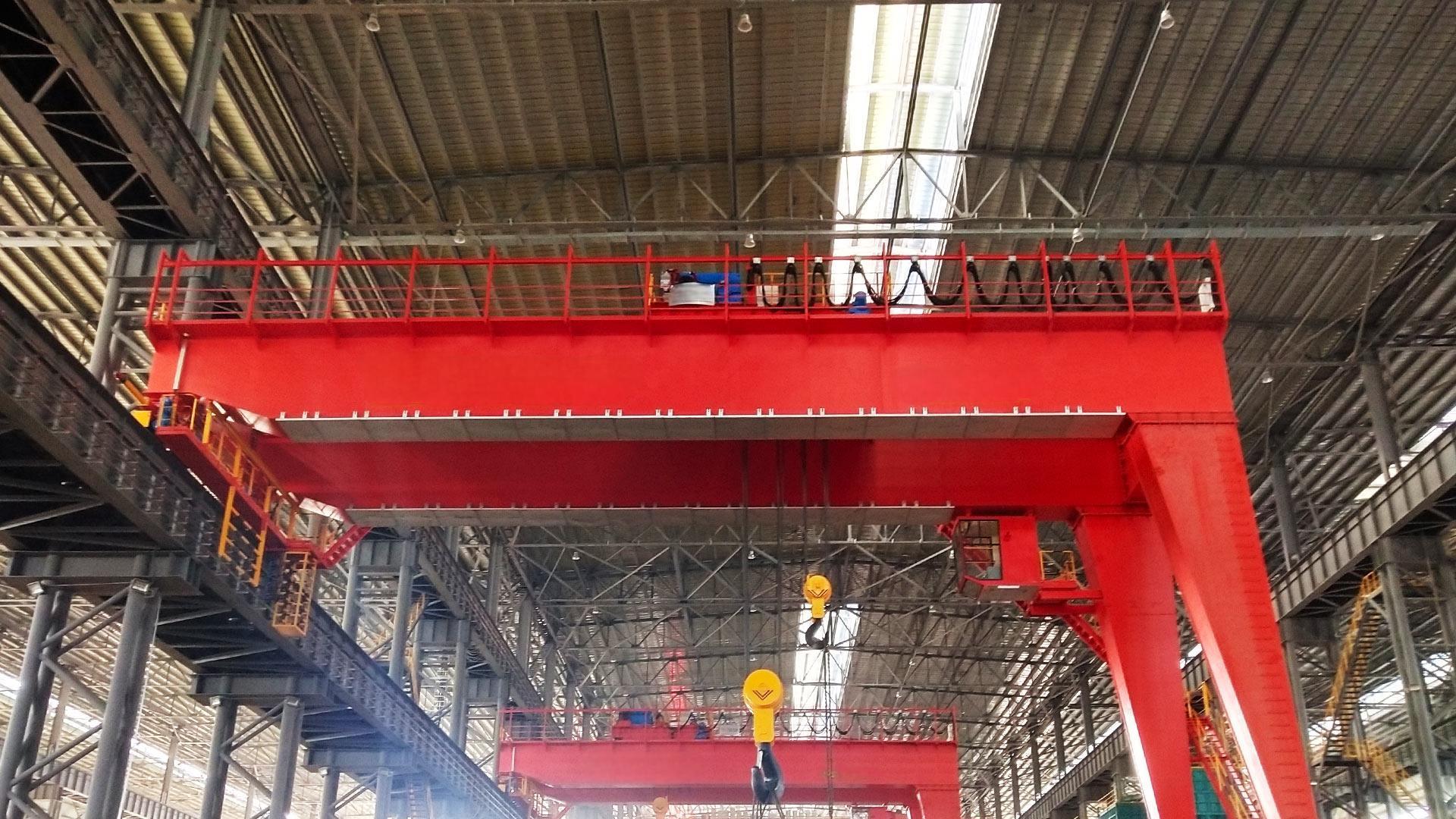

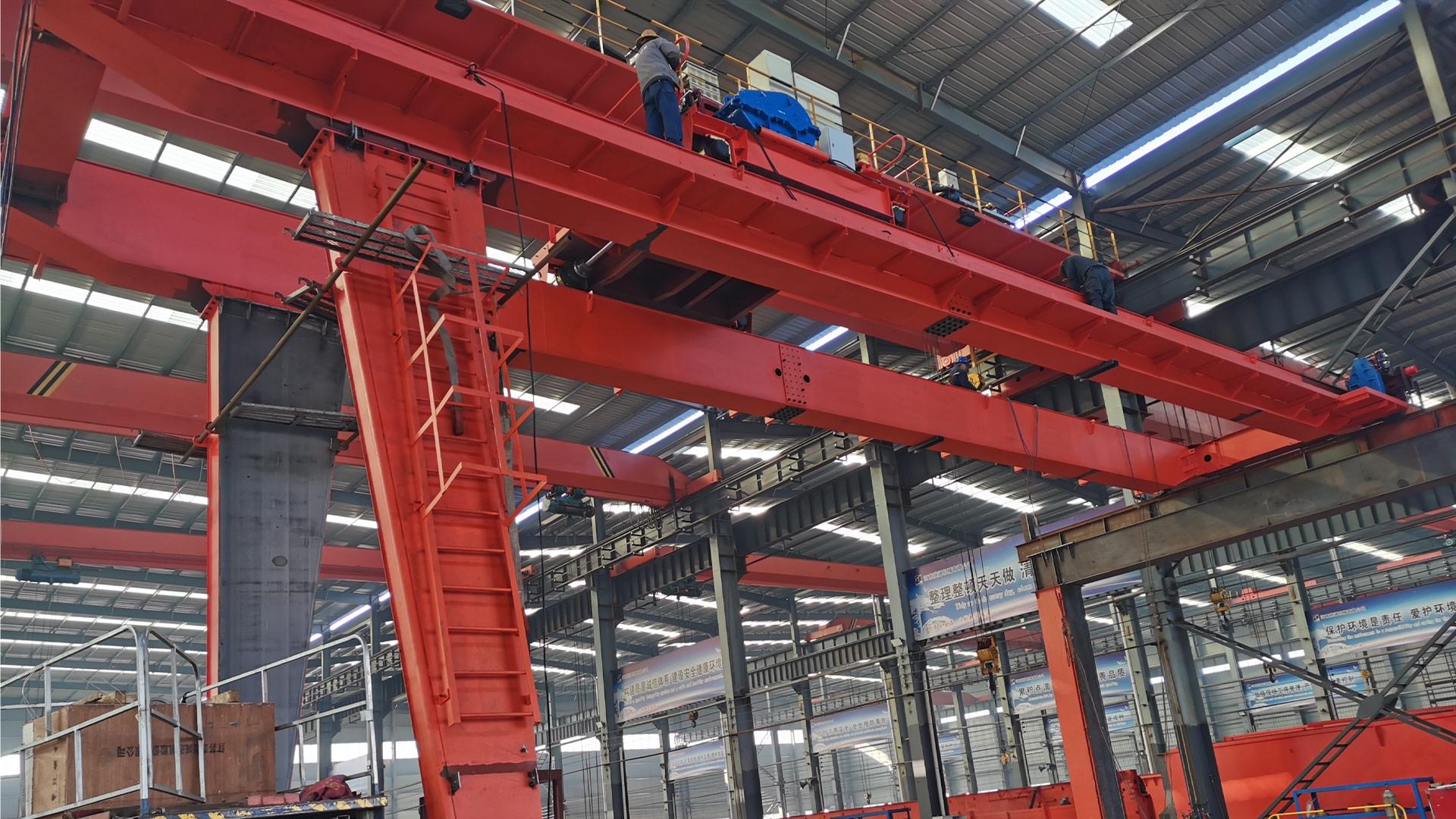

Our Semi-Gantry Crane combines the versatility of an overhead crane with the adaptability of a gantry system, featuring one leg supported on a runway rail and the other on a ground track or floor. Designed for space-constrained environments, it offers cost-effective material handling for medium-duty applications while minimizing structural modifications to existing buildings. Ideal for lifting capacities up to 50 tonnes, this crane excels in scenarios where full runway systems are impractical.

Key Features & Benefits

Space-Saving Design
- Single-leg rail support reduces infrastructure costs and simplifies installation.
- Compact structure maximizes horizontal and vertical workspace utilization.
High Flexibility
- Adjustable span and height to accommodate varying workshop layouts.
- Compatible with both indoor and outdoor operations (optional weatherproofing).
Energy Efficiency & Safety
- Variable frequency drives (VFD) ensure smooth acceleration/deceleration and energy savings (up to 25% less power consumption).
- Dual braking systems, overload protection, and emergency stop functions.
Durability & Low Maintenance
- Reinforced steel construction with hot-dip galvanizing or epoxy coatings (ISO 12944 C4 standard).
- Premium components (ABB/Siemens motors, SKF bearings) for extended service life.

Technical Specifications

Parameter	Specification
Lifting Capacity	1–50 tonnes
Span	5–30 meters (customizable)
Lifting Height	Up to 25 meters
Work Class	FEM 1Bm–3m / ISO A3–A6
Traveling Speed	10–50 m/min (VFD-controlled)
Operating Voltage	380–480V AC, 50/60Hz
Wheel Pressure	≤20 kN (adjustable for building/floor load)
Protection Grade	IP55 (electrical systems), IP54 (controls)
Ambient Temperature	-20°C to +50°C

Customization Options

Weatherproofing: Corrosion-resistant coatings or enclosed trolleys for outdoor use.
Automation: Integration with remote control, anti-sway systems, or IoT monitoring.
Special configurations: Explosion-proof (ATEX/IECEx) or high-temperature variants.
Material handling: Optional grabs, magnets, or vacuum lifters.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, and FEM standards.
Installation: On-site assembly, load testing, and operator training.
Warranty: 18–24 months (extendable) with lifetime technical support.
Maintenance: Fast replacement of wear parts (wheels, cables, bearings).

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective semi-gantry cranes that bridge the gap between overhead and gantry systems. Our cranes are rigorously tested for safety and efficiency, combining European engineering principles with competitive pricing to meet global industrial demands.

Request a Custom Design – Optimize your workspace with a crane built for adaptability and performance!
