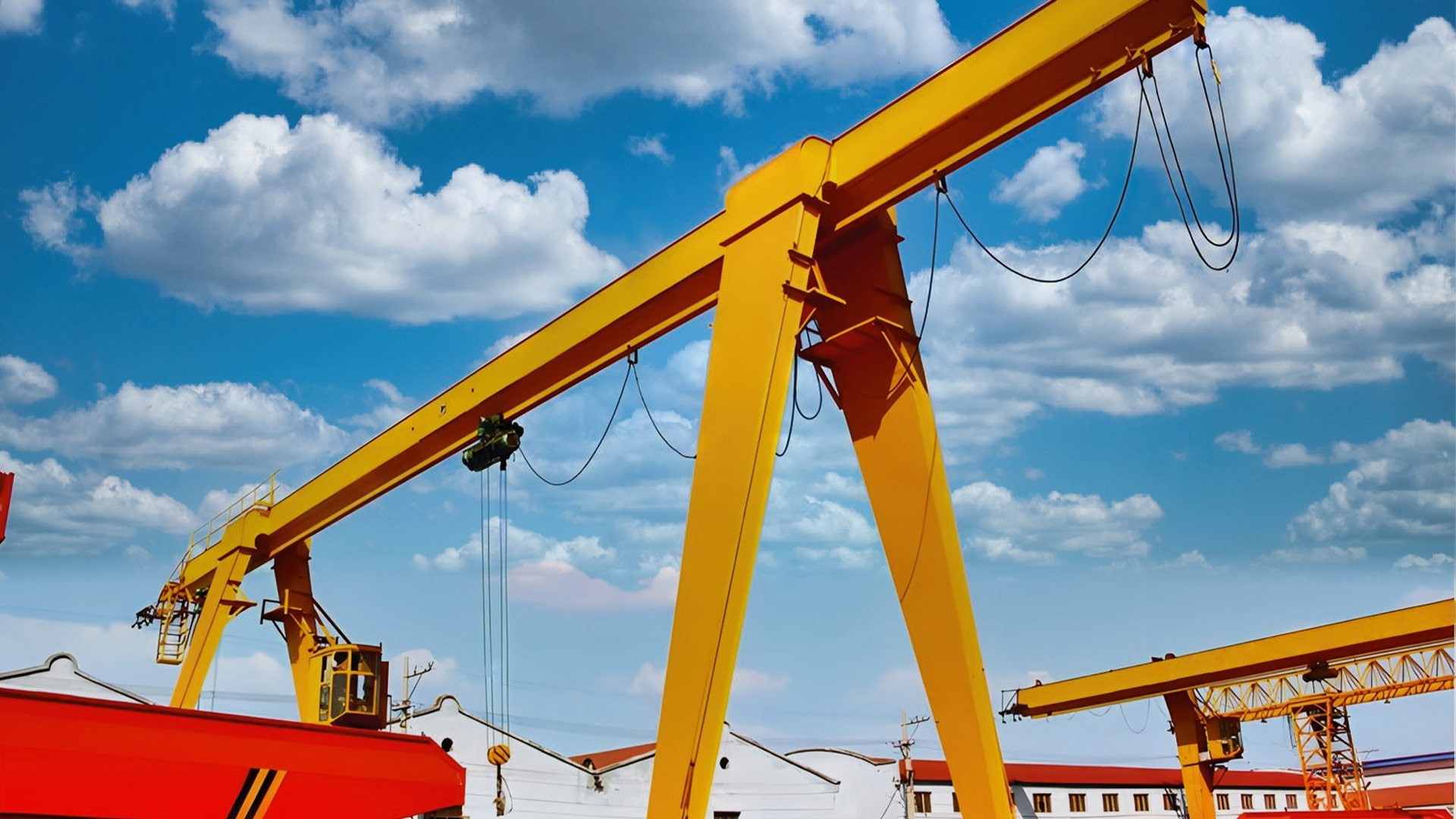

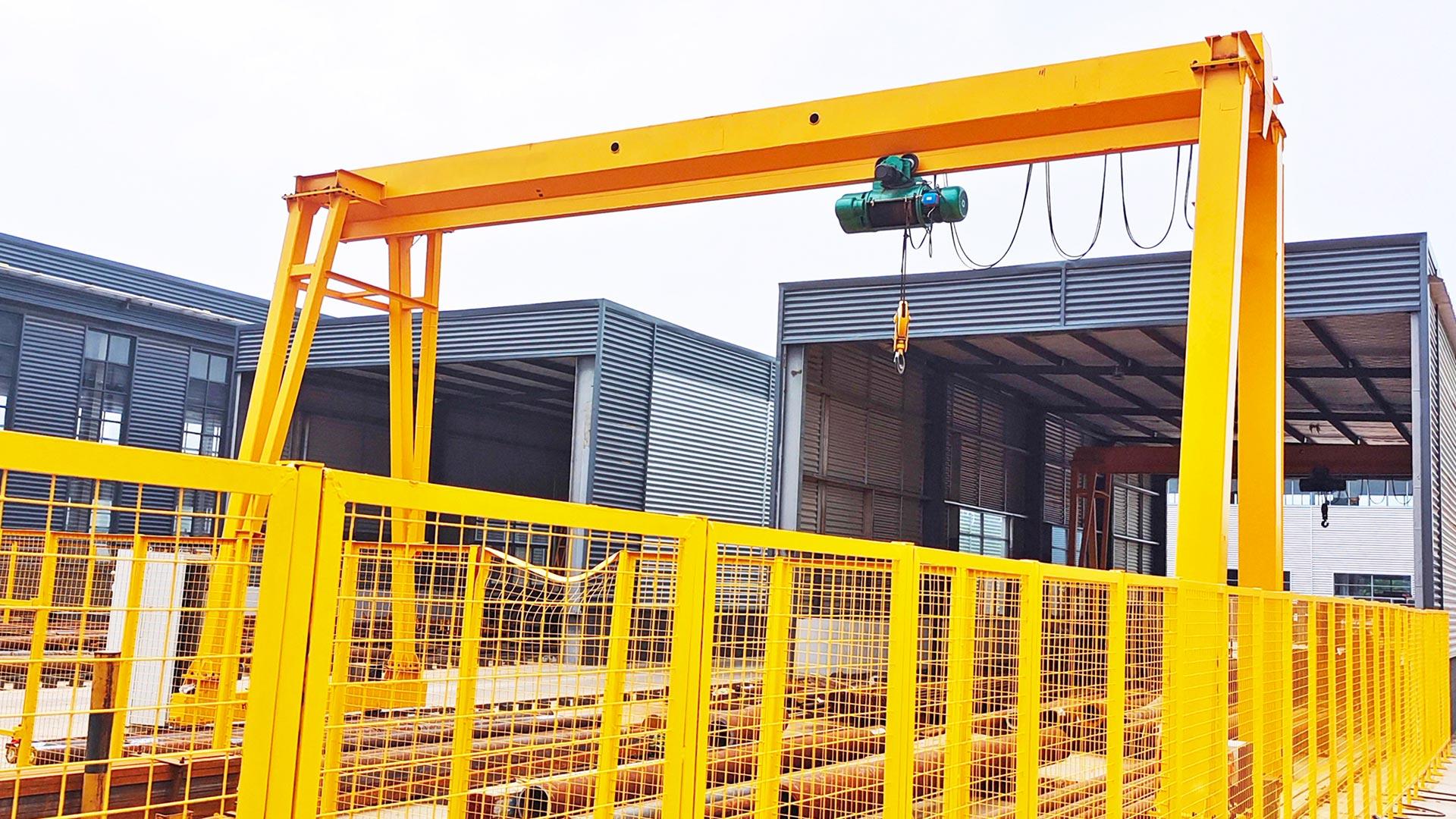

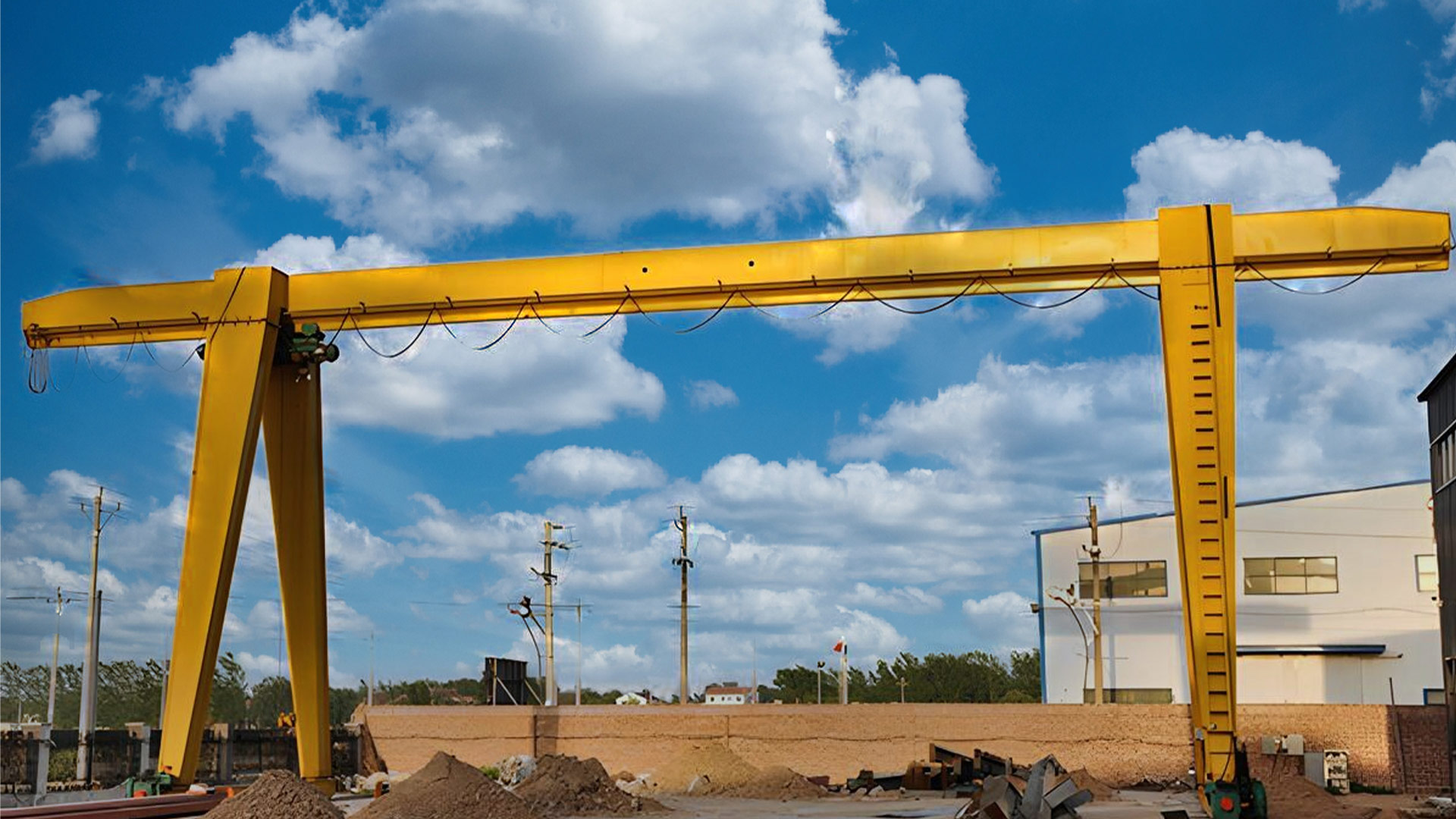

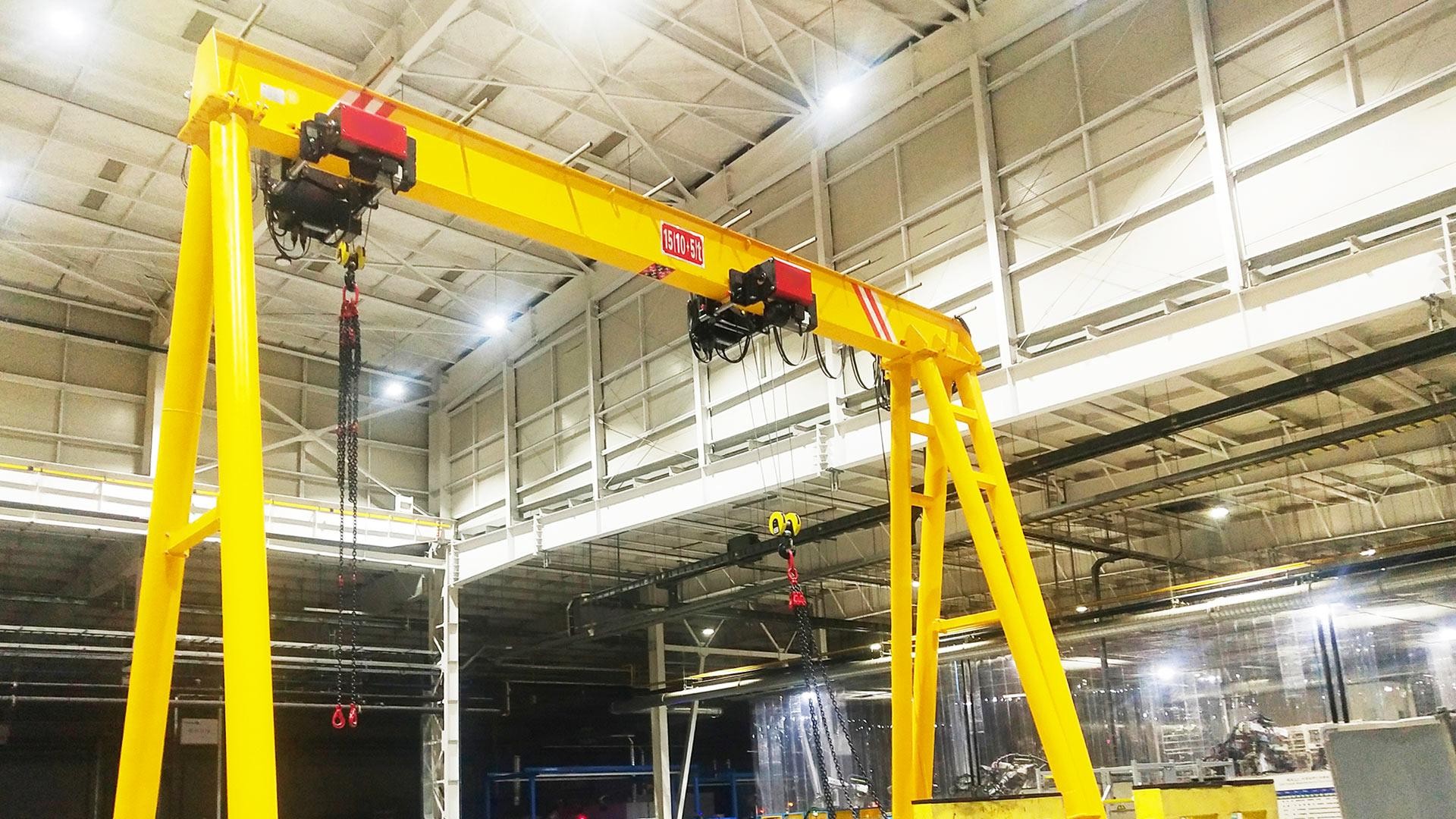

Single Girder Gantry Crane

Product Item : Single Girder Gantry Crane
Category： Gantry Crane
Lightweight Structural Design：High-Strength Steel Frame (30% Lighter) | Corrosion-Resistant Coating
Span & Working Range Flexibility：Span: 5m-50m | Lifting Height: 3m-50m
Outdoor Environmental Resistance：IP55 Protection | Wind Rating: Up to 20m/s
Cost-Efficient Duty Class：FEM A1-A3 (Light to Moderate Duty) | 1-30 T Capacity
INQUIRY EMAIL

Single Girder Gantry Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Outdoor material handling, construction sites, shipping yards, warehouses, steel yards, and logistics hubs requiring flexible, rail-free lifting solutions.

Product Overview

Our Single Girder Gantry Crane is engineered for versatile outdoor and indoor operations, offering a lightweight yet robust design for efficient load handling. With a simplified structure and modular components, it delivers cost-effective performance while minimizing installation time and infrastructure requirements. Ideal for lifting capacities up to 20 tonnes, this crane excels in environments where fixed runway systems are impractical.

Key Features & Benefits

Lightweight & Compact Design
- Single box girder construction reduces self-weight and wheel pressure, lowering foundation costs.
- Low headroom design maximizes vertical workspace utilization.
High Efficiency & Flexibility
- Rail-free operation adapts to uneven terrain or temporary worksites.
- Smooth variable frequency drive (VFD) ensures precise load positioning.
Durability & Low Maintenance
- Hot-dip galvanized or epoxy-coated steel resists corrosion in harsh environments.
- Premium-grade components (ABB/Siemens motors, SKF bearings) extend service life.
Energy-Saving & Safe Operation
- Regenerative braking system recovers energy, reducing power consumption by 20–25%.
- Dual braking mechanisms, overload protection, and emergency stop functions.

Technical Specifications

Parameter	Specification
Lifting Capacity	1–20 tonnes
Span	5–35 meters (customizable)
Lifting Height	Up to 25 meters
Work Class	FEM 1Bm–2m / ISO A3–A5
Traveling Speed	20–60 m/min (VFD-controlled)
Operating Voltage	380–480V AC, 50/60Hz
Wheel Pressure	≤15 kN (adjustable for ground conditions)
Protection Grade	IP55 (electrical systems), IP54 (controls)
Ambient Temperature	-25°C to +50°C

Customization Options

Anti-sway system: Laser-guided positioning for precise load control.
Mobile operation: Rubber-tired or tracked undercarriage for portability.
Special coatings: UV-resistant or anti-corrosion finishes for coastal/industrial areas.
Automation: Integration with remote control or PLC-based automation systems.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, and FEM/ISO certifications.
Installation: Turnkey solutions with site assessment and load testing.
Warranty: 18–24 months (extendable) with lifetime technical support.
Training: On-site operator safety and maintenance training.

Why Choose Us?
As a leading Chinese manufacturer, we combine European engineering standards with cost-efficient production to deliver gantry cranes that excel in flexibility and durability. Our cranes are rigorously tested to ensure compliance with international safety and performance benchmarks.

Request a Custom Quote – Empower your operations with a crane built for adaptability and reliability!
