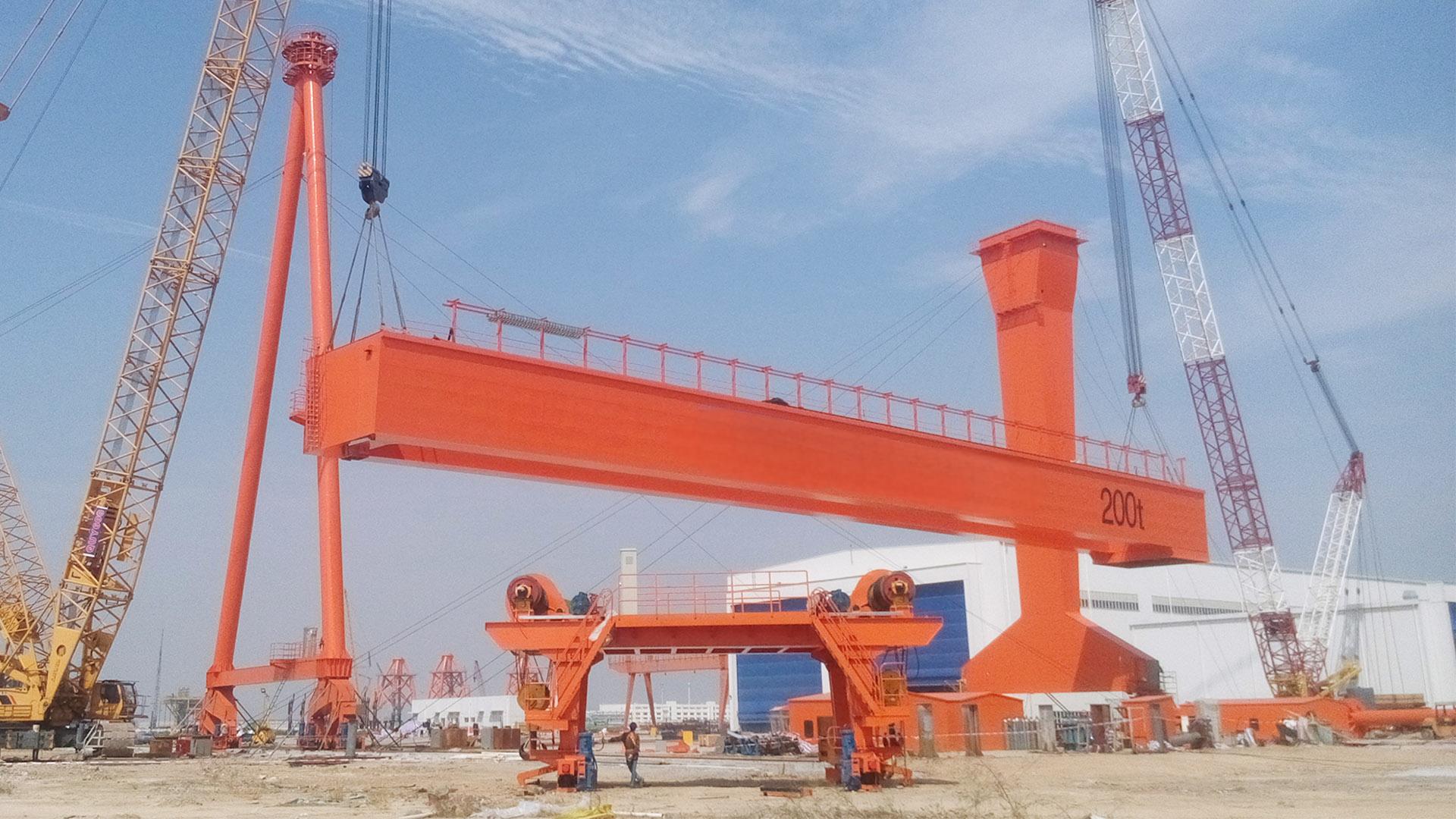

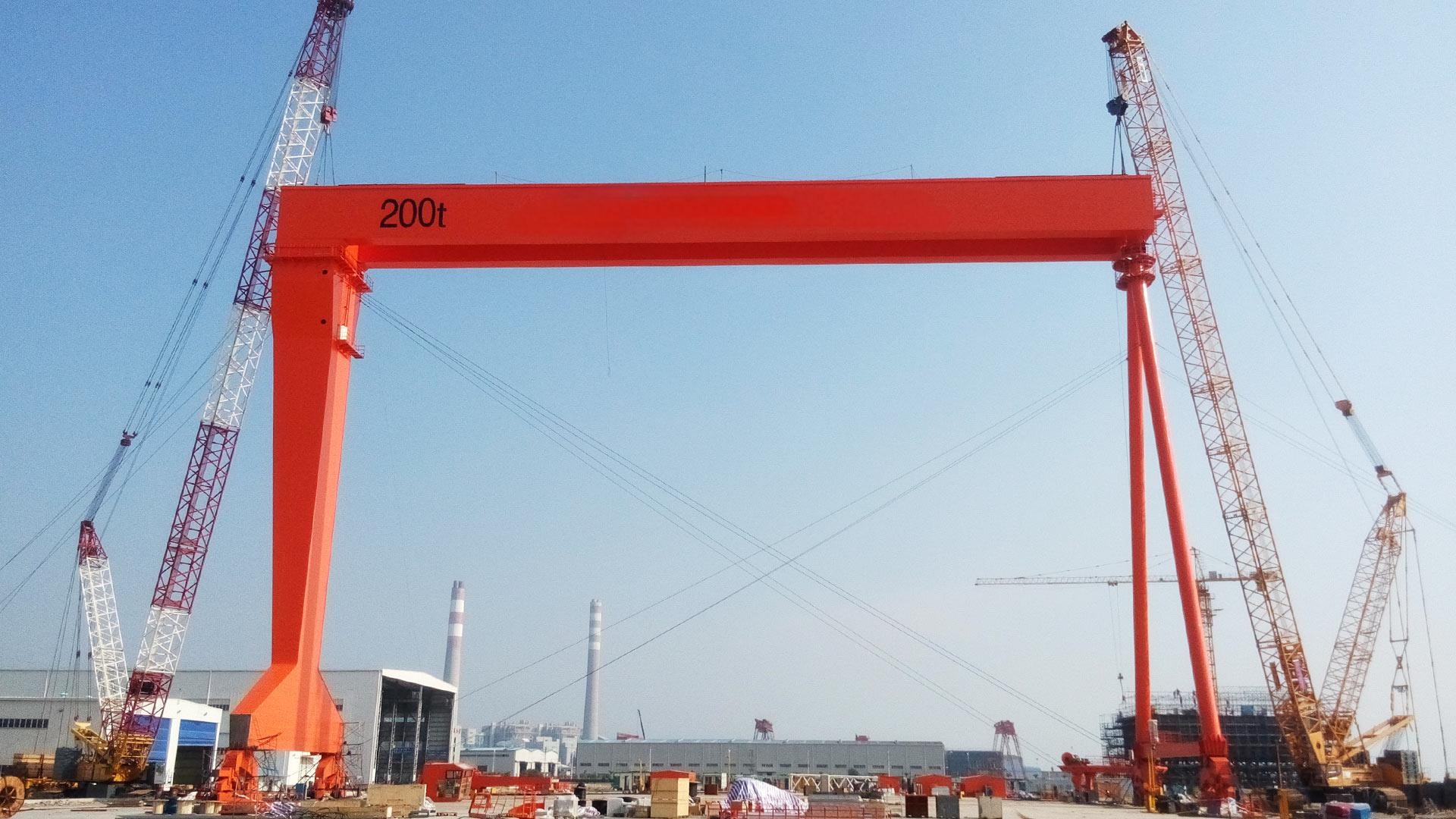

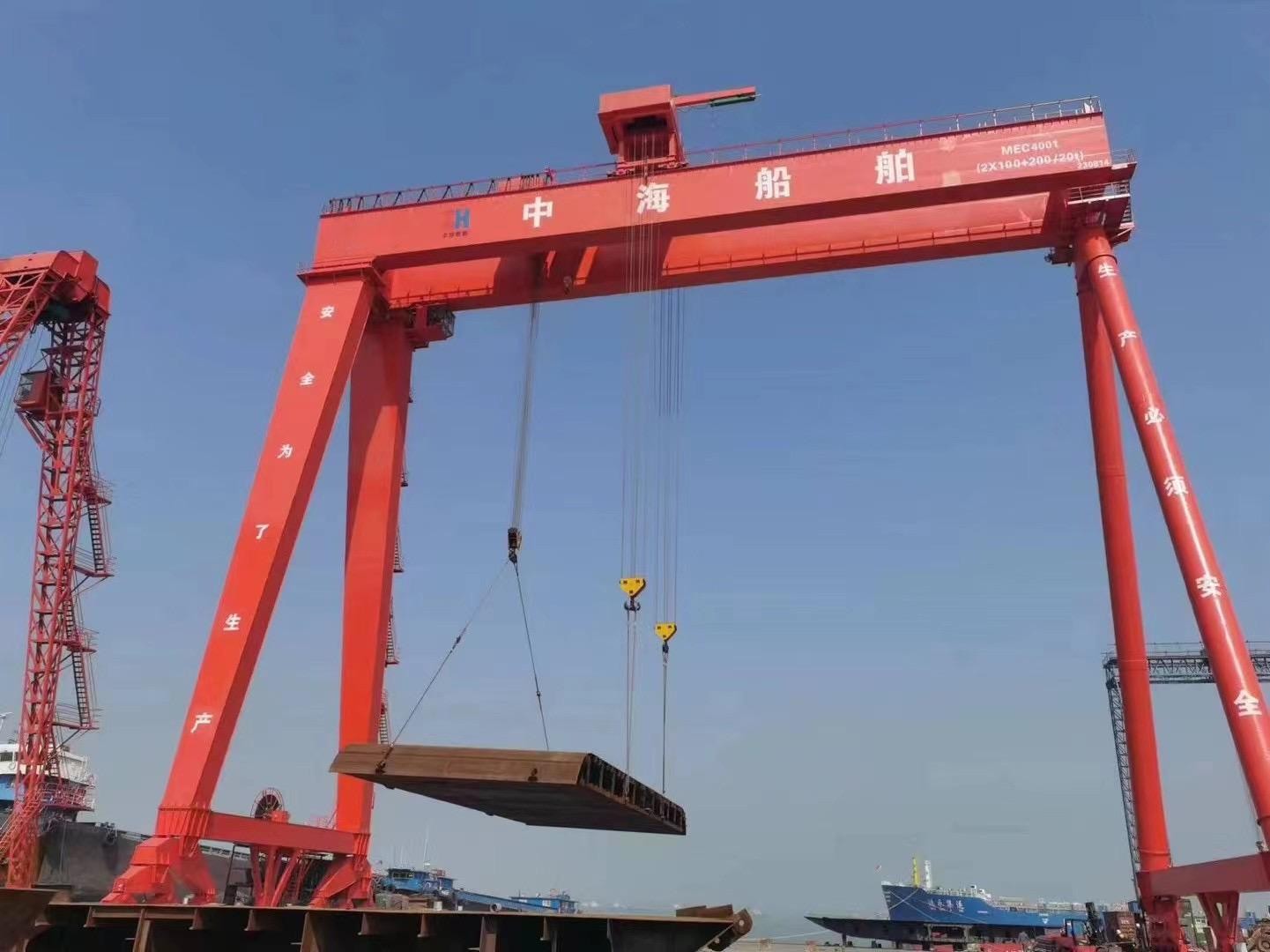

Shipbuilding Gantry Crane | Mega-Section Handling System for Drydock Precision

ISO 14830/FEM 9.782 Certified with ±1mm Synchronized Lifting

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Shipyards, dry docks, marine construction facilities, and heavy industrial sites requiring precision handling of large ship components, such as hull sections, engines, and prefabricated modules.

---

Product Overview

Henan Hengkun’s Shipbuilding Gantry Cranes revolutionize vessel assembly with dual-hoist 3,200T capacity and millimeter-accurate positioning. Engineered for block turnover, keel laying, and superstructure installation, our cranes cut shipbuilding cycles by 35% through patented anti-sway algorithms and virtual drydock integration.

---

Core Engineering Breakthroughs

1. Dual-Girder Heavy-Lift System

• Box Girder Structure: S460ML steel (EN 10025)

  • Span: 40-200m | Height: 80m under hook

• Synchronized Dual Hoists:
  → ±1mm lifting coordination (Laser + CANopen)
  → 200-3,200T capacity range

2. Block Turnover Technology

• Multi-Axis Control:
  → Pitch/Roll/Yaw adjustment (±0.1°)
  → Auto-center of gravity calculation

• Anti-Sway System:
  → Predictive compensation for 100T+ sections
  → <0.5° oscillation at 20m/min

3. Corrosion-Resistant Construction

• Hot-dip galvanized steel and marine-grade epoxy coatings (ISO 12944 C5-M) withstand saltwater, humidity, and UV exposure.

• Sealed IP66-rated motors and electrical systems for harsh environments.

4. Advanced Automation

• PLC control with laser-guided positioning (±5mm accuracy) for alignment of ship blocks.

• IoT-enabled remote monitoring and predictive maintenance capabilities.

5. Customized Mobility

• Rail-mounted or rubber-tired configurations with 360° steering for dockyard flexibility.

• Optional self-propelled systems for repositioning across large shipyards.

6. Safety & Compliance

• Redundant braking systems, overload limiters, and storm-proof anchoring.

• Compliance with DNV GL, ABS, and Lloyd’s Register standards.

---

Technical Specifications

Parameter	Specification
Lifting Capacity	50–1,000 tonnes
Span	30–150 meters (customizable)
Lifting Height	Up to 80 meters
Work Class	FEM 5m / ISO A8
Traveling Speed	2–30 m/min (variable frequency control)
Positioning Accuracy	±5 mm (laser-guided)
Operating Voltage	380–690V AC, 50/60Hz or diesel generator
Wind Resistance	Up to Beaufort Scale 12 (storm-proof design)
Protection Grade	IP66 (critical components)
Ambient Temperature	-20°C to +40°C

---

Shipyard-Specific Features

1. Keel Laying Mode
→ 0.05mm/m straightness laser guidance
→ Hydraulic micro-adjustment jacks

2. Block Turnover Sequence

1. Section lifting with COG auto-calculation

2. 90° rotation with anti-collision scanning

3. Floor contact force control (<5 kN/m²)

4. Stabilized placement (±2mm alignment)

3. Digital Twin Integration
    → Real-time load simulation (FEA validated)
    → Collision avoidance with BIM models

---

Safety & Certification

• Redundant Control: Triple PLC system (SIL 3)

• Structural Monitoring:
  → Fiber Bragg grating sensors (1,000+ points)
  → Stress mapping display in cabin

• Storm Survival:
  → Rail clamps withstand 60m/s winds
  → Auto-park position at Beaufort 10

• Compliance:
  → DNV-ST-0378 (Marine Lifting)
  → IACS UR W22 (Shipyard Structures)
  → ISO 12482-1 (Fatigue Management)

---

Automation Capabilities

▸ Auto-Block Handling：

• RFID-tagged section identification

• Pre-programmed lifting paths
  ▸ Predictive Maintenance：

• Wire rope degradation AI analysis

• Gearbox temperature trend alerts
  ▸ Remote Survey：

• Class society live data access (ABS NDE)

---

Hudong-Zhonghua Shipyard Case
*2×SG-2000T cranes for 23,000 TEU container ships:

• 37% faster block assembly cycle

• 0.3mm positioning accuracy achieved*

---

Global Compliance Package

• Structural: FEM 1.001 Class D (1M+ cycles)

• Electrical: IEC 60204-32 + NEC 70

• Environmental: ISO 14046 Water Footprint

• Cybersecurity: IEC 62443-3-3 SL2

---

Why Choose Us?
As a leading Chinese manufacturer, we deliver marine-grade gantry cranes that meet the strictest shipbuilding industry standards. Our cranes combine European engineering precision with rugged durability, ensuring reliable performance in the most challenging coastal and offshore environments.

Request a Shipyard Solution – Build smarter, faster, and safer with precision-engineered lifting technology!
