Double Girder Gantry Crane

Category： Gantry Crane
Heavy-Duty Lifting Capacity & Span: Capacity: 20T-500T | Span: 15m-50m (Customizable)
Box Girder Structural Integrity: Welded Steel Box Girders (S355JR Grade) | FEM Class M8 (Heavy Duty)
All-Weather Outdoor Performance:IP67 Electrical Systems | Wind Resistance: Up to 25m/s | Salt Spray Corrosion Protection
Smart Motion Control & Safety:Variable Frequency Drive (VFD) Hoists | Anti-Collision Laser Sensors | Overload Cutoff
INQUIRY EMAIL

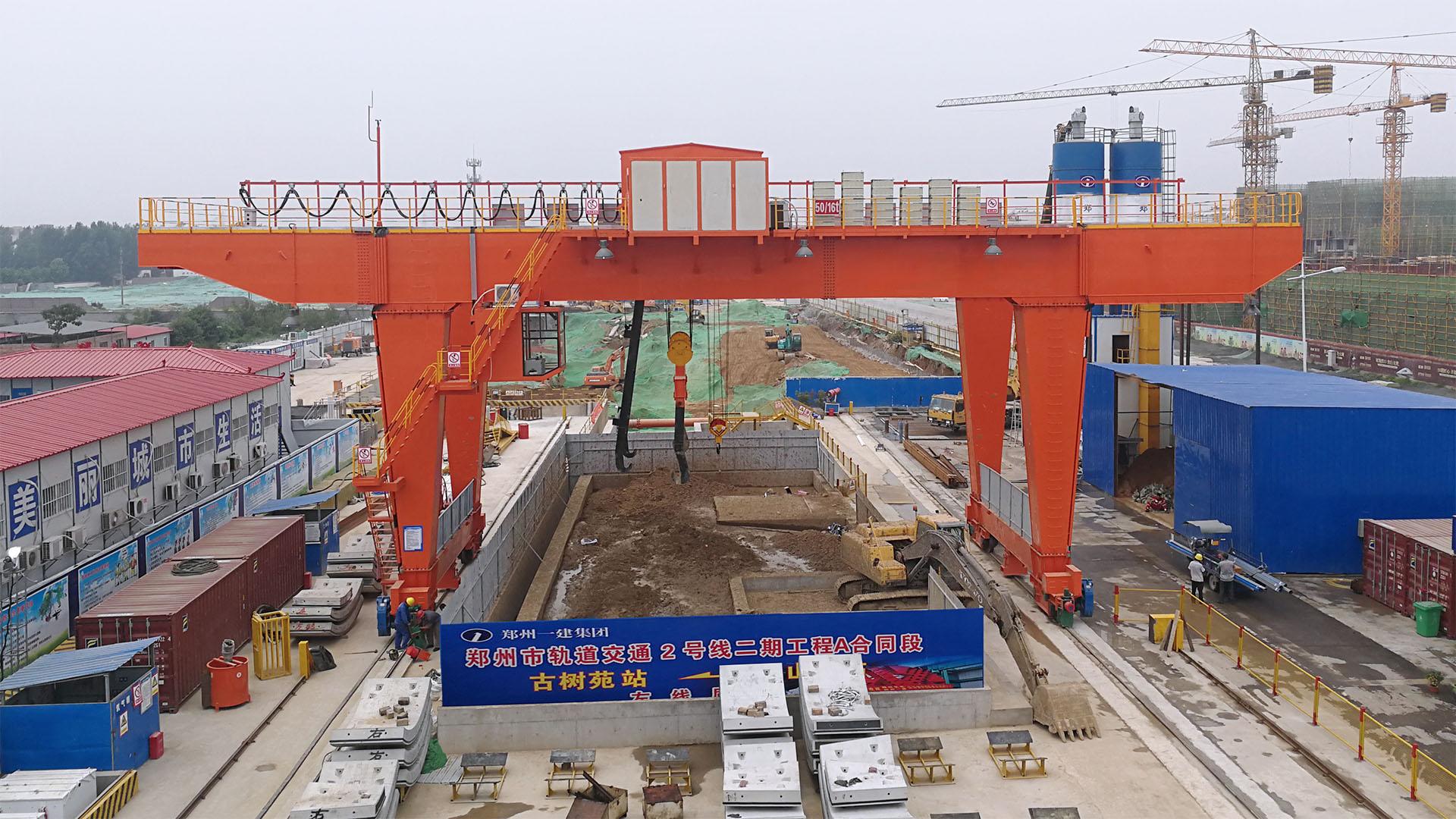

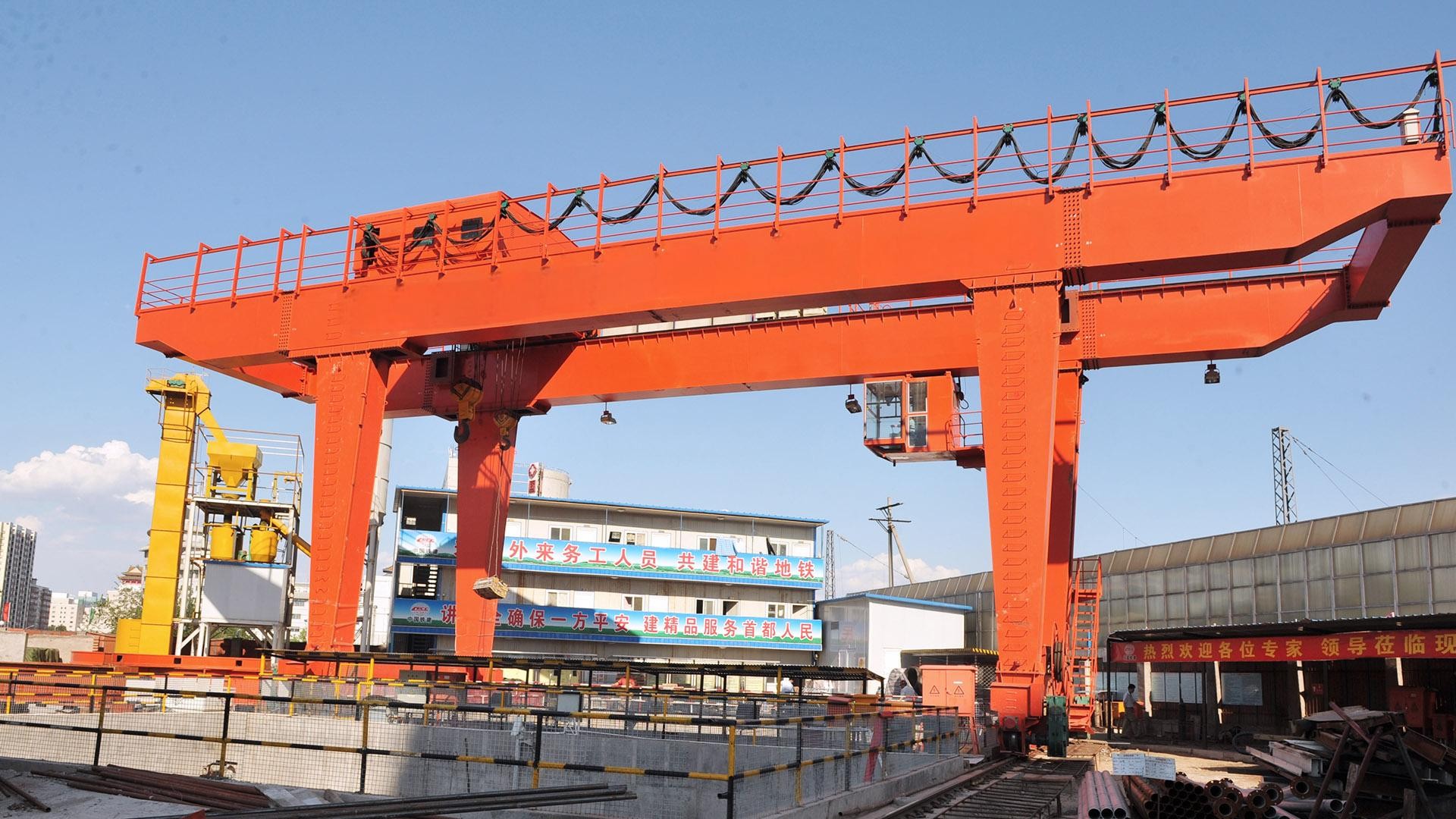

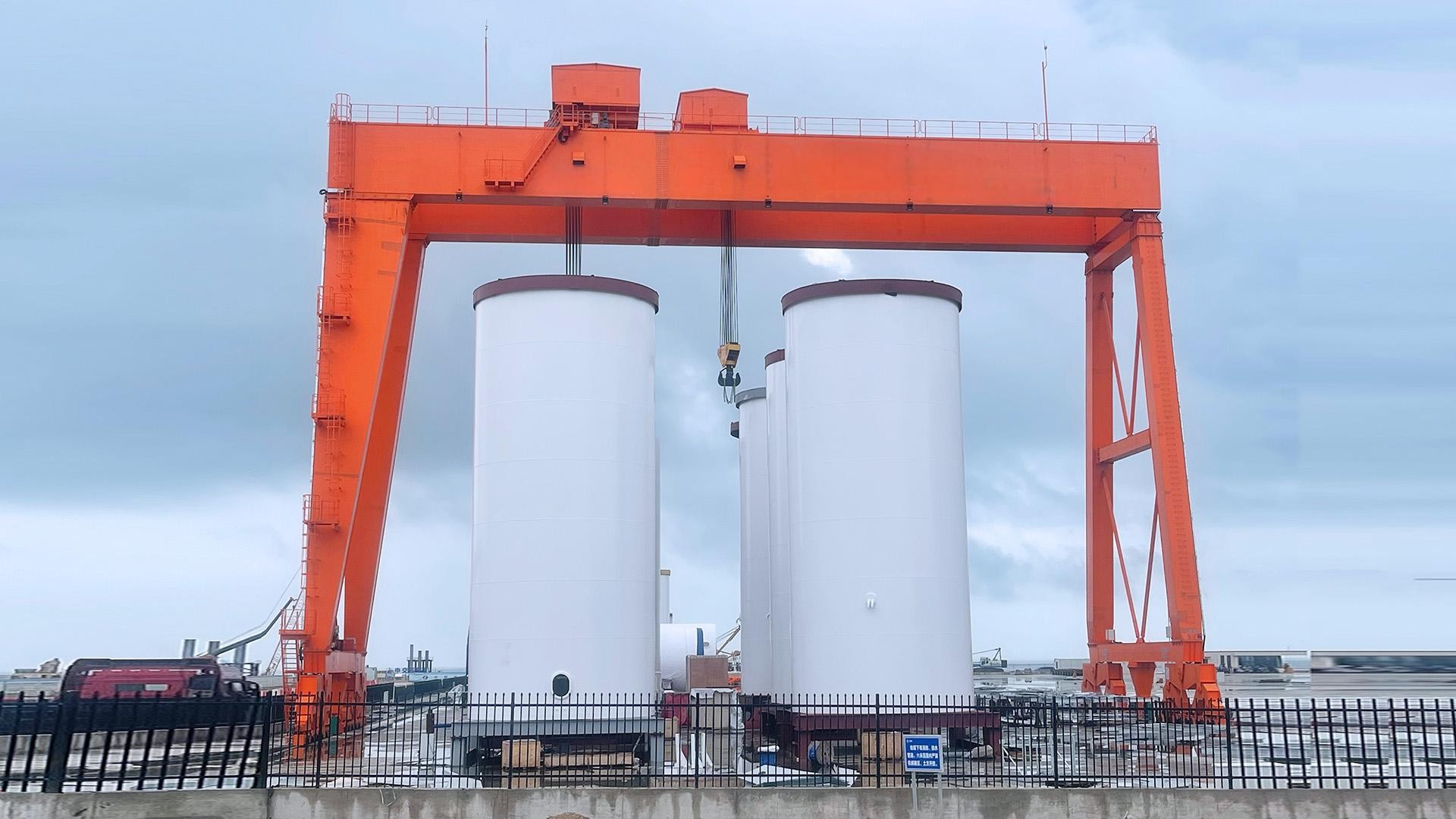

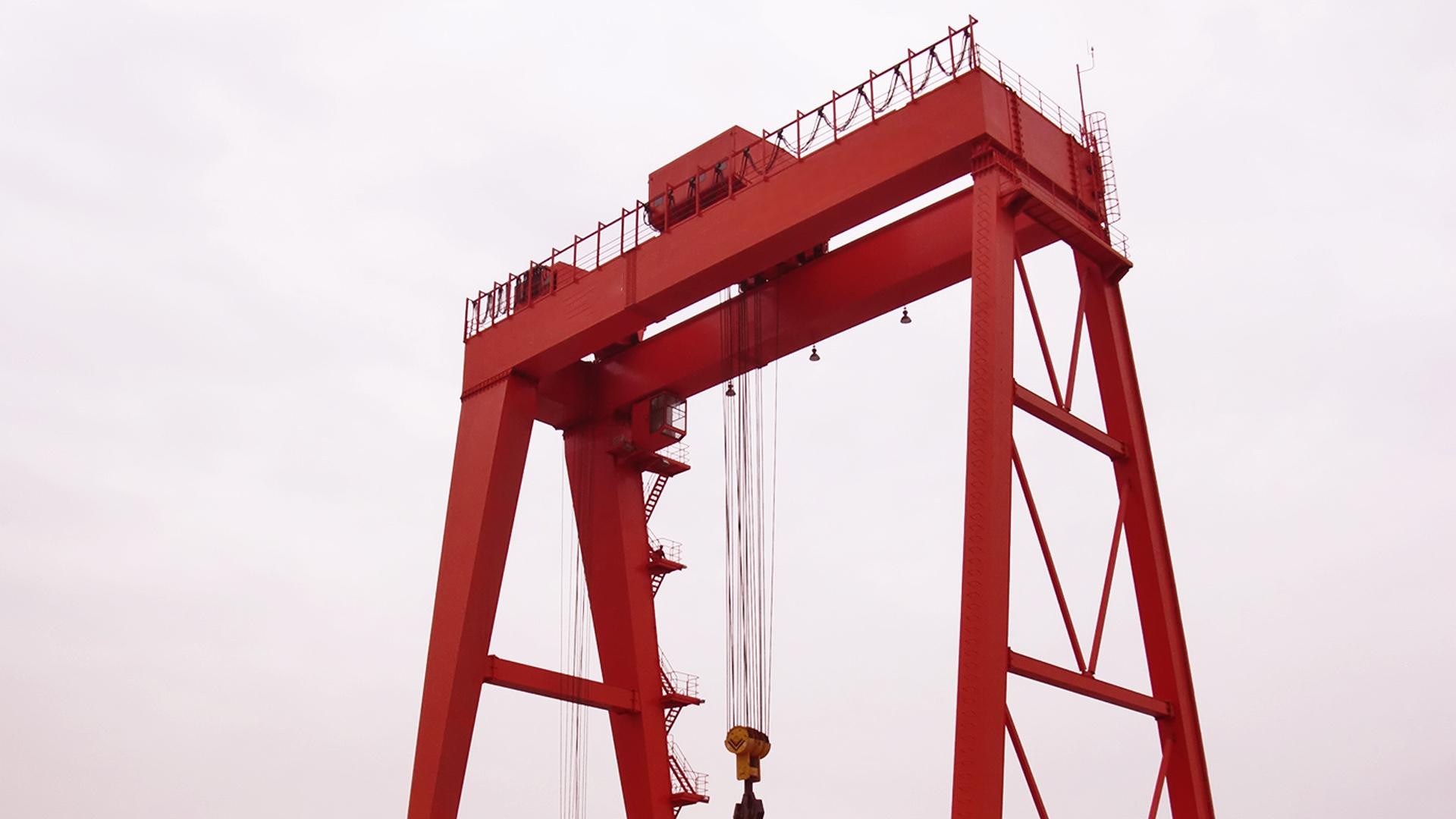

Double Girder Gantry Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Heavy-duty material handling in shipyards, steel mills, construction sites, ports, large-scale logistics hubs, and outdoor industrial facilities requiring high-capacity lifting solutions.

Product Overview

Our Double Girder Gantry Crane is engineered for extreme load capacities and long-span operations, combining robust construction with advanced automation for demanding industrial environments. Designed with European-grade engineering principles, it delivers unmatched stability, precision, and durability for lifting capacities up to 500 tonnes and spans exceeding 50 meters. Ideal for outdoor heavy-lifting tasks, this crane minimizes downtime and maximizes productivity in harsh conditions.

Key Features & Benefits

Heavy-Duty Performance
- Reinforced double box girders (FEM 3m–5m class) ensure minimal deflection under full load.
- Optimized load distribution reduces stress on foundations and rail systems.
Advanced Automation & Safety
- PLC-controlled anti-sway and collision-avoidance systems for precise load positioning.
- Dual braking mechanisms, overload protection, and emergency power backup.
Durability in Harsh Environments
- Hot-dip galvanized or epoxy-coated steel structure (ISO 12944 C5-M corrosion resistance).
- IP66-rated motors and dust-proof electrical panels for extreme outdoor conditions.
Energy Efficiency
- Regenerative braking systems recover energy, reducing power consumption by 20–30%.
- Variable frequency drives (VFD) ensure smooth acceleration and deceleration.
Customizable Design
- Adjustable gantry legs for uneven terrain or rail-mounted configurations.
- Compatibility with specialized hooks, grabs, or lifting magnets.

Technical Specifications

Parameter	Specification
Lifting Capacity	10–500 tonnes
Span	15–80 meters (customizable)
Lifting Height	Up to 50 meters
Work Class	FEM 3m–5m / ISO A6–A8
Traveling Speed	5–30 m/min (VFD-controlled)
Operating Voltage	380–690V AC, 50/60Hz
Wheel Pressure	≤35 kN (adjustable for ground conditions)
Protection Grade	IP66 (hoist), IP65 (control systems)
Ambient Temperature	-30°C to +60°C

Customization Options

Explosion-proof design: ATEX/IECEx-certified components for hazardous zones.
Automation integration: Laser-guided positioning, RFID load tracking, or remote IoT monitoring.
Special coatings: Abrasion-resistant or high-temperature coatings for steel mills.
Operator interfaces: Cabin control, wireless remote, or fully autonomous operation.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 45001, FEM, and GOST certifications.
Turnkey solutions: Site assessment, CAD design, and installation by certified engineers.
Warranty: 24 months (extendable) with 24/7 global technical support.
Lifetime maintenance: Fast delivery of OEM spare parts and on-site servicing.

Why Choose Us?
As a leading Chinese manufacturer, we blend European engineering standards with cost-effective production to deliver heavy-duty gantry cranes that outperform competitors. Rigorously tested for safety and reliability, our cranes are trusted by global industries for critical lifting operations.

Request a Custom Solution – Elevate your heavy-lifting capabilities with precision-engineered technology!
