Container Straddle Carrier

Product Item : Container Straddle Carrier
Category： Port Equipment
High Maneuverability：Turning Radius: ≤8m | Stacking Height: 1-over-4
Smart Load Handling：Auto Twistlocks | ISO Container Detection | ±10mm Alignment
Hybrid Power Efficiency：Diesel-Electric | 25% Fuel Savings | Regenerative Braking
All-Weather Resilience：IP67 Electronics | 15m/s Wind Rating | Anti-Skid Tires
INQUIRY EMAIL

Container Straddle Carrier

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Container terminals, intermodal yards, port logistics centers, and large-scale freight hubs requiring high-efficiency container stacking, transport, and handling.

Product Overview

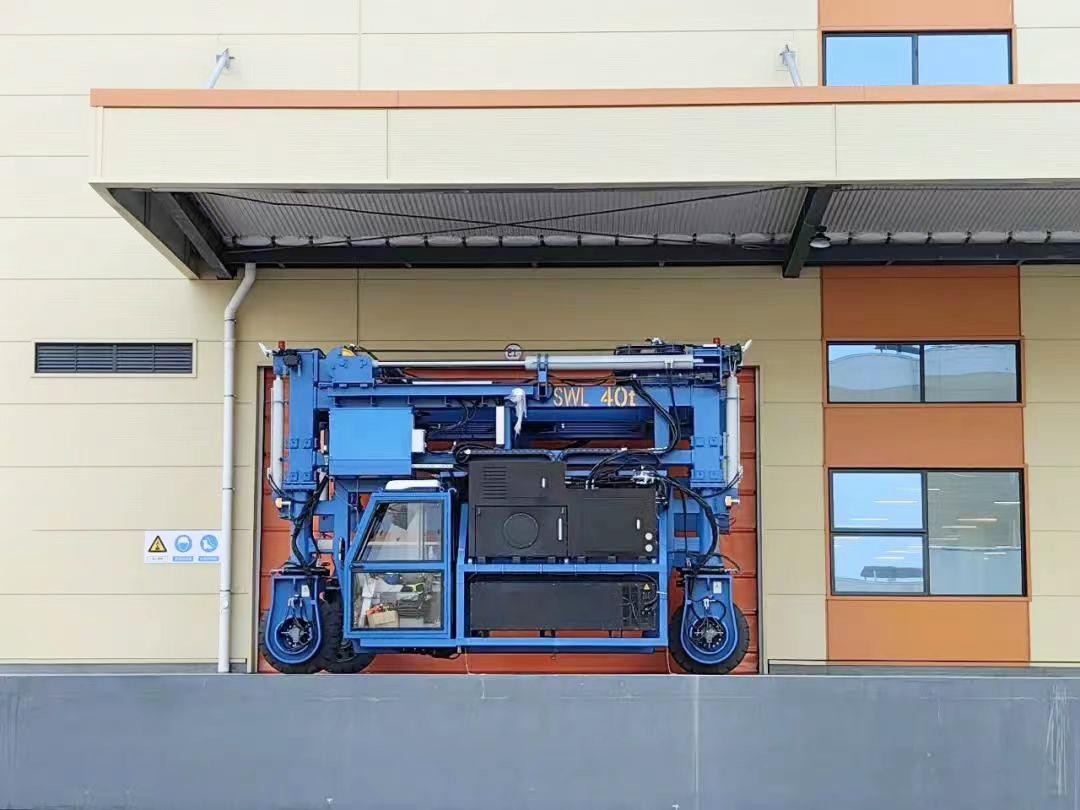

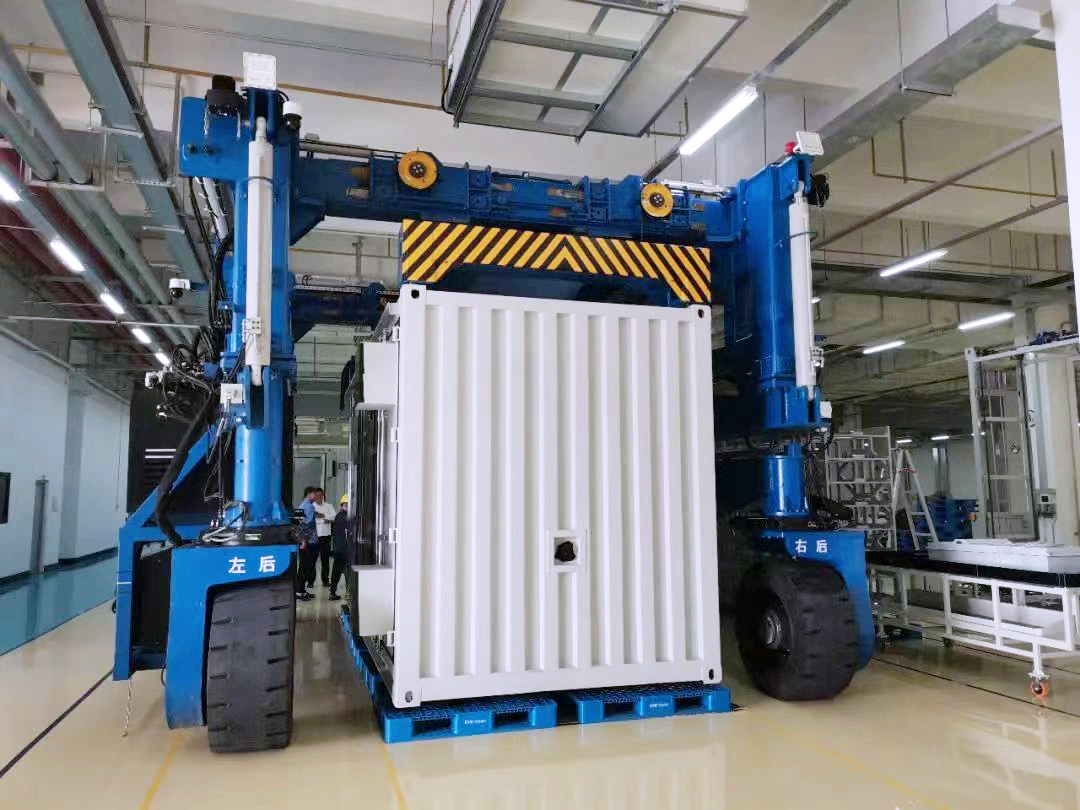

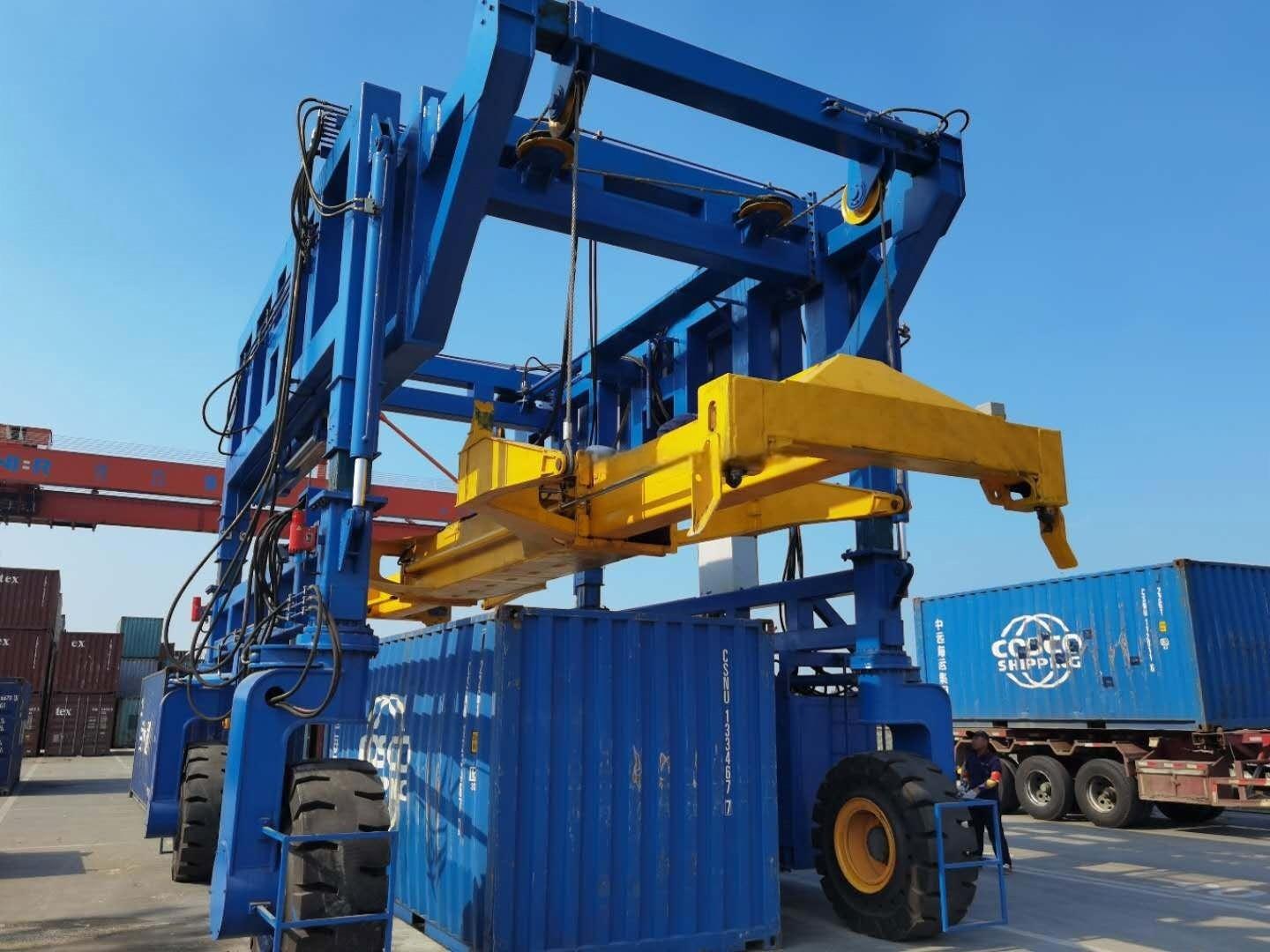

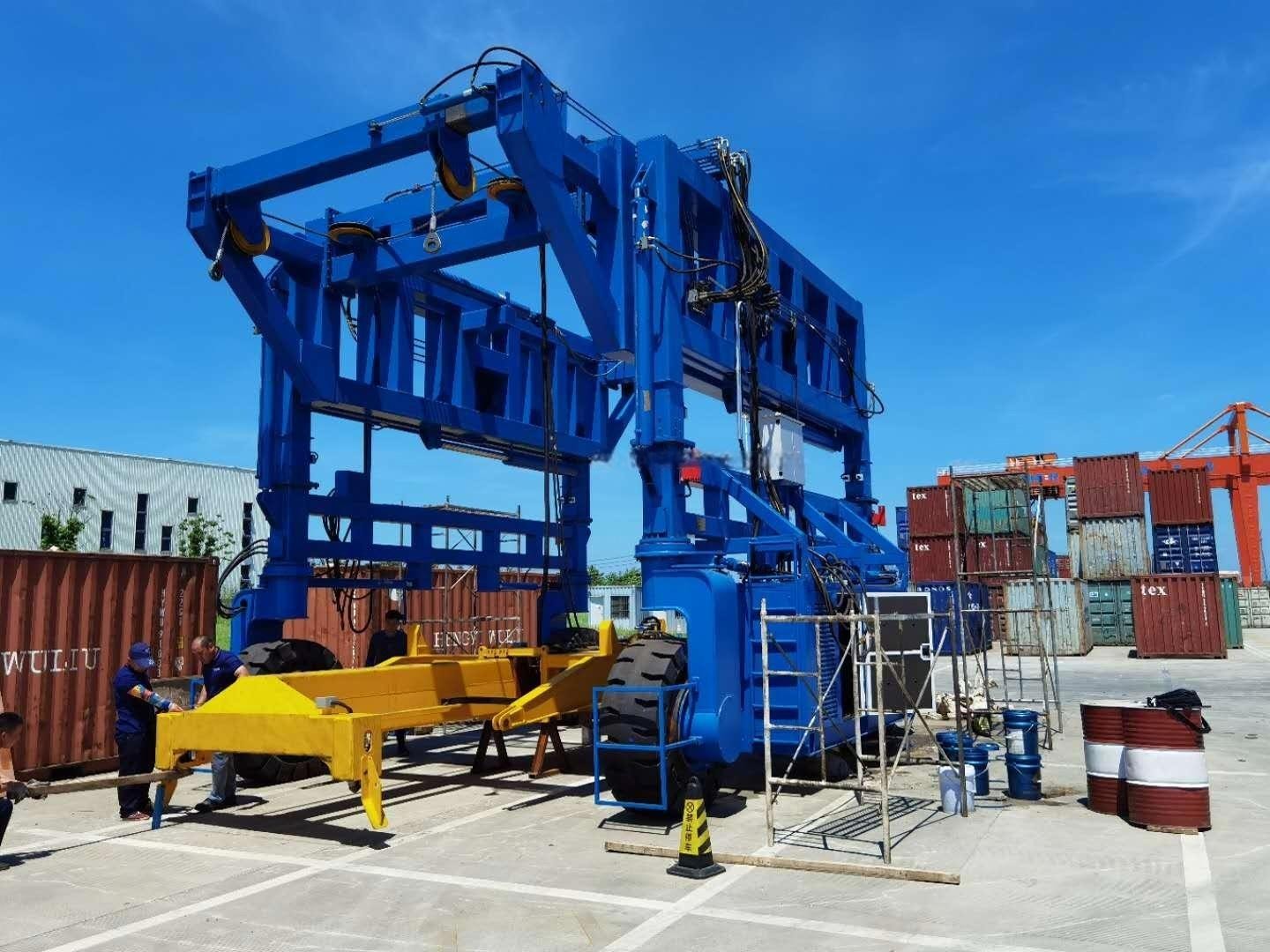

Our Container Straddle Carrier is a mobile, self-propelled lifting machine designed for rapid container handling and flexible yard management. Engineered to straddle and lift ISO-standard containers (20ft, 40ft, 45ft), it streamlines operations by combining stacking, lifting, and short-distance transportation into a single unit. Ideal for busy ports and logistics parks, this carrier reduces reliance on multiple machines, cuts operational costs, and boosts throughput by up to 40%.

Key Features & Benefits

High Maneuverability
- 360° steering and articulated chassis enable tight turns in congested yards.
- Rubber-tired mobility eliminates the need for fixed infrastructure like rails.
Dual-Height Stacking
- Stack containers 1-over-2 or 1-over-3 (depending on model), optimizing yard space.
- Laser-guided spreader alignment (±5mm accuracy) for safe and precise stacking.
Energy Efficiency
- Hybrid power systems (diesel-electric or full electric) reduce fuel consumption by 25–35%.
- Regenerative braking recovers energy during deceleration.
Durability & Safety
- Reinforced steel frame with ISO 12944 C5-M corrosion-resistant coatings.
- Anti-collision sensors, overload protection, and emergency stop systems.
Smart Automation
- Optional integration with Terminal Operating Systems (TOS) for fully automated workflows.
- Remote diagnostics and predictive maintenance via IoT-enabled telematics.

Technical Specifications

Parameter	Specification
Lifting Capacity	30–50 tonnes (ISO containers)
Max. Stacking Height	1-over-3 (up to 4 containers high)
Lifting Speed	5–15 m/min (variable frequency control)
Traveling Speed	25–40 km/h (unloaded), 15–25 km/h (loaded)
Spreader Compatibility	20ft, 40ft, 45ft, twin-lift, or telescopic
Engine Power	200–400 kW (diesel/hybrid) or 150–300 kW (electric)
Turning Radius	≤8 meters
Ground Clearance	300–500 mm (adjustable)
Protection Grade	IP65 (electrical systems)
Ambient Temperature	-25°C to +60°C

Customization Options

Automation levels: Manual, semi-automatic, or fully autonomous (AGV mode).
Power systems: Lithium battery packs, hydrogen fuel cells, or hybrid configurations.
Special features: Container weighing systems, RFID tracking, or cold storage compatibility.
Safety add-ons: 360° cameras, blind-spot detection, or automated obstacle avoidance.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, and port safety certifications.
Training: On-site operator training and maintenance workshops.
Warranty: 24 months (extendable) with 24/7 technical support.
Lifetime support: OEM spare parts and software updates.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective straddle carriers that combine European engineering standards with rugged reliability. Our carriers are certified for global port operations, offering unmatched flexibility and efficiency for container logistics.

Request a Demo – Transform your yard operations with intelligent, agile container handling!
