Ship-to-Shore Crane

Product Item : Ship-to-Shore Crane
Category： Port Equipment
Ultra-Wide Outreach: 65m Outreach | 25-Row Vessel Coverage
High-Speed Hoisting: 150m/min Hoist Speed | Dual-Trolley Automation
AI-Powered Positioning: ±5mm Container Alignment | Anti-Sway Gyro | LiDAR Vessel Scan
Storm-Resistant Structure: 30m/s Wind Rating | ISO 4302 Seismic Design | Rail Clamps
INQUIRY EMAIL

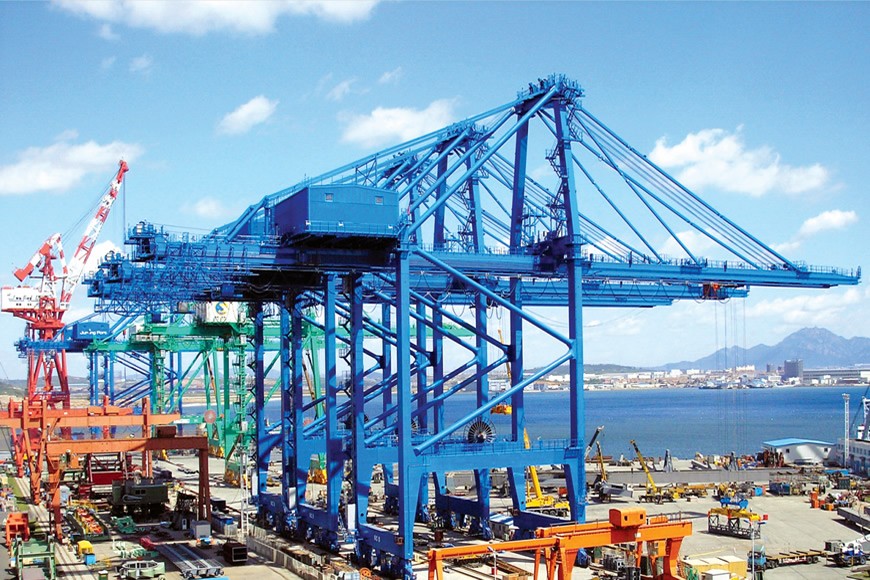

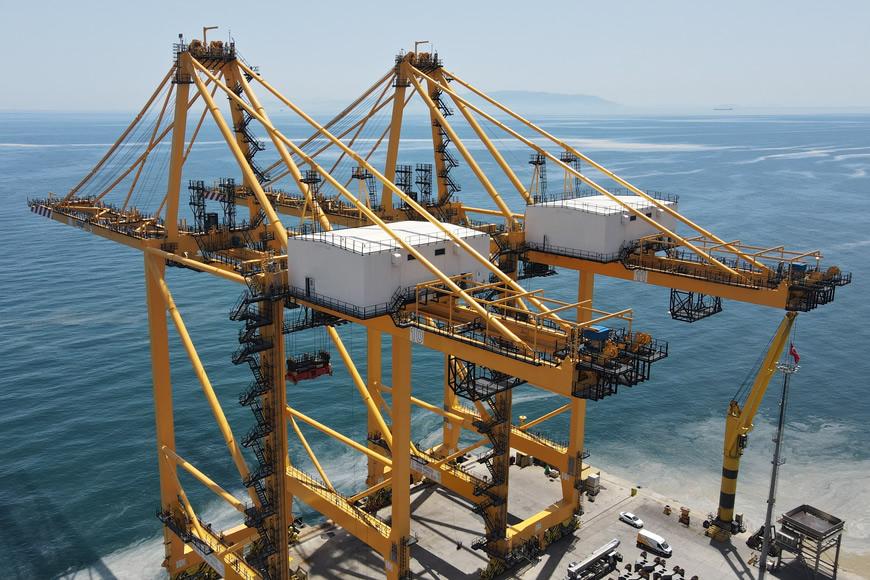

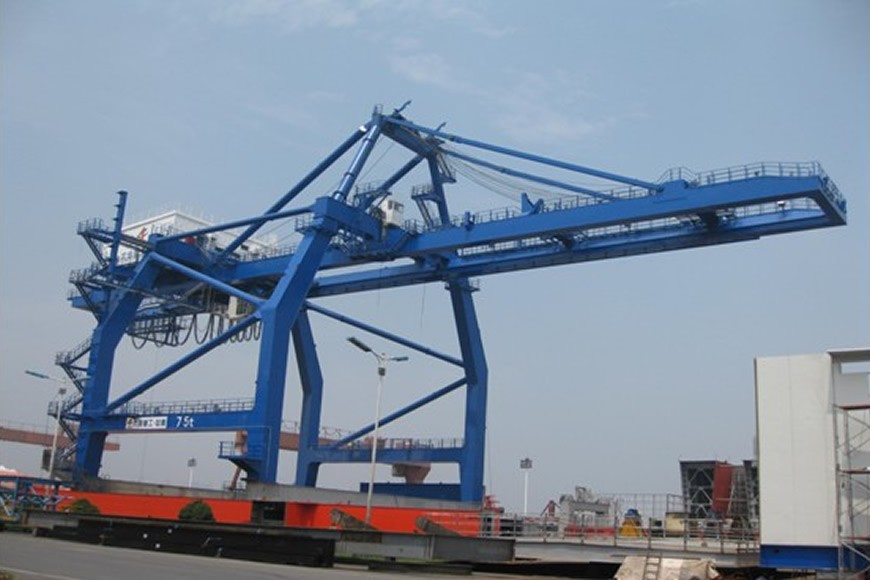

Ship-to-Shore (STS) Container Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Container terminals, deep-water ports, and intermodal hubs requiring high-efficiency loading/unloading of ultra-large container vessels (ULCVs).

Product Overview

Our Ship-to-Shore (STS) Container Crane is engineered for rapid, precise, and reliable container handling between vessels and quays. Designed to service the latest generation of mega-ships (24,000+ TEU), this crane combines long outreach, high-speed operation, and advanced automation to maximize port productivity while minimizing vessel turnaround time. Built to withstand harsh marine environments, it ensures durability, safety, and compliance with global port standards.

Key Features & Benefits

Ultra-Long Outreach & High Lifting Capacity
- Outreach up to 72 meters to accommodate ULCVs with 24+ container rows.
- Dual-lift spreaders for handling two 20ft or one 40ft/45ft container simultaneously (up to 65 tonnes).
Automation & Precision
- AI-powered TOS integration for optimized container sequencing and minimal idle time.
- Laser-guided positioning (±3mm accuracy) and anti-sway technology for safe cargo handling.
Energy Efficiency & Sustainability
- Regenerative power recovery reduces energy consumption by 25–30%.
- Hybrid power options (shore power + diesel generator) for emission-sensitive ports.
Durability in Marine Environments
- Corrosion-resistant steel with ISO 12944 C5-M coatings and saltwater-proof electrical systems (IP68).
- Storm-proof design withstands winds up to Beaufort Scale 12.
Safety & Compliance
- Redundant braking systems, overload protection, and collision avoidance sensors.
- Compliant with IEC, ISO 4301, and OCIMF standards.

Technical Specifications

Parameter	Specification
Lifting Capacity	30–65 tonnes (under spreader)
Outreach	40–72 meters (customizable)
Backreach	18–30 meters
Lifting Height	45–55 meters (above rail)
Hoisting Speed	50–180 m/min (VFD-controlled)
Trolley Speed	70–240 m/min (dual-motor drive)
Gantry Speed	25–45 m/min
Power Supply	6.6–10 kV AC, 50/60Hz + optional diesel backup
Protection Grade	IP68 (marine-critical components)
Ambient Temperature	-30°C to +50°C

Customization Options

Spreader types: Twin-lift, telescopic, or reefer-container compatible.
Automation levels: Semi-automatic, remote-controlled, or fully autonomous (AGV integration).
Eco-upgrades: Shore power priority mode, solar panel integration, or noise reduction packages.
Safety systems: 3D obstacle detection, automatic twistlock verification, or emergency storm anchoring.

Service & Certifications

Global certifications: CE, ISO 9001, ISO 14001, IEC 60204, and OCIMF compliance.
Turnkey solutions: Port layout design, installation, and operator training.
Warranty: 24 months (extendable) with 24/7 remote diagnostics.
Lifetime support: Predictive maintenance plans and OEM spare parts supply.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cutting-edge STS cranes that meet the demands of modern mega-ports. Our cranes blend European engineering precision with robust marine-grade construction, ensuring seamless integration into global supply chains.

Request a Port Efficiency Analysis – Transform your terminal with cranes built for scale, speed, and sustainability!
