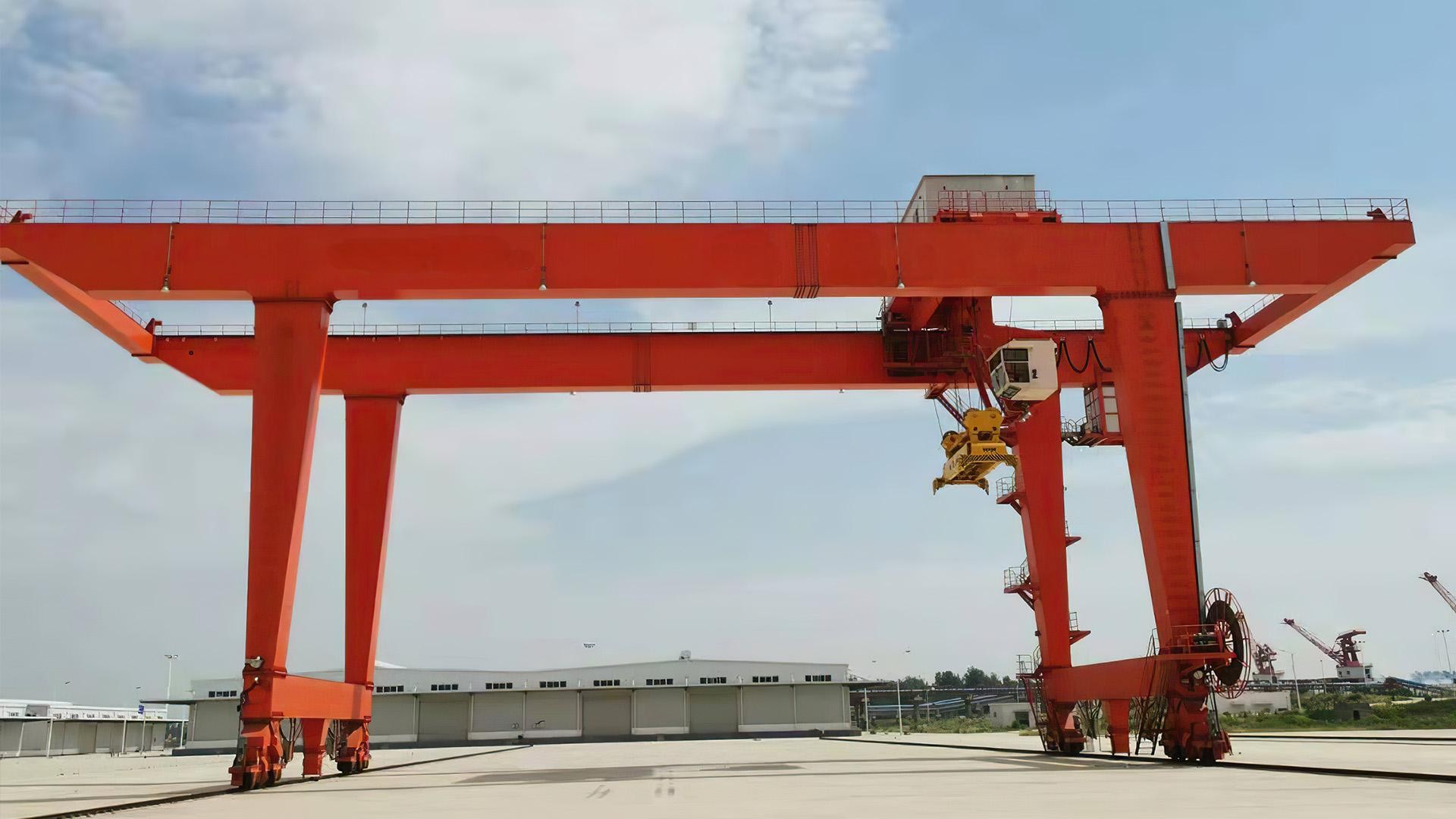

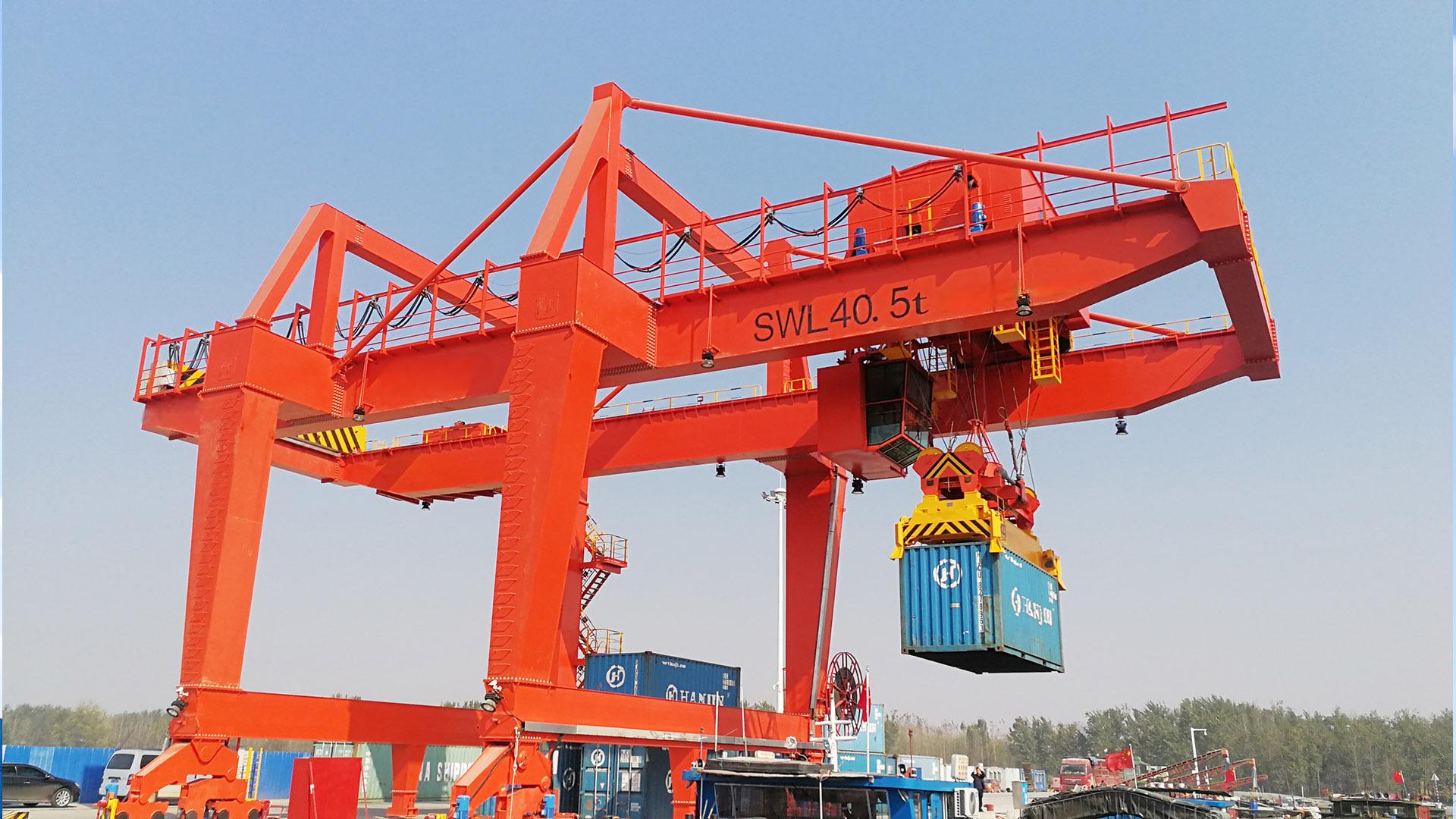

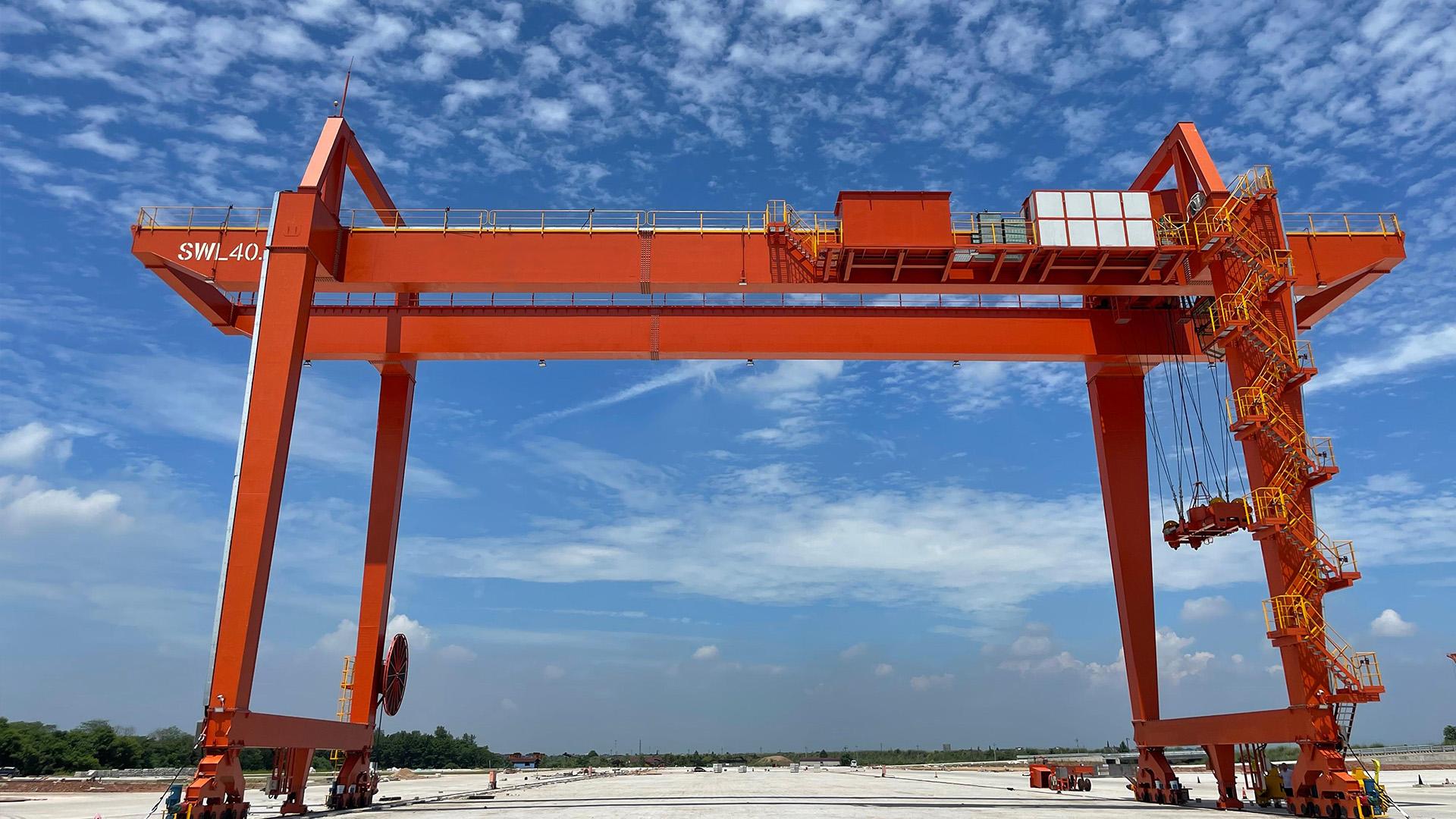

Rail-Mounted Gantry Crane (RMG)

Product Item : Rail-Mounted Gantry Crane (RMG)
Category： Gantry Crane
Span: 20m-50m | Stacking: 1-over-5 (6-high Containers)
Automated Container Recognition:OCR/TIR System | Twistlock Auto-Engagement | ±10mm Positioning Accuracy
All-Weather Rail Alignment System:Laser Rail Tracking | Anti-Derailment Sensors | Wind Resistance: 25m/s
Energy-Efficient Drive & Recovery:Regenerative Braking (15% Energy Recovery) | Hybrid Diesel-Electric Option
INQUIRY EMAIL

Rail-Mounted Gantry Crane (RMG)

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Container terminals, intermodal yards, rail freight hubs, and large-scale logistics centers requiring high-precision, automated handling of shipping containers and heavy cargo.

Product Overview

Our Rail-Mounted Gantry Crane (RMG) is engineered for high-efficiency container stacking and heavy-load transportation in rail-based logistics systems. Featuring automated operation, robust steel construction, and advanced positioning technology, it ensures seamless integration with rail networks and warehouse management systems. Designed for 24/7 operation in harsh outdoor environments, this crane maximizes throughput while minimizing operational costs.

Key Features & Benefits

Automation & Precision
- Laser-guided positioning and GPS/RTG synchronization for millimeter-accurate container handling.
- Integration with Terminal Operating Systems (TOS) for fully automated workflows.
Heavy-Duty Performance
- Reinforced double girder structure (FEM 5m class) for lifting capacities up to 100 tonnes (including spreaders).
- High-strength wheels and rails designed for continuous heavy-duty cycles.
Energy Efficiency
- Regenerative braking systems recover energy during lowering/stopping, reducing power consumption by 25–30%.
- Hybrid power options (electric + diesel) available for remote locations.
Durability & Safety
- Corrosion-resistant coatings (ISO 12944 C5-M) for coastal or industrial environments.
- Anti-collision systems, storm-proof anchoring, and seismic-resistant designs.

Technical Specifications

Parameter	Specification
Lifting Capacity	30–100 tonnes (with spreader)
Span	20–50 meters (rail gauge customizable)
Lifting Height	Up to 40 meters (under spreader)
Work Class	FEM 5m / ISO A8
Traveling Speed	50–120 m/min (variable frequency control)
Operating Voltage	380–690V AC, 50/60Hz or diesel generator
Rail Gauge	6–35 meters (adjustable)
Protection Grade	IP66 (motors), IP65 (control systems)
Ambient Temperature	-30°C to +60°C

Customization Options

Automation levels: Semi-automatic, fully automated, or remote-controlled operation.
Spreader types: ISO container, twin-lift, or bulk material grabs.
Special coatings: Anti-corrosion, UV-resistant, or fireproof finishes.
Hybrid power: Diesel-electric or battery-powered options for off-grid use.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, FEM, and IEC standards.
Turnkey solutions: Rail installation, automation integration, and operator training.
Warranty: 24 months (extendable) with 24/7 remote diagnostics.
Maintenance: Predictive maintenance plans and OEM spare parts supply.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective RMG solutions that combine European engineering precision with rugged durability. Our cranes are certified for global operations, ensuring reliability in extreme conditions and compliance with port/railway safety regulations.

Request Automation Solutions – Transform your logistics efficiency with precision-engineered RMG technology!
