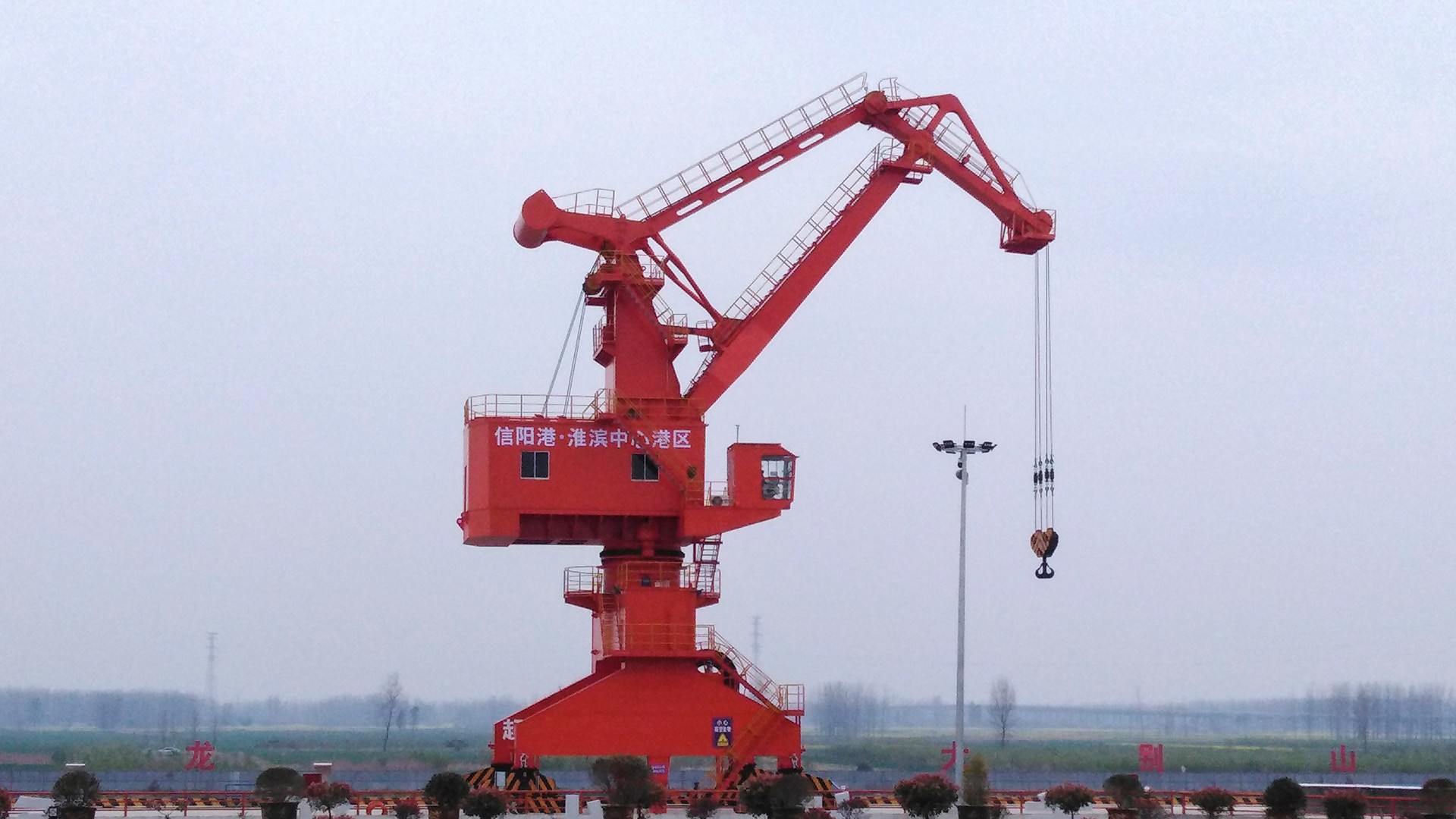

Portal Crane

Product Item : Portal Crane
Category： Port Equipment
Heavy Rail Stability：Track Gauge: 6m-35m | Crane Weight-to-Load Ratio: ≤2.5:1
Storm-Resistant Design：Operational Wind: 20m/s | IP68 Motors | Rail Clamps (EN 15011)
Rapid Attachment Swap：Grabs/Spreaders: ≤8min Change | ISO 4306 Interchange System
High-Span Heavy Load：Span: 20m-60m | Capacity: 10T-100T
INQUIRY EMAIL

Portal Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Port terminals, container yards, bulk material handling stations, rail freight hubs, and industrial logistics centers requiring high-efficiency lifting and transfer of containers, bulk cargo, or heavy loads.

Product Overview

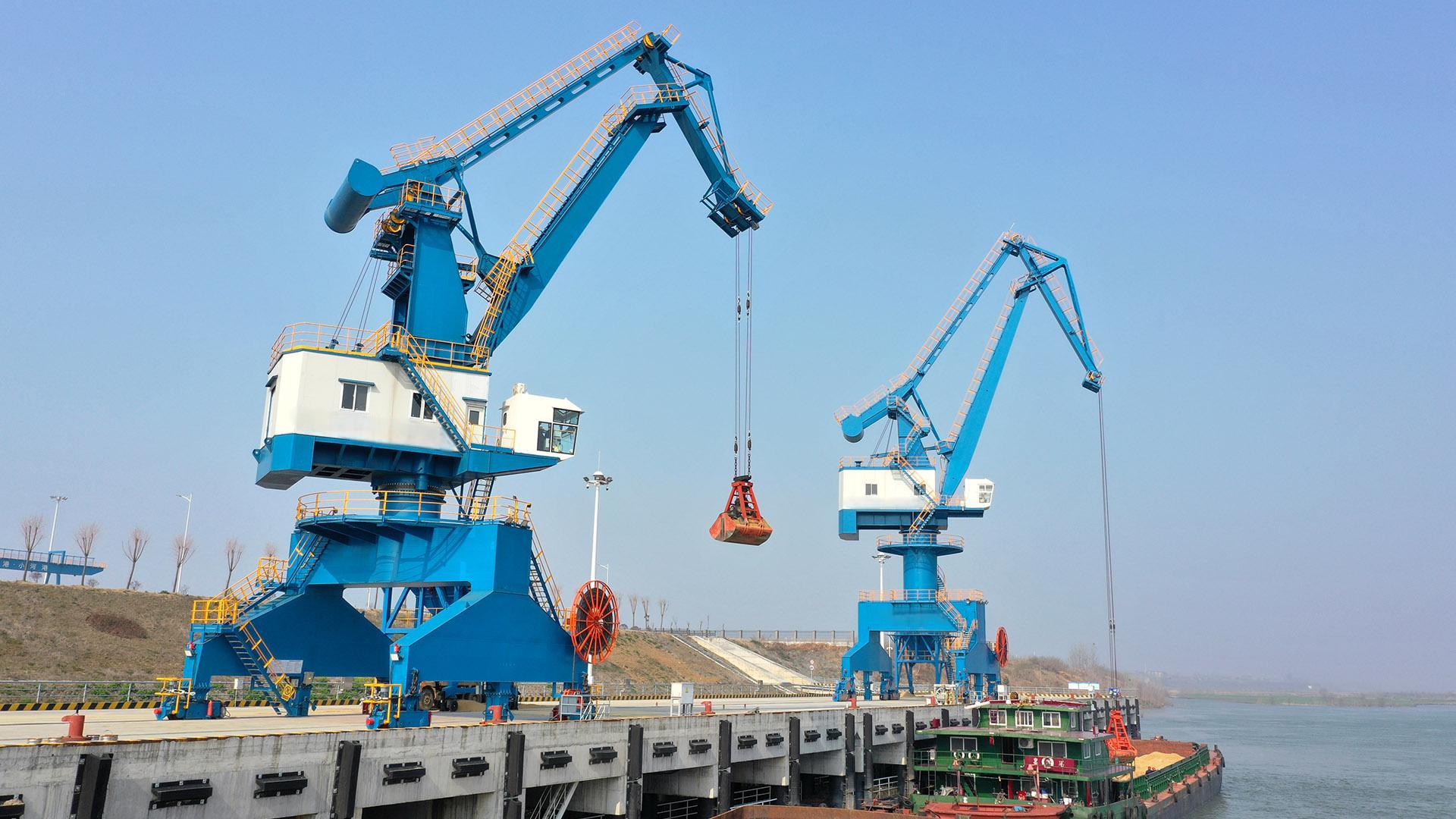

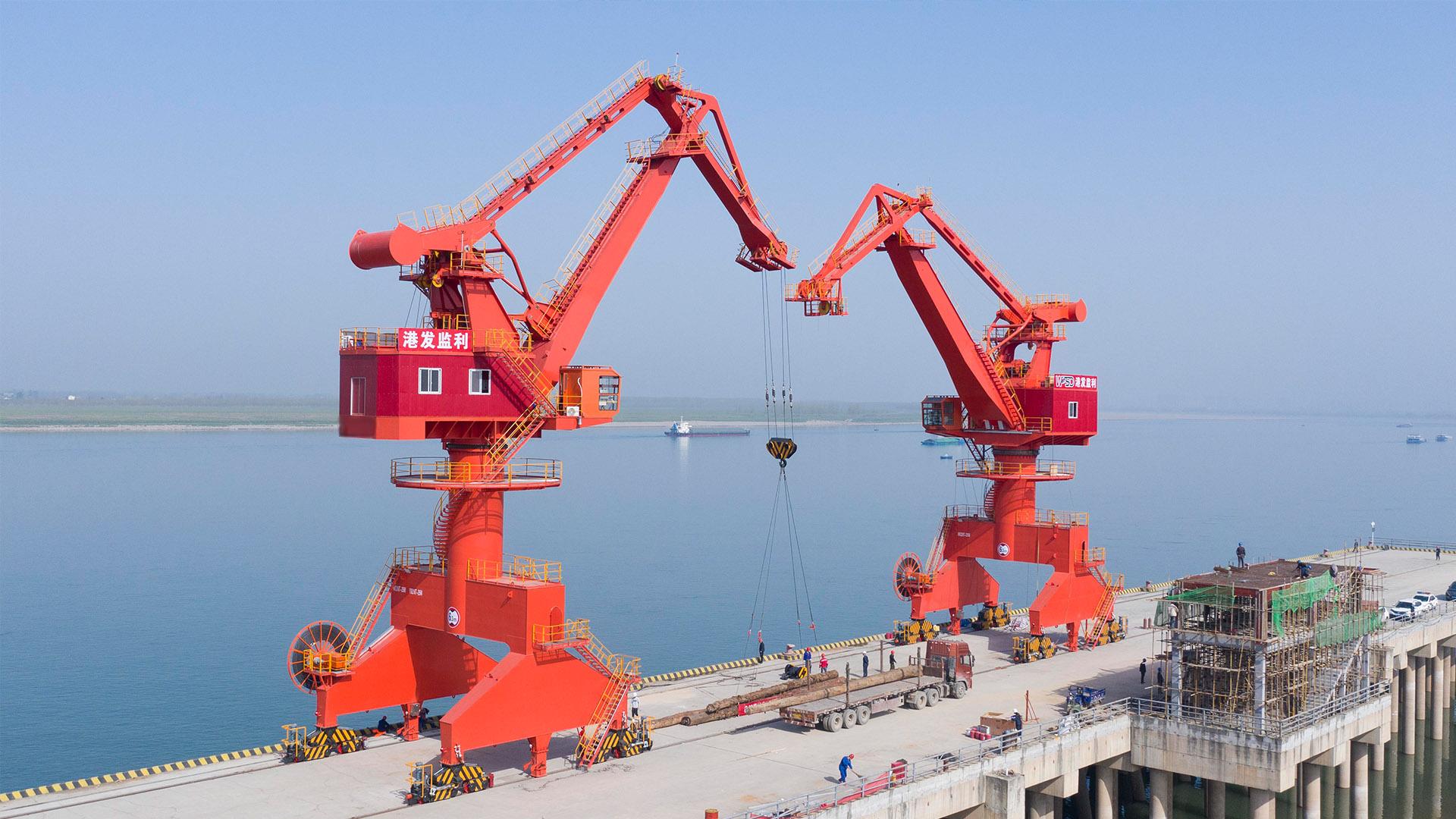

Our Portal Crane is a versatile heavy-duty lifting solution designed for high-speed container handling and bulk material operations. Engineered with a robust portal frame structure, this crane excels in outdoor environments, offering dual functionality with optional grab buckets (for bulk materials like coal, grain, or ore) and container spreaders (for ISO-standard containers). Its modular design ensures adaptability to diverse workflows while maintaining energy efficiency, safety, and precision.

Key Features & Benefits

Dual-Function Versatility
- Quick-change attachments: Switch seamlessly between grab buckets (0.5–15 m³ capacity) and container spreaders (20ft, 40ft, twin-lift).
- Ideal for mixed cargo terminals handling both containers and bulk materials.
Robust & Stable Design
- Reinforced portal frame with FEM 3m–5m class girders for heavy loads (up to 100 tonnes).
- Anti-corrosion coatings (ISO 12944 C5-M) and IP66-rated components for harsh coastal/industrial environments.
Advanced Automation
- PLC control system with anti-sway and collision avoidance for precise load positioning.
- IoT-enabled remote monitoring and predictive maintenance capabilities.
Energy Efficiency
- Regenerative braking and variable frequency drives (VFD) reduce energy consumption by 20–30%.
- Optional hybrid power systems (diesel-electric or battery-powered).
Safety & Compliance
- Dual braking systems, overload protection, and storm-proof anchoring.
- Compliant with ISO, FEM, and port safety regulations.

Technical Specifications

Parameter	Specification
Lifting Capacity	10–100 tonnes
Span	20–60 meters (customizable)
Lifting Height	Up to 40 meters
Work Class	FEM 3m–5m / ISO A6–A8
Traveling Speed	30–120 m/min (VFD-controlled)
Attachments	Grab Bucket / Container Spreader (optional)
Grab Bucket Capacity	0.5–15 m³ (adjustable)
Spreader Type	20ft, 40ft, telescopic, or twin-lift
Operating Voltage	380–690V AC, 50/60Hz or hybrid power
Protection Grade	IP66 (motors), IP65 (control systems)
Ambient Temperature	-30°C to +60°C

Customization Options

Automation: Fully automated operation with TOS (Terminal Operating System) integration.
Special coatings: UV-resistant, anti-corrosion, or fireproof finishes.
Power systems: Diesel-electric, electric, or lithium battery packs.
Safety features: Laser obstacle detection, CCTV cameras, or wind-speed alarms.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, FEM, and GOST certifications.

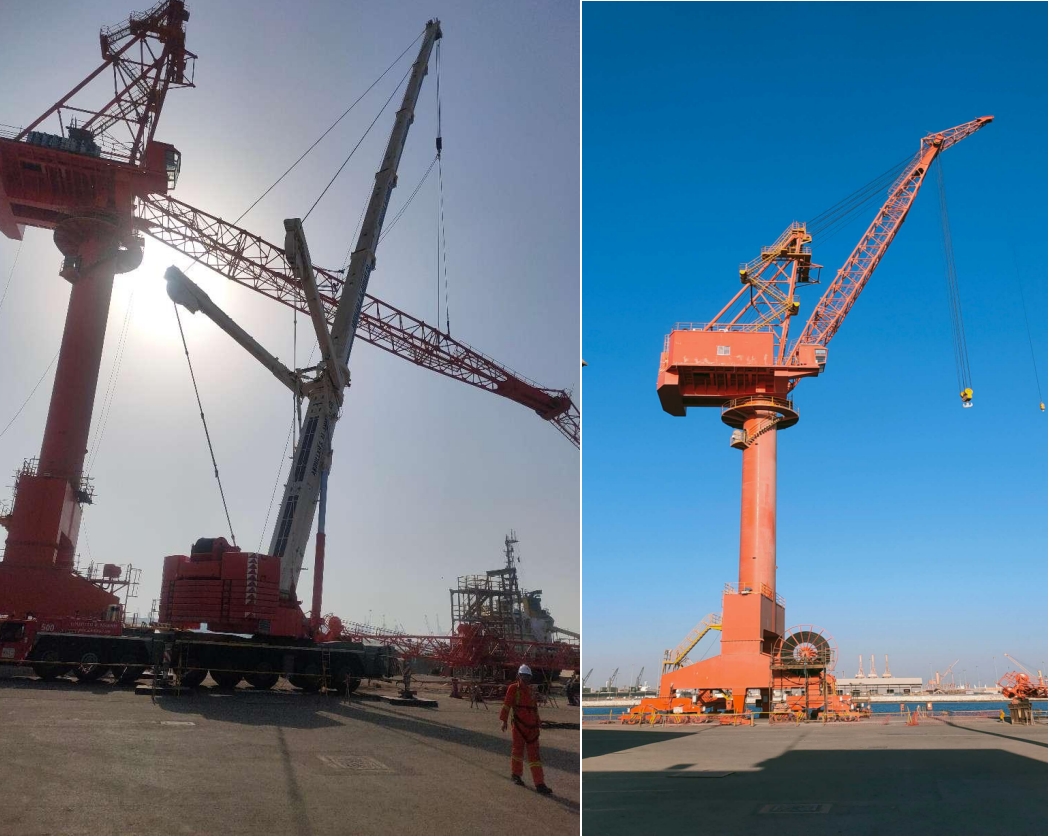

Installation: Turnkey solutions including rail alignment and load testing.
Warranty: 24 months (extendable) with 24/7 technical support.
Training: On-site operator training for grab bucket and spreader operations.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective portal cranes that combine European engineering standards with rugged durability. Our cranes are rigorously tested for performance in ports, rail yards, and industrial hubs, ensuring seamless handling of containers and bulk materials.

Request Customization – Optimize your logistics with a crane built for speed, power, and adaptability!
