Rough Terrain Scissor Lift

Category： Lifting Platform
Offroad Performance: 4WD Diesel | 45cm Ground Clearance | 40% Grade ability
High-Capacity Platform: 360kg SWL | 14m Height | Non-Conductive Bucket
Durability: Reinforced Steel Frame | IP65 Rating | 500h Service Interval
Safety: Tilt Alarm | Emergency Descent | EN 280 Compliant
INQUIRY EMAIL

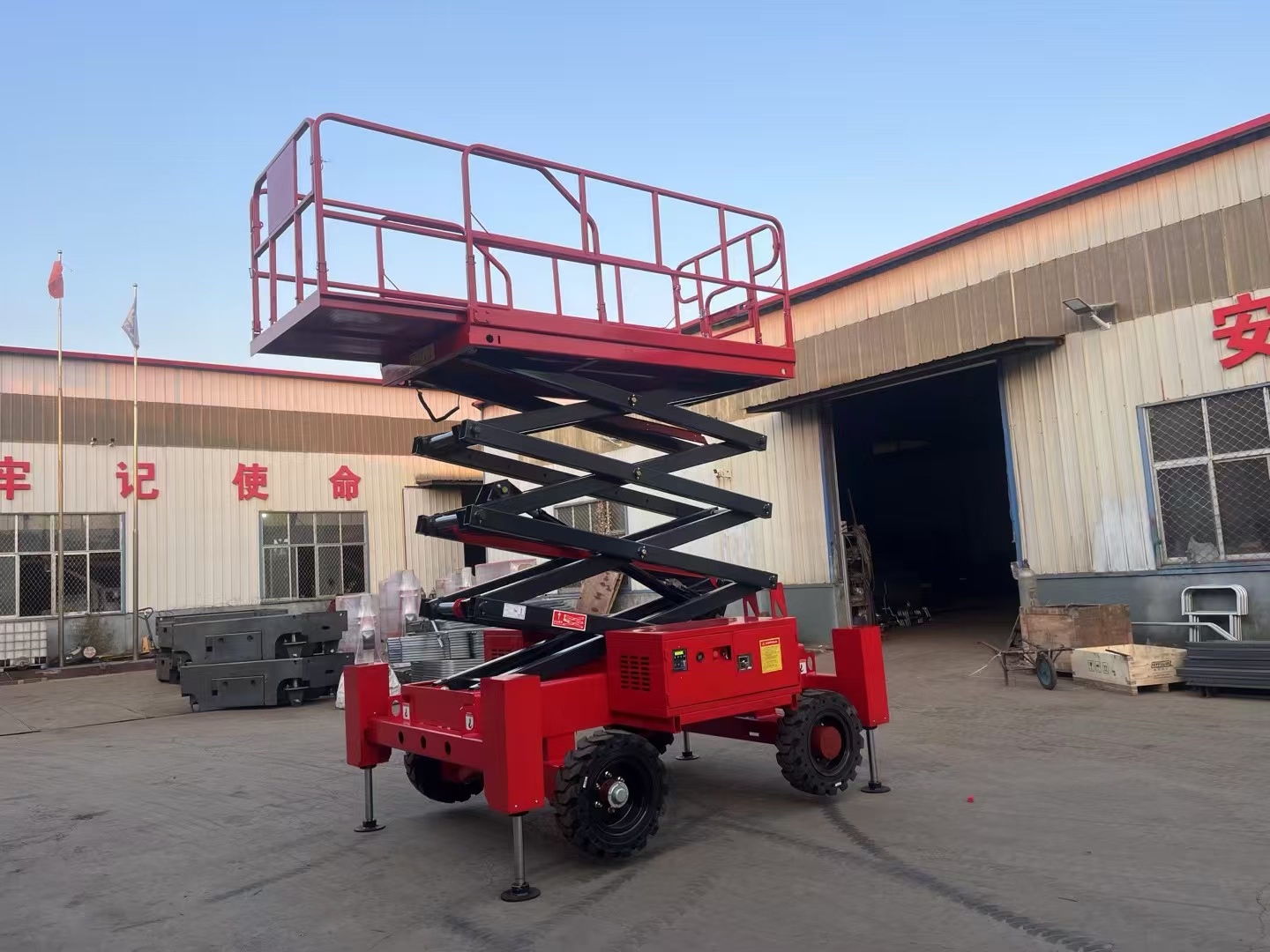

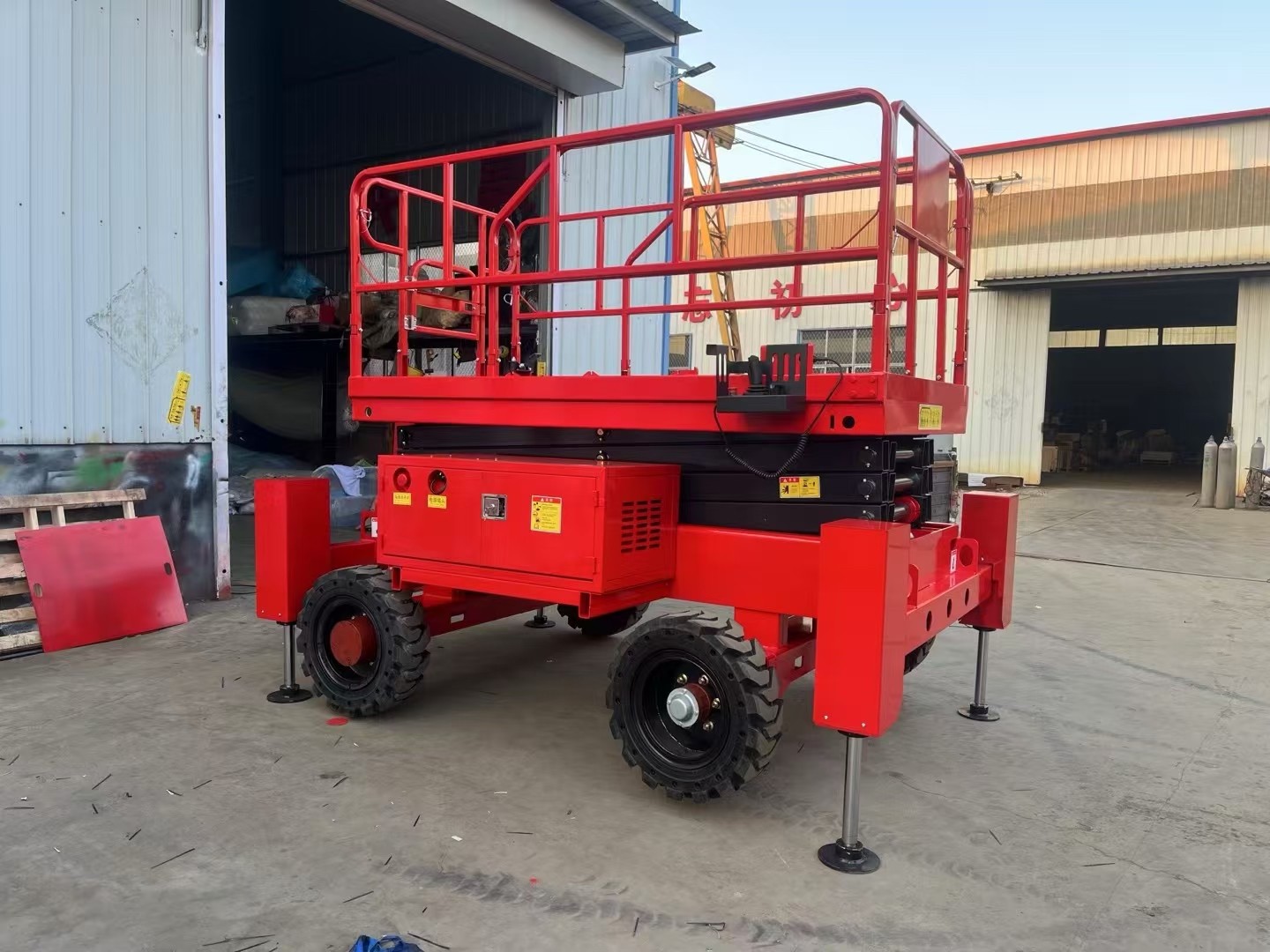

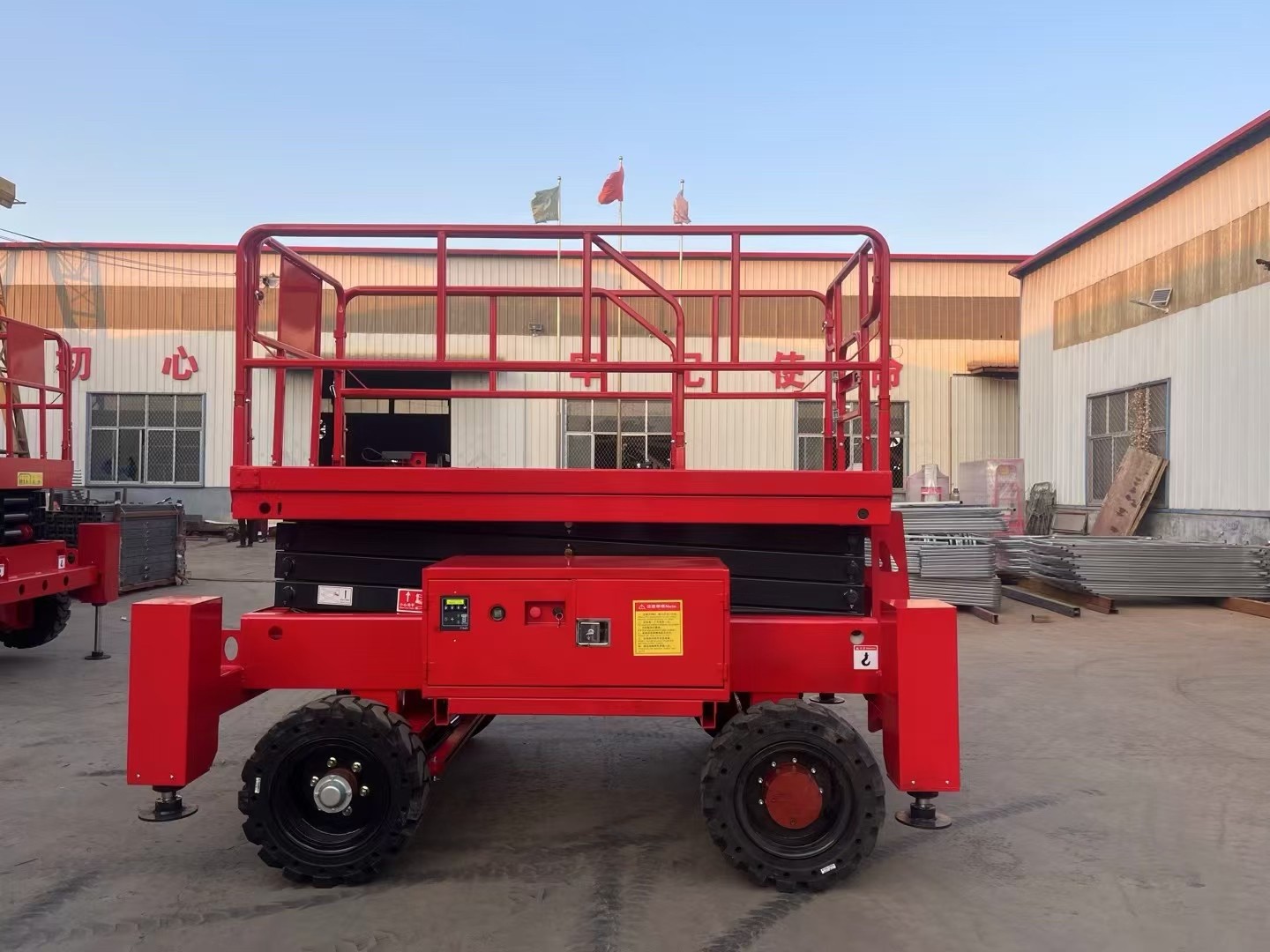

Rough Terrain Scissor Lift

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Construction sites, oil and gas fields, mining operations, wind farms, and outdoor industrial projects requiring heavy-duty, off-road aerial access on uneven, muddy, or sloped terrain.

Product Overview

Our Rough Terrain Scissor Lift is engineered for extreme outdoor environments, combining rugged durability, high traction, and exceptional stability to tackle the toughest job sites. Featuring all-terrain tires, reinforced steel construction, and advanced hydraulic systems, this lift delivers safe, reliable vertical access for loads up to 360 kg at heights up to 14 meters. Ideal for construction, infrastructure, and energy sectors, it ensures productivity in harsh weather and uneven ground conditions.

Key Features & Benefits

All-Terrain Performance
- 4x2 drive system with heavy-duty pneumatic tires for superior grip on mud, gravel, and slopes (up to 25° gradeability).
- Robust steel chassis and reinforced scissor arms (ISO 12944 C5-M anti-corrosion coatings).
High Stability & Safety
- Automatic leveling outriggers and tilt sensors for secure operation on uneven ground.
- Overload protection, emergency descent, and dual hydraulic safety valves.
Power & Efficiency
- Diesel or hybrid power systems (optional electric mode for indoor/outdoor versatility).
- High-torque hydraulic motors ensure smooth lifting (0.15–0.3 m/s) and precise control.
Operator Comfort
- Spacious, non-slip platform with weatherproof controls and ergonomic guardrails.
- Shock-absorbing suspension for smooth travel over rough surfaces.
Low Maintenance
- Sealed bearings, self-lubricating joints, and easy-access service panels.
- Modular design for quick component replacement.

Technical Specifications

Parameter	Specification
Max. Working Height	12–14 meters (platform height)
Platform Dimensions	2.4 x 1.2 m – 3.0 x 1.5 m (LxW)
Load Capacity	360 kg
Drive System	4x4 diesel/hydraulic or hybrid (diesel + electric)
Travel Speed	0–6 km/h (self-propelled)
Lift Speed	0.15–0.3 m/s (adjustable)
Max. Slope Angle	25° (static), 15° (dynamic)
Tire Type	Heavy-duty pneumatic (14–18")
Engine Power	30–55 kW (diesel) or 48V lithium-ion battery
Ground Clearance	250–350 mm
Protection Grade	IP65 (standard)
Ambient Temperature	-30°C to +50°C
Certifications	CE, ANSI/SAIA A92.20, ISO 9001/14001

Customization Options

Power Systems: Diesel-only, hybrid (diesel + electric), or full electric.
Platform Add-ons: Tool trays, material caddies, or foldable extensions.
Safety Features: Wind speed sensors, proximity alarms, or LED lighting.
Tire Upgrades: Foam-filled or puncture-resistant tires for rocky terrain.
Control Systems: Wireless remote, joystick, or IoT telematics.

Service & Certifications

Global Compliance: CE, ANSI, ISO, and OSHA standards.
Installation: On-site setup and operator training.
Warranty: 12–24 months (extendable) with 24/7 technical support.
Maintenance: OEM spare parts and preventive service programs.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective rough terrain scissor lifts that combine European engineering standards with rugged off-road performance. Rigorously tested for durability and safety, our lifts are trusted globally for construction, mining, and energy projects demanding unstoppable productivity in extreme conditions.

Request a Heavy-Duty Solution – Elevate your outdoor operations with unstoppable power and reliability!
