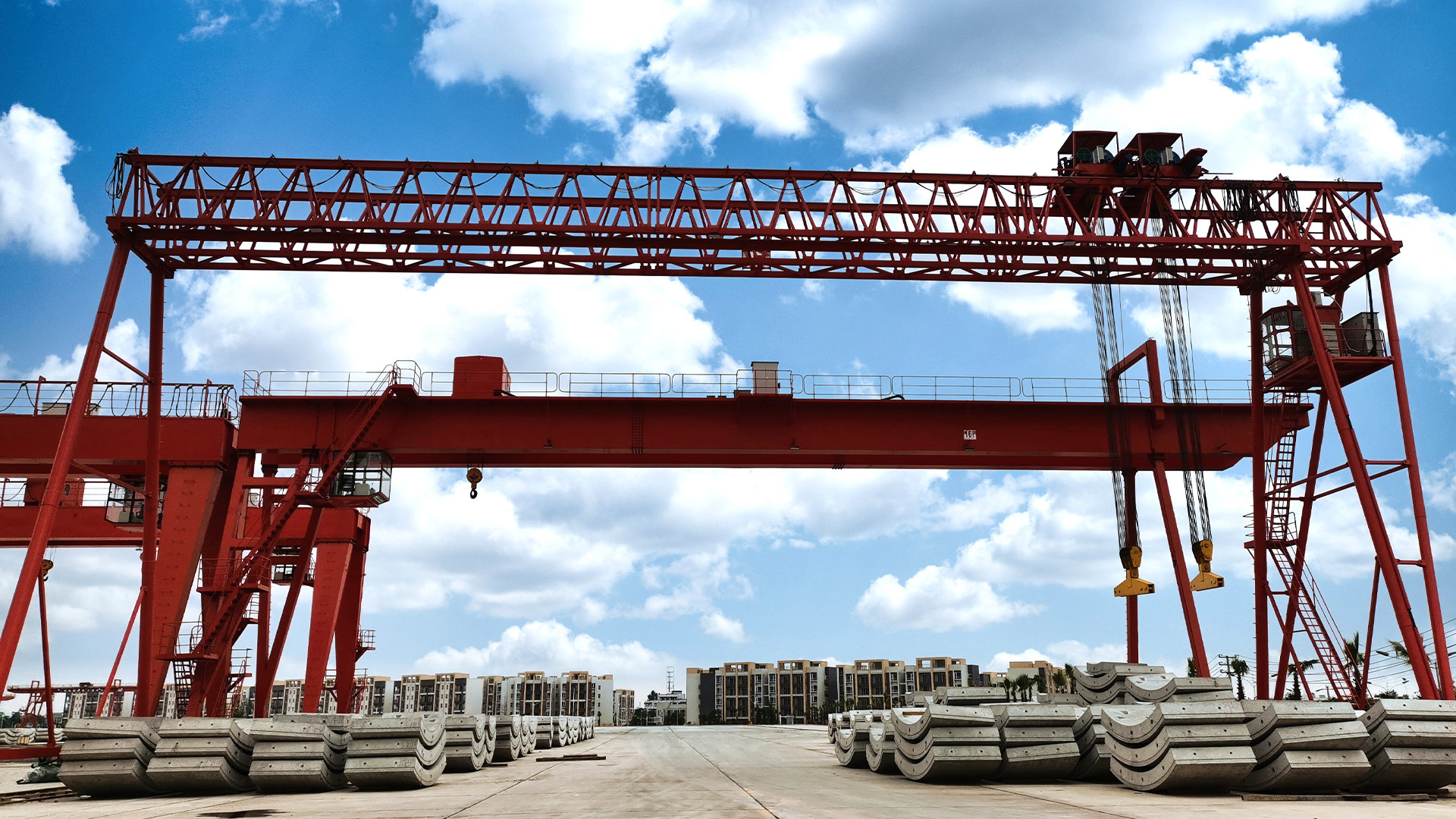

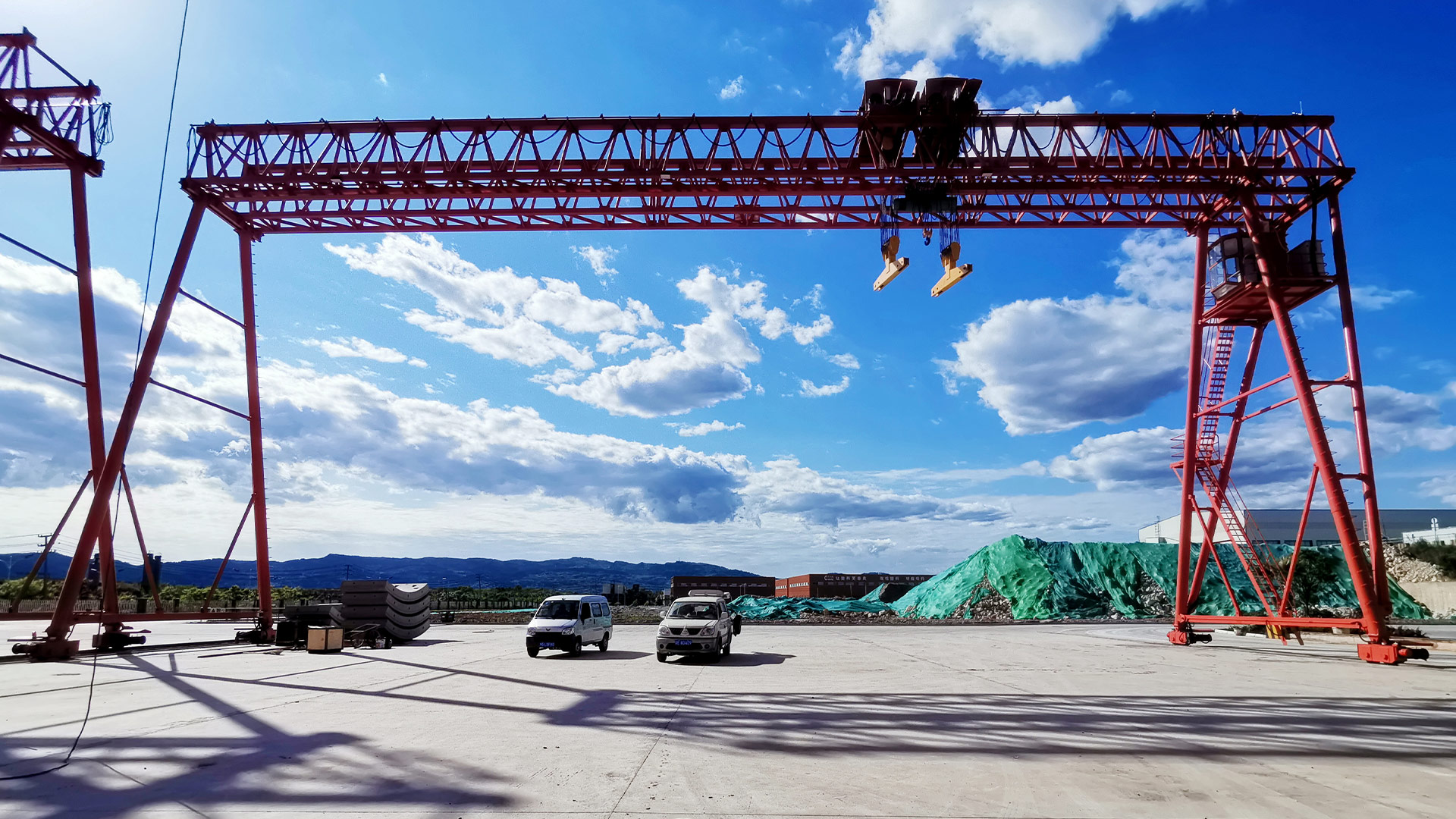

Lattice Gantry Crane

Product Item : Lattice Gantry Crane
Category： Gantry Crane
Modular Lattice Structure：Bolted Truss Sections (ASTM A36 Steel) | Span: 30m-100m | Weight Reduction: 40% vs Box Girder
Wind Load Resilience：Drag Coefficient: ≤1.2 | Wind Resistance: Up to 30m/s | Dynamic Dampers (Optional)
Heavy-Duty Corrosion Protection：Hot-Dip Galvanized (ISO 1461) | Salt Spray Rating: 2,000+ Hours | UV-Resistant Coatings
Smart Load Path Monitoring：Strain Gauges at Critical Nodes | Real-Time Deflection Alerts (±5mm Tolerance)
INQUIRY EMAIL

Lattice Gantry Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Shipyards, construction sites, steel mills, ports, power plants, and heavy industrial facilities requiring large-span, heavy-load lifting in outdoor or harsh environments.

Product Overview

Our Lattice Gantry Crane is engineered with a lightweight yet robust truss structure, combining high load-bearing capacity with cost-effective design. Ideal for lifting capacities up to 500 tonnes and spans exceeding 60 meters, this crane excels in applications demanding durability, stability, and adaptability. The open lattice framework reduces wind resistance and material costs while maintaining structural integrity, making it a preferred choice for large-scale outdoor projects.

Key Features & Benefits

High Strength & Lightweight Design
- Triangular lattice girders minimize self-weight while maximizing load capacity (FEM 3m–5m class).
- Modular assembly simplifies transportation and on-site installation.
Large-Span Capability
- Customizable spans up to 100 meters for wide-area material handling.
- Reinforced legs with adjustable bases for uneven terrain or rail-mounted configurations.
Durability in Harsh Conditions
- Hot-dip galvanized or epoxy-coated steel (ISO 12944 C5-M standard) resists corrosion, moisture, and UV damage.
- IP66-rated motors and enclosed electrical systems for extreme environments.
Energy Efficiency & Safety
- Variable frequency drives (VFD) ensure smooth operation and reduce energy consumption by 20–25%.
- Dual braking systems, overload protection, and anti-collision sensors.
Customizable Configurations
- Compatibility with hooks, grabs, magnets, or specialized lifting attachments.
- Optional automation: remote control, GPS positioning, or IoT-based diagnostics.

Technical Specifications

Parameter	Specification
Lifting Capacity	10–500 tonnes
Span	20–100 meters (customizable)
Lifting Height	Up to 50 meters
Work Class	FEM 3m–5m / ISO A6–A8
Traveling Speed	5–30 m/min (VFD-controlled)
Operating Voltage	380–690V AC, 50/60Hz
Wheel Pressure	≤40 kN (adjustable for ground conditions)
Protection Grade	IP66 (hoist), IP65 (control systems)
Ambient Temperature	-30°C to +60°C

Customization Options

Structural upgrades: Stainless steel components for coastal/chemical environments.
Mobility: Rail-mounted, rubber-tired, or stationary configurations.
Automation: Laser-guided alignment, load weighing systems, or autonomous operation.
Special attachments: Coil lifts, container spreaders, or ladle-handling systems.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, FEM, and GOST certifications.
Turnkey solutions: Design, installation, and commissioning by certified engineers.
Warranty: 24 months (extendable) with 24/7 global technical support.
Lifetime maintenance: OEM spare parts supply and predictive maintenance plans.

Why Choose Us?
As a leading Chinese manufacturer, we specialize in cost-effective lattice gantry cranes that balance European engineering standards with rugged reliability. Rigorously tested for safety and performance, our cranes are trusted worldwide for critical heavy-load operations in ports, construction, and energy sectors.

Request a Custom Design – Power your projects with a crane built for strength, span, and sustainability!
