Wire Rope Hoist

Category： Hoist
Heavy-Duty Load Range：1T-30T SWL | 8m/min Lift Speed
Corrosion & Wear Resistance：Galvanized Wire Rope (ISO 2408) | IP65 Motor | 500k+ Cycles
Smart Safety Braking：Dual Brake System | Overload Cutoff (≤0.3s) | EN 13157 Certified
Precision Control：Variable Speed (5%-100%) | ±5mm Positioning | Remote Pendant
INQUIRY EMAIL

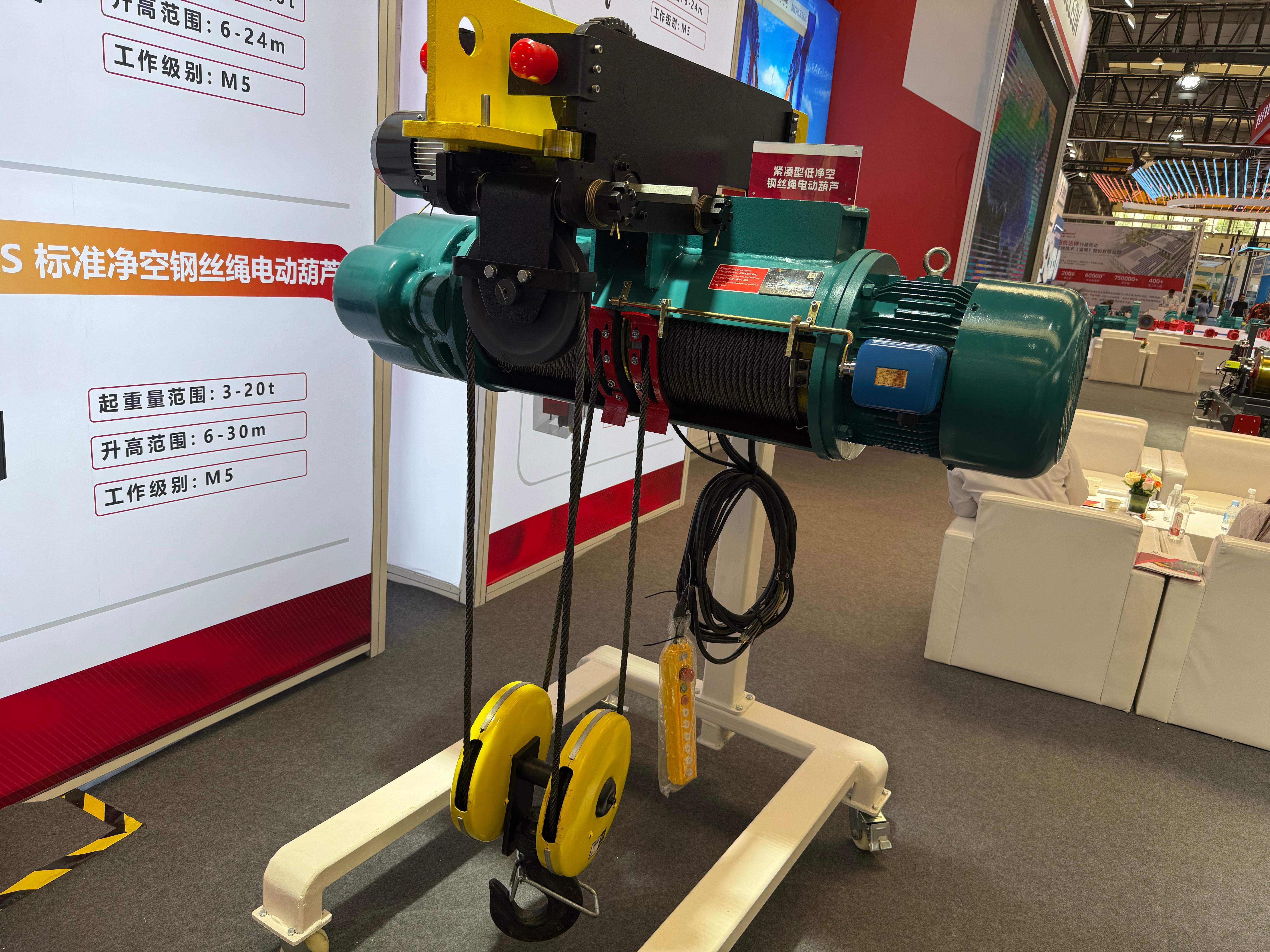

Electric Wire Rope Hoist | Precision Lifting System for Industrial Applications

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Factories, warehouses, construction sites, mining operations, and logistics centers requiring heavy-duty vertical lifting for machinery, raw materials, and industrial loads.

Product Overview

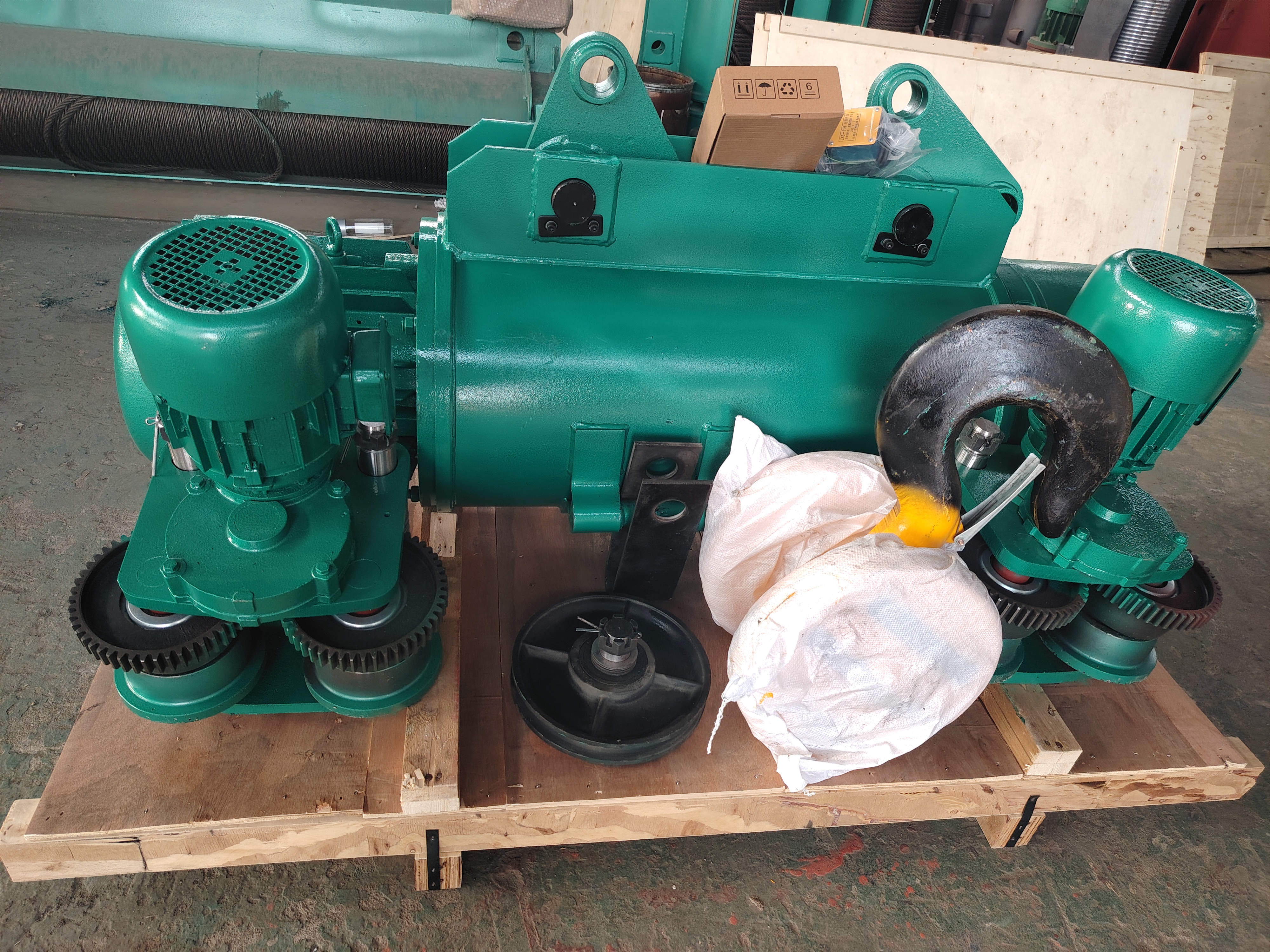

Henan Hengkun’s CD1/MD1/HC Series Electric Wire Rope Hoists deliver reliable vertical lifting with space-saving tandem design (motor-drum-reducer alignment). Engineered for monorails, Gantry Cranes, and jib systems, these hoists feature optional dual-speed precision for demanding industrial environments.

Technical Specifications

Model	Capacity	Lift Speed	Special Features
CD1	0.5-16T	8 m/min (Single)	Standard duty cycle
MD1	0.5-16T	8/0.8 m/min (Dual)	Precision positioning
HC	20-32T	7/0.7 m/min (Dual)	Reinforced frame

Common Parameters

Wire Rope: 6×19+IWRC (DIN 3066)
Duty Class: FEM 1Am (200,000 cycles)
Protection: IP55 / IP65 (optional)
Ambient Temp: -20°C to +60°C

Precision Dual-Speed Operation

Primary Mode (Rapid):
→ Main motor drives drum directly
→ Full-speed lifting (8 m/min)

Precision Mode (MD1/HC):
→ Auxiliary motor activates
→ Engages main motor cone rotor via reduction gear
→ 10:1 speed reduction (0.8 m/min)
→ Enables ±1mm positioning accuracy

Application-Specific Advantages

Industry	Benefit	Recommended Model
Warehouse Logistics	Space-efficient vertical lifting	CD1 Series
Precision Manufacturing	Mold alignment, machine maintenance	MD1 Series
Heavy Material Handling	Steel coil, machinery moving	HC Series
Construction	Temporary lifting points	Customized HC

Certified Performance Features

1. Safety & Reliability

Dual braking system:
- Electromagnetic disc (primary)
- Mechanical load-holding (backup)
Upper/lower limit switches (EN 12077)
Overload cut-off (110% rated capacity)

2. Maintenance Optimization

Tool-free brake adjustment
Quick-release rope guide
Lubrication-free bushings

3. Global Compliance

CE Machinery Directive 2006/42/EC
ISO 4301 Duty Classification
GOST-R (Customizable for CIS)

Why Choose Hengkun Hoists?

Feature	CD1	MD1	HC
Lift Accuracy	±50mm	±1mm (slow speed)	±1mm
Duty Intensity	Medium (60% ED)	Heavy (80% ED)	Continuous
Critical Use Cases	General material handling	Machine repair, mold clamping	Foundries, steel mills

Automotive Plant Case (Germany)
*57×MD1-10T units installed on assembly line jibs:

Reduced engine alignment time by 65% using precision mode

Zero maintenance interventions in 18 months*

Customization & Support

Voltage Options: 380V/415V/480V 50/60Hz
Explosion Proof: ATEX Zone 21/22 (dust)
Special Configurations:
- Stainless steel construction (food/pharma)
- Cold-weather package (-40°C)
- Corrosion-resistant coating (C5-M)

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective wire rope hoists that combine European engineering standards with industrial-grade reliability. Rigorously tested for safety and performance, our hoists are trusted globally for critical lifting operations in construction, manufacturing, and logistics.

Request a Quote – Elevate your operations with precision-engineered lifting power!
