DNV 2.7-1 / ABS Lifting Certificated with 50T Capacity & 40m Outreach
Brand: Henan Hengkun Crane Co., Ltd.
Applications: Port construction, offshore wind farm installation, bridge building, salvage operations, and marine projects requiring heavy-lift capabilities on water.
Henan Hengkun’s Floating Cranes deliver unmatched mobility and lifting power in tidal zones, open water, and remote locations. Engineered for ship launching, dock maintenance, and offshore construction, our systems achieve ±0.5° deck stability in Beaufort 6 conditions through dynamic ballasting and patented mooring systems.
Box-Girder Boom: AH36 marine steel (ABS certified)
360° Continuous Slewing:
4.5m diameter roller bearing (ISO 19901-6)
Integrated Ballast System:
→ Auto-compensates 3.5m tide variation
→ Stabilizes deck within ±0.5°
Ergonomic ISO 11064 Design:
Adjustable air-suspension seat
270° glazed visibility
Intelligent Control Console:
→ Real-time wind speed display (ANEMOMETER)
→ Dynamic load moment indicator
→ Mooring tension monitoring
| Parameter | Specification |
|---|---|
| Capacity | 50T @ 15m / 12T @ 40m |
| Max Outreach | 40m |
| Hook Height | +35m / -25m (relative to deck) |
| Slewing Speed | 0-0.6 rpm |
| Hoisting Speed | 0-60 m/min (dual-speed) |
| Deck Stability | ±0.5° @ Beaufort 6 (13m/s wind) |
| Mooring System | 4-point hydraulic winches (50T pull) |
1. Weather-Proof Walkways
→ Internal access routes with handrails
→ Non-slip grating (DIN 24537)
2. Advanced Wind Management
→ Auto-slow at 12m/s
→ Operational cut-off at 15m/s
3. Emergency Protocols
→ Watertight bulkheads (SOLAS compliant)
→ Quick-release hook system
| Tool | Max Capacity | Specialized Use |
|---|---|---|
| Hook Block | 50T | General heavy lifting |

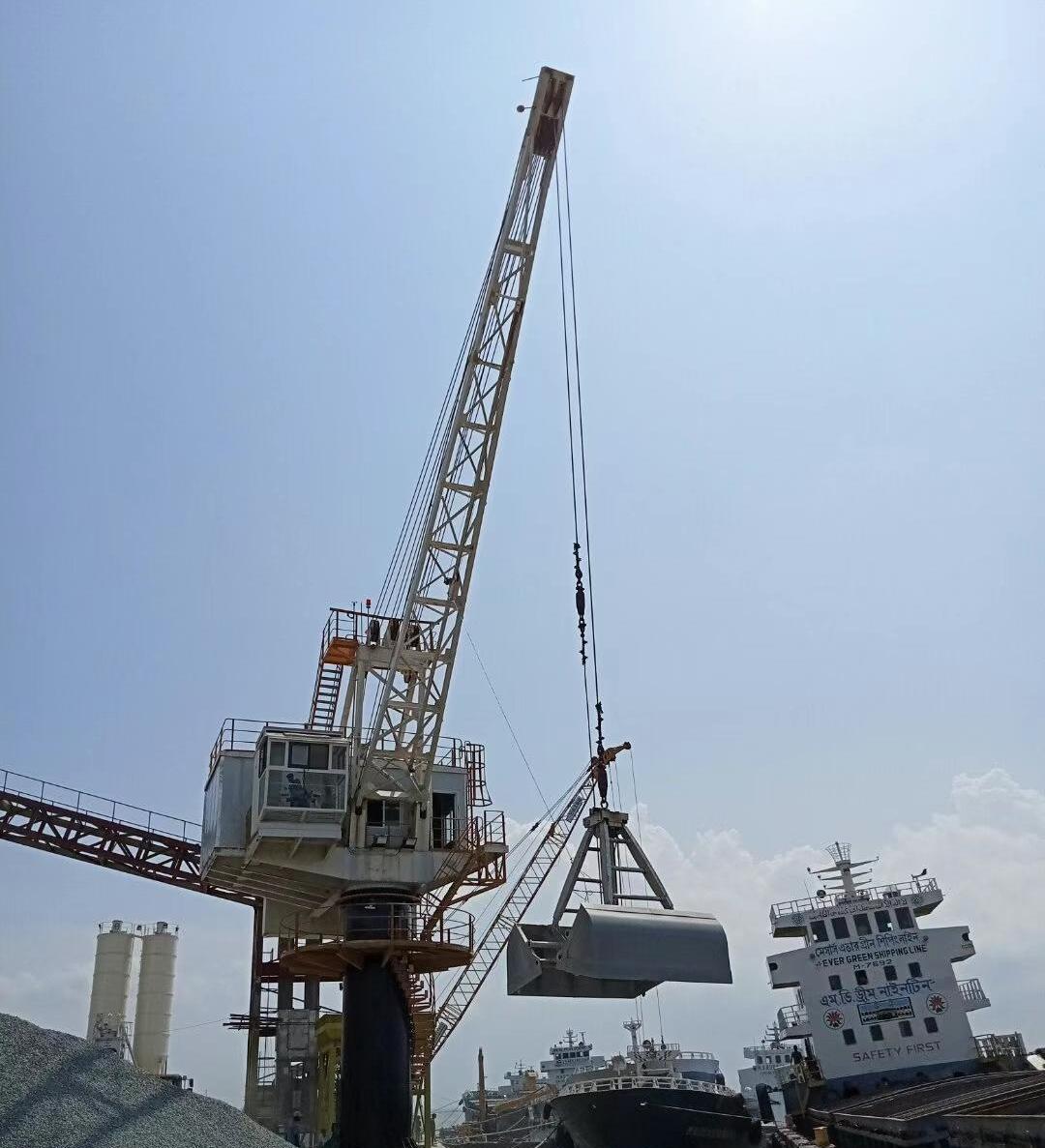

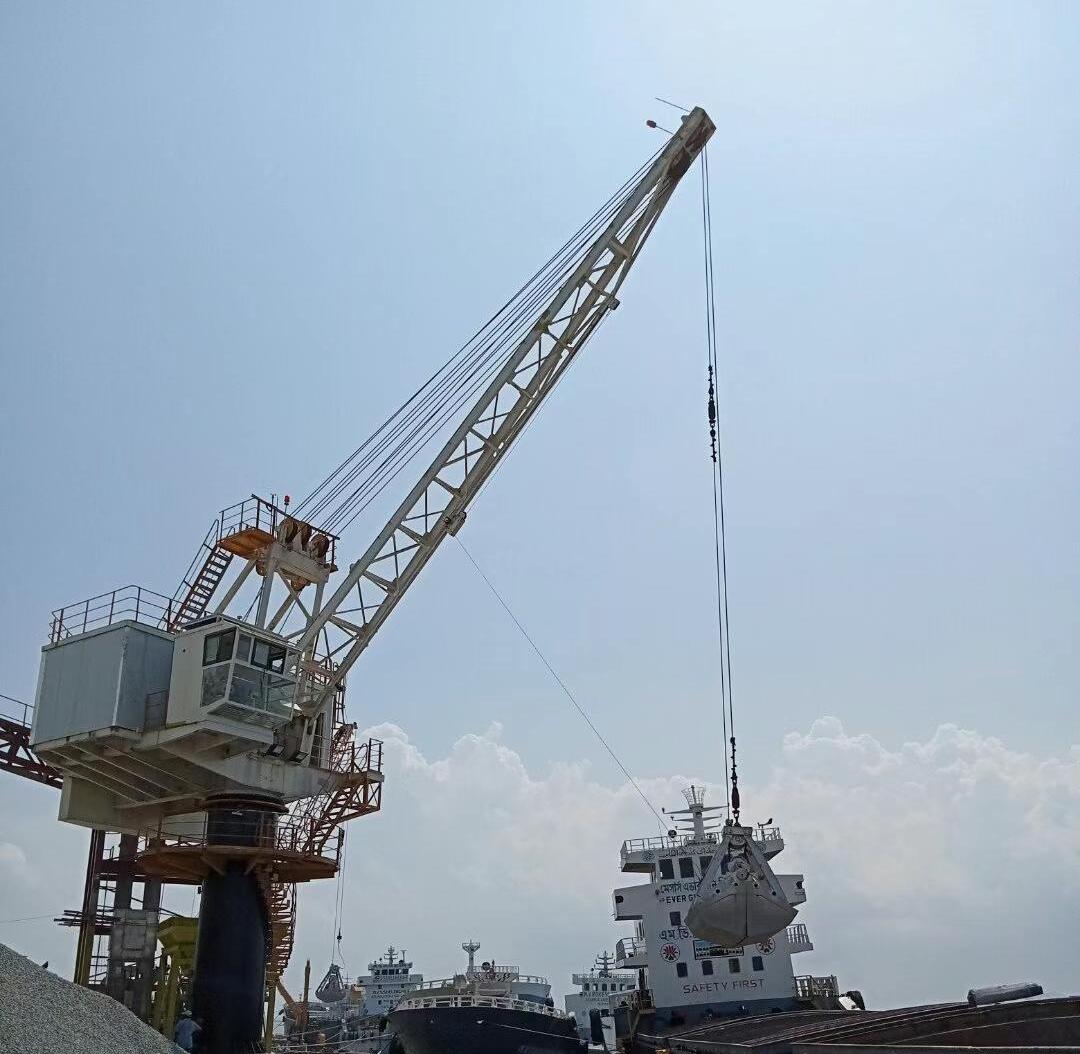

| Clamshell Grab | 25T | Dredging/aggregate handling |
| Container Spreader | 40T | Offshore logistics |
| Electromagnet | 20T | Scrap metal recovery |
| C-Hook | 35T | Coil handling |
| Pile Gripper | 30T | Wind turbine installation |
Anti-Two-Block: Dual laser/mechanical sensors
Dynamic Load Monitoring: ±1% SWL accuracy
Mooring Force Control: Auto-tension adjustment
Compliance:
DNV-ST-0378
ABS Chapter 4
IMO MSC.1/Circ.1378
Zhoushan Shipyard Case
*FC-50T launching 12,000DWT bulk carriers:
40% faster drydock operations
Zero downtime in 4m wave conditions*
▸ Tidal Prediction System:
Syncs with local tide tables (6hr forecast)
Satellite data transmission (Inmarsat)
Automated lift records (ISO 10218-1)
Global Compliance: BV, CCS, DNV GL, ABS, Lloyds Register, IMO, and ISO standards.
Installation: Turnkey solutions including pontoon assembly and sea trials.
Warranty: 24 months (extendable) with 24/7 global technical support.
Training: Operator safety protocols and marine maintenance programs.
Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective floating cranes that combine European engineering standards with rugged marine performance. Our cranes are rigorously tested for reliability in extreme offshore conditions, ensuring seamless integration into port expansions, wind farm installations, and marine infrastructure projects.
Request a Custom Marine Solution – Anchor your projects with precision, power, and adaptability!
