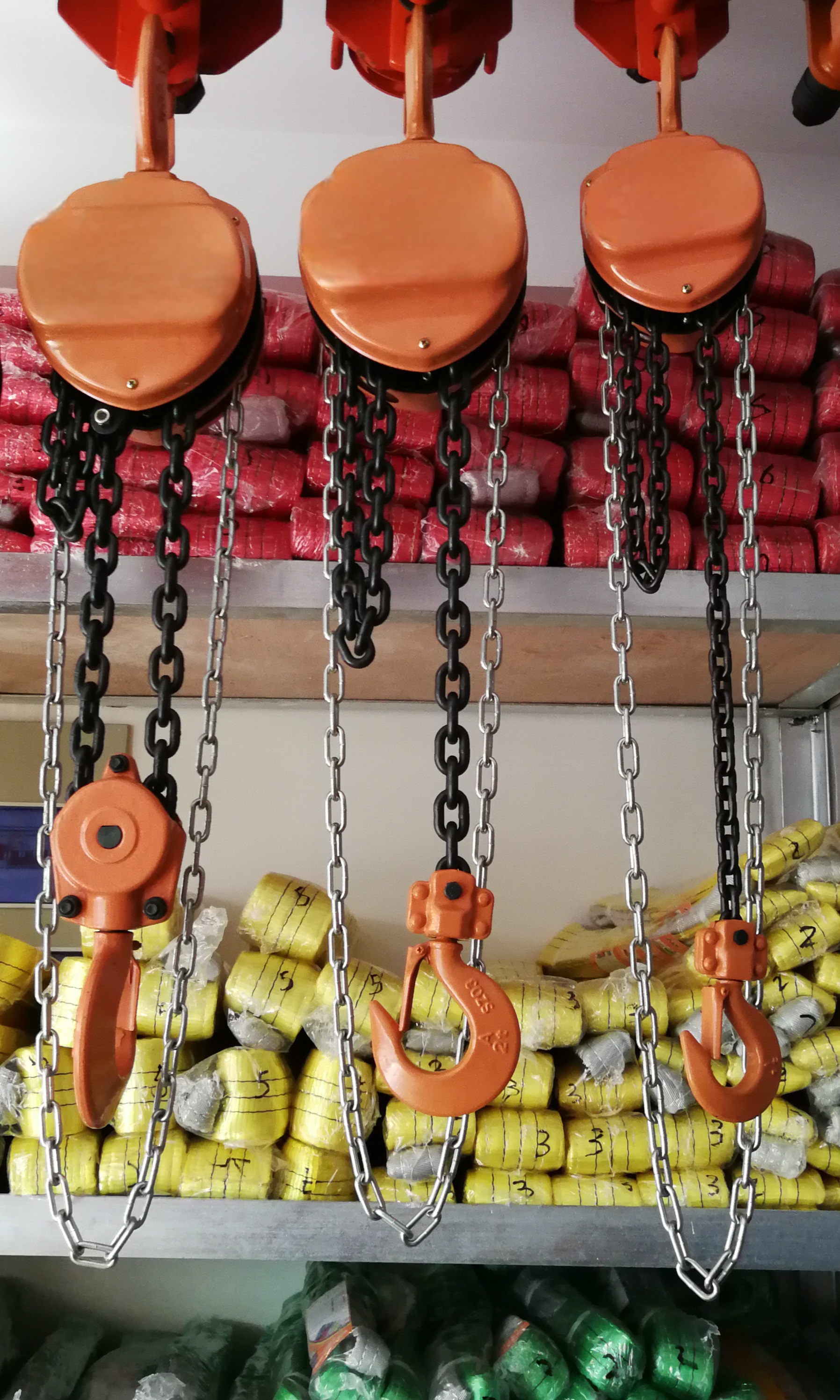

Manual Chain Hoist

Category： Hoist
Compact & Lightweight:Load Capacity: 0.5T-20T | Weight: 8kg-25kg
Durable Chain & Hooks: ISO 4344 Alloy Chain | Forged Steel Hooks (4:1 Safety Factor)
Safety Lock Mechanism: Automatic Load Brake | Overload Protection | Drop-Tested
Smooth Manual Operation: Low-Friction Pulleys | Ergonomic Hand Chain | 360° Rotation
INQUIRY EMAIL

Manual Chain Hoist | Mechanical Lifting Solution for Power-Free Environments

ISO 9001/FEM 1.001 Certified with 500kg-20T Capacity & Alloy Steel Construction

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Workshops, construction sites, warehouses, and maintenance operations requiring portable, cost-effective lifting for equipment, machinery, and materials in environments without power access.

Product Overview

Henan Hengkun Crane’s HC-Series Manual Chain Hoists deliver fail-safe vertical lifting where electricity is unavailable or prohibited. Engineered for maintenance shops, emergency operations, and hazardous areas, these hoists feature precision gearing and safety-lock mechanisms to handle critical loads with zero energy dependency

Core Engineering Advantages

Robust Power Transmission

Triple-Gear Reduction System:
→ Forged alloy steel gears (18CrNiMo7-6)
→ 4:1 mechanical advantage (effort reduction)
Sealed Load Chain:
→ Grade 80 alloy steel (DIN 7634)
→ Zinc-plated for corrosion resistance

Safety-Integrated Design

Automatic Load Brake:
→ Instant engagement on handle release
→ Holds load indefinitely without slippage
Double-Latch Hook:
→ Safety catch prevents accidental disengagement
→ Forged steel (DIN 15401) with 5:1 safety factor

Technical Specifications

Parameter	Specification
Lifting Capacity	0.5–20 tonnes
Lifting Height	1.5–12 meters (standard)
Chain Type	Grade 80/100 alloy steel, galvanized
Chain Diameter	6–16 mm
Gear Ratio	5:1 to 20:1 (depending on capacity)
Hand Chain Pull Force	25–35 kg (ergonomic design)
Weight	8–50 kg (compact and portable)
Protection Grade	IP54 (dust and splash resistant)
Ambient Temperature	-20°C to +60°C
Certifications	CE, ISO 9001, ISO 4301

Operational Advantages vs Electric Hoists

Parameter	HC-Series Manual	Electric Hoist
Power Dependency	None	Requires electricity
Explosion Safety	Intrinsically safe	Needs ATEX certification
Maintenance	10-year lubrication interval	Monthly inspections
Failure Modes	Mechanical only	Electrical + mechanical
Response Time	Immediate operation	Startup delay

Application-Specific Configurations

Industry	Specialized Kit	Key Benefit
Oil & Gas	Non-sparking bronze components	Safe in Zone 0 hazardous areas
Marine	Saltwater-resistant coating	ISO 12944 C5-M corrosion life
Emergency Rescue	Quick-connect harness	First responder deployment
Confined Spaces	Compact low-headroom design	1.2m minimum clearance

Certification & Testing

Load Testing: 125% SWL static test per EN 13157
Fatigue Validation: 20,000 cycles @ 100% SWL (FEM 1.001)
Material Certs:
→ Chain: EN 10204 3.1 certificate
→ Hooks: Magnetic particle inspection report
Safety Markings: CE, GS, UKCA

Offshore Platform Case (North Sea)
*127×HC-2T units in hazardous zones:

Zero maintenance interventions in 8 years

Critical valve replacements during power outage*

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, ANSI/ASME B30.16.
Installation: Simple DIY setup with user manuals; optional technician support.
Warranty: 12–24 months (extendable) with lifetime technical assistance.
Maintenance: OEM spare parts and lubrication kits available.

Why Choose Us?
As a leading Chinese manufacturer, we deliver manual chain hoists that combine rugged reliability with European engineering standards. Rigorously tested for safety and performance, our hoists are trusted globally for their simplicity, durability, and cost-effectiveness in power-free lifting scenarios.

Request a Quote – Lift smarter, safer, and simpler with manual precision!
