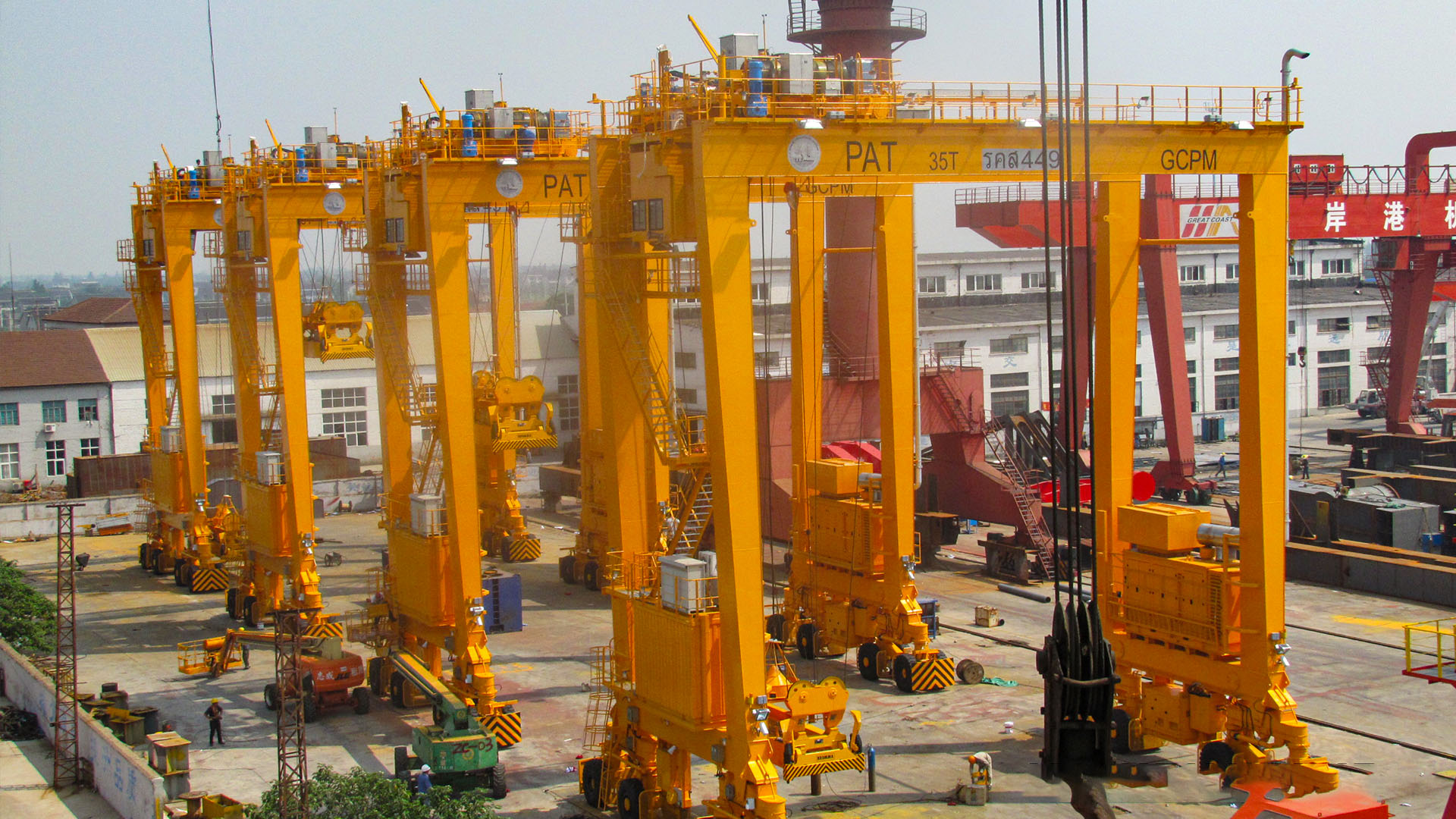

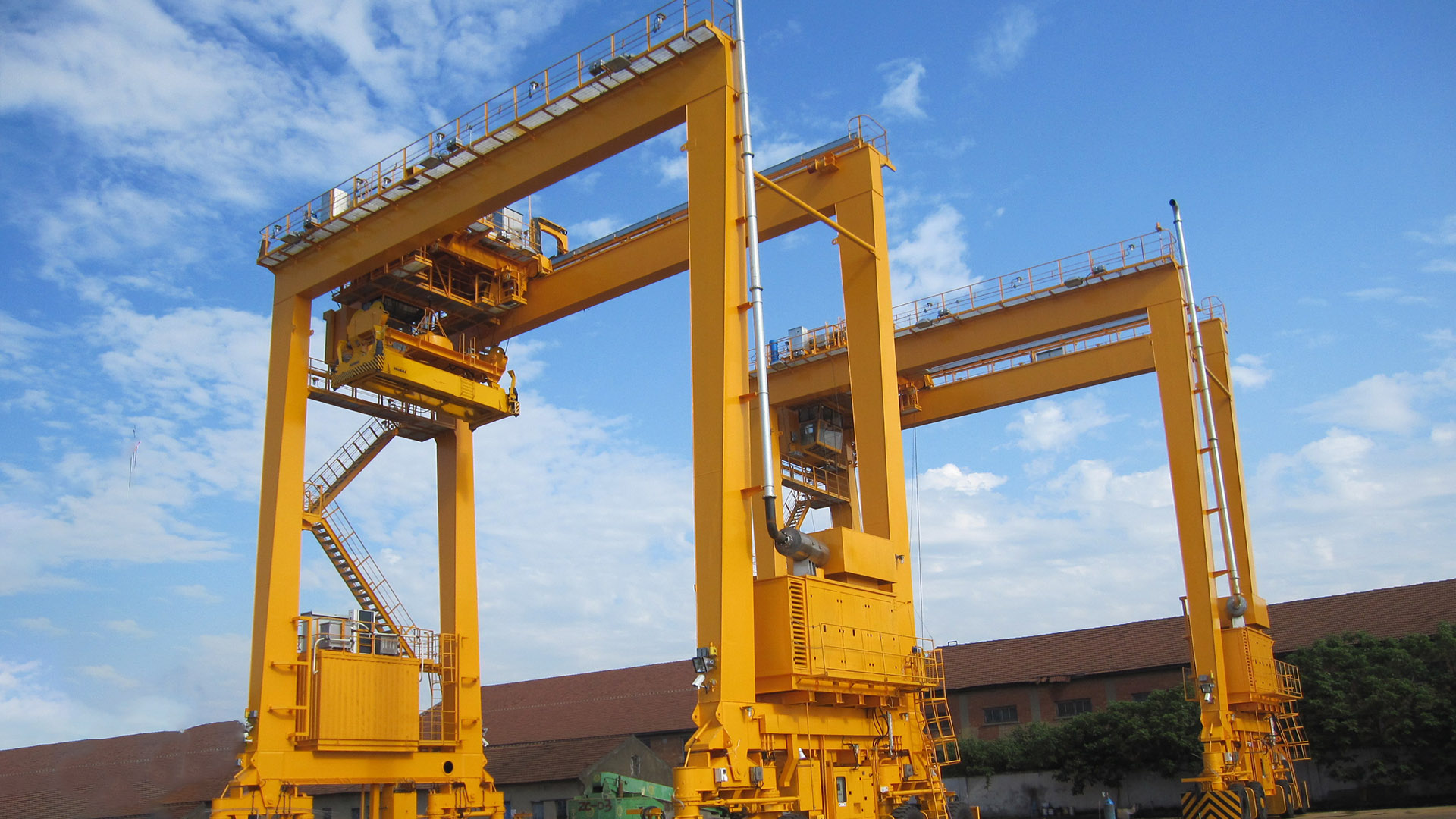

Rubber-Tired Gantry Crane (RTG)

Product Item : Rubber-Tired Gantry Crane (RTG)
Category： Gantry Crane
Hybrid/Electric Power System:Diesel-Generator + Battery Hybrid | Regenerative Braking (20% Energy Recovery)
Auto-Steering & Container Positioning:GPS/RTK Positioning (±10mm) | Twistlock Auto-Lock | Lane Guidance System
All-Terrain Mobility & Stability: 8x8 Drive Wheels | Crab Steering (360° Turn) | Ground Pressure: ≤8 N/cm²
Corrosion & Fatigue Resistance:Marine-Grade Epoxy Coating (300μm) | Stainless Steel Bolting | FEM Class M6-M8
INQUIRY EMAIL

Rubber-Tired Gantry Crane (RTG)

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Container terminals, intermodal yards, port logistics, freight hubs, and large-scale storage facilities requiring flexible, mobile container stacking and handling.

Product Overview

Our Rubber-Tired Gantry Crane (RTG) is designed for high-efficiency container handling in outdoor environments, combining mobility, precision, and automation to streamline port and logistics operations. Equipped with rubber tires for unrestricted movement and advanced control systems, it enables multi-layer container stacking (up to 6 high) and seamless integration with terminal management software. Ideal for 24/7 operations, this crane reduces infrastructure costs while maximizing yard space utilization.

Key Features & Benefits

Mobility & Flexibility
- Rubber-tired mobility eliminates the need for fixed rails, enabling easy repositioning and layout adjustments.
- 90° or 45° steering modes for optimal maneuverability in congested yards.
Automation & Precision
- Laser-guided positioning and GPS synchronization ensure ±10mm container placement accuracy.
- Optional fully automated operation via Terminal Operating System (TOS) integration.
Energy Efficiency
- Hybrid power systems (diesel-electric or lithium battery) reduce fuel consumption by 30–40%.
- Regenerative energy recovery during lowering operations.
Durability & Safety
- Reinforced steel structure with ISO 12944 C5-M anti-corrosion coatings for coastal environments.
- Anti-collision systems, wind-resistant anchoring, and overload protection.
Smart Control
- Remote monitoring via IoT-enabled dashboards for real-time diagnostics.
- Auto-stacking programs and container tracking (RFID/OCR compatibility).

Technical Specifications

Parameter	Specification
Lifting Capacity	30–100 tonnes (with spreader)
Stacking Height	1-over-5 to 1-over-6 containers
Span	6+1, 7+1, or 8+1 container lanes (customizable)
Lifting Height	Up to 18 meters (under spreader)
Power System	Diesel-electric, electric (RTG-E), or hybrid
Traveling Speed	50–120 m/min (empty), 25–60 m/min (loaded)
Tire Configuration	8x4 or 16x4 wheel sets (high-flotation tires)
Turning Radius	≤18 meters
Protection Grade	IP66 (critical components), IP65 (controls)
Ambient Temperature	-25°C to +60°C

Customization Options

Automation levels: Semi-automatic, remote control, or fully autonomous operation.
Spreader types: 20ft, 40ft, twin-lift, or telescopic spreaders.
Eco-friendly upgrades: Lithium battery packs, solar power integration, or shore power compatibility.
Special features: Container weighing systems, LED lighting, or cold-climate packages.

Service & Certifications

Global compliance: CE, ISO 9001, ISO 14001, and IEC standards.
Turnkey solutions: Site planning, automation integration, and operator training.
Warranty: 24 months (extendable) with predictive maintenance plans.
Lifetime support: Fast global delivery of OEM spare parts (tires, spreaders, sensors).

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective RTG solutions that combine European engineering precision with rugged reliability. Our cranes are certified for global port operations, ensuring compliance with safety and environmental regulations while reducing total cost of ownership.

Request Automation Solutions – Optimize your container yard with intelligent, mobile stacking technology!
