Explosion-Proof Overhead Crane

Product Item : Explosion-Proof Overhead Crane
Category： Overhead Crane
ATEX/IECEx Certified | Zone 1 & Zone 21 (Gas/Dust)
IP66 Enclosure | T4 Temperature Class (≤135°C)
Non-Sparking Aluminum Alloy Components | Anti-Static Trolley Wheels
Dual Emergency Stop (Remote + Manual) | Overload Cutoff with Auto-Braking
INQUIRY EMAIL

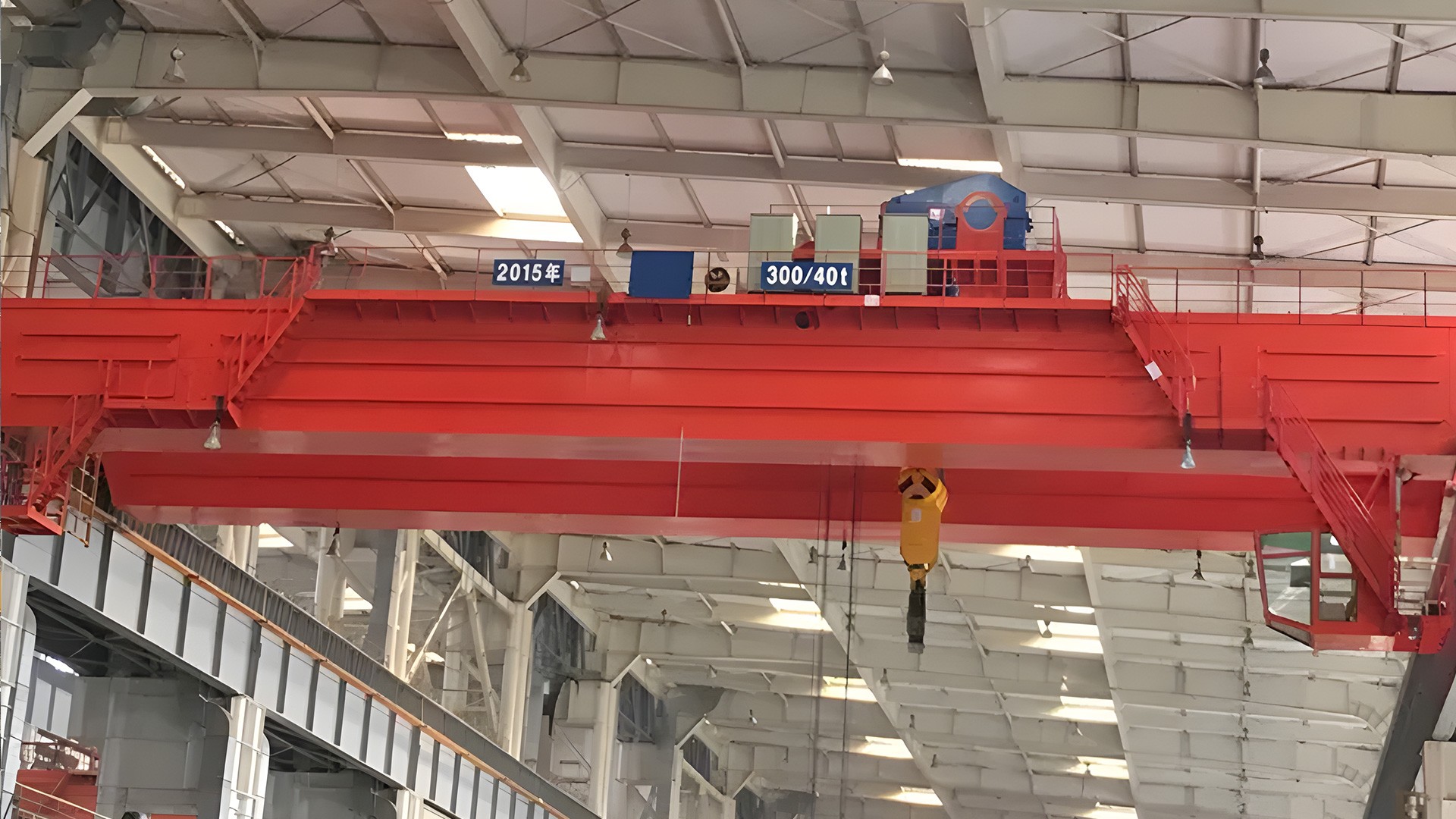

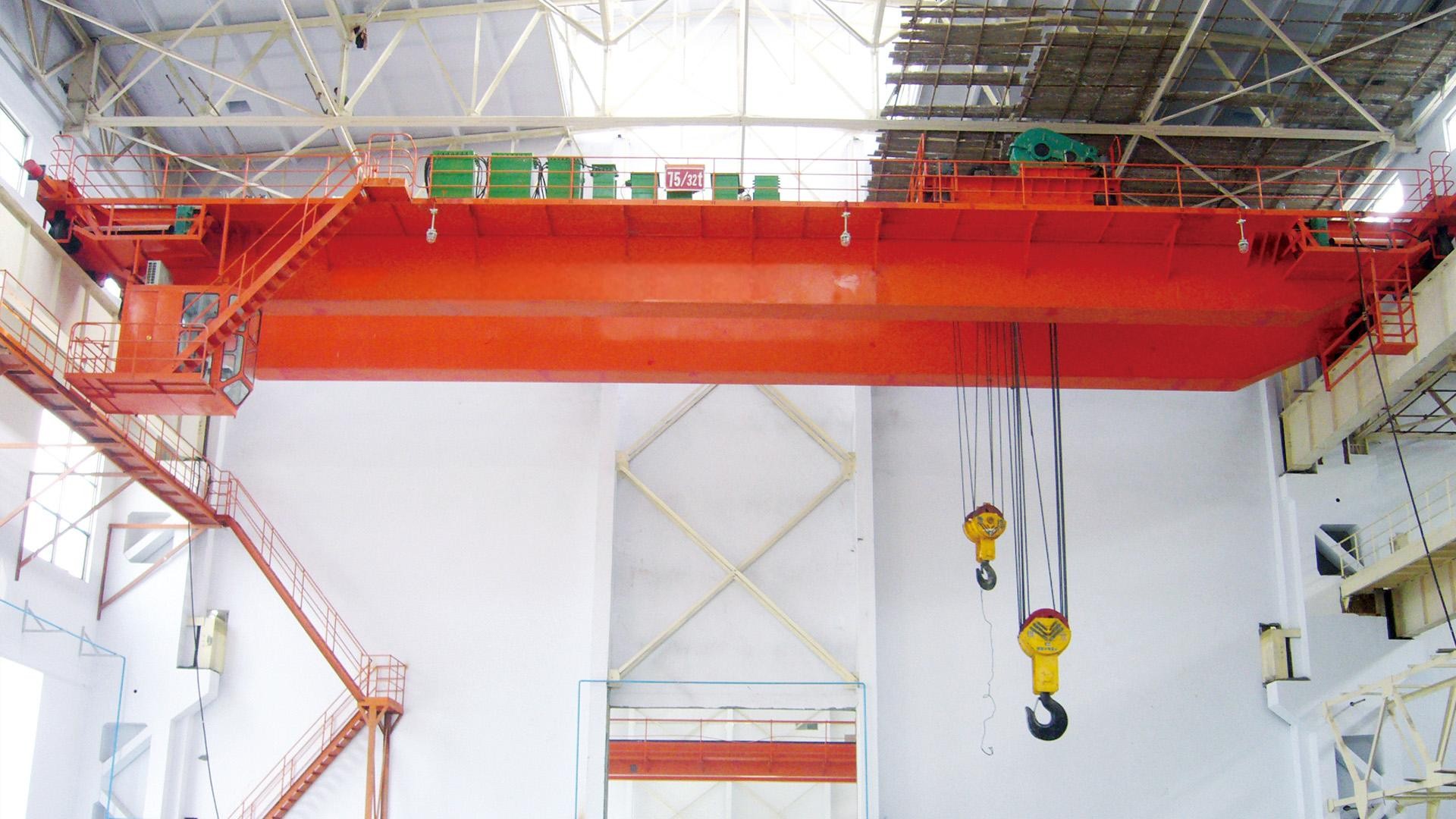

Explosion-Proof Overhead Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Hazardous environments such as oil refineries, chemical plants, gas storage facilities, pharmaceutical production zones, mining, and other areas with explosive gases, dust, or vapors.

Product Overview

Our explosion-proof overhead crane is engineered for safe operation in flammable or explosive atmospheres, adhering to global safety standards (ATEX, IECEx, NEC). Featuring intrinsically safe components, anti-static design, and spark-resistant materials, it ensures zero ignition risks during lifting operations. Ideal for Zone 1/21 and Zone 2/22 hazardous areas, this crane combines reliability, durability, and compliance to protect both personnel and infrastructure.

Key Technical Advantages

Explosion-Proof Certification
- ATEX/IECEx-certified motors, electrical panels, and control systems.
- Spark-free aluminum alloy trolley wheels and copper alloy tools.
Enhanced Safety Design
- Double sealing (IP66) for motors and junction boxes to prevent gas/dust ingress.
- Grounding systems and anti-static coatings to eliminate electrostatic discharge.
Robust Construction
- Corrosion-resistant steel structure with epoxy coatings (ISO 12944 C4/C5 standards).
- Reinforced braking systems with emergency power backup.
Precision Control
- Explosion-proof variable frequency drives (VFD) for smooth speed regulation.
- Remote control options (radio/wired) to minimize operator exposure to hazardous zones.

Technical Specifications

Parameter	Specification
Lifting Capacity	1–500 tonnes
Span	5–40 meters (customizable)
Lifting Height	Up to 30 meters
Work Class	FEM 2m–3m / ISO A4–A6
Explosion Protection	ATEX II 2G/2D Ex db eb mb IIC T4 Gb / Ex tb IIIC T135°C Db
Operating Voltage	220–690V AC, 50/60Hz
Ambient Temperature	-30°C to +60°C
Protection Grade	IP66 (motors), IP65 (control systems)
Hazardous Zone	Zone 1/21, Zone 2/22 (gas/dust)

Customization Options

Material upgrades: Stainless steel or copper-free alloys for corrosive environments.
Specialized controls: Explosion-proof pendant, cabin, or wireless remote systems.
Monitoring systems: Integrated gas detectors, temperature sensors, or CCTV cameras.
Certifications: Compliance with NEC (North America), TR CU (EAC), or other regional standards.

Service & Compliance

Global certifications: ATEX, IECEx, ISO 80079, and CE Marking.
Turnkey solutions: Hazardous area classification assessment and customized design.
Warranty: 24 months (extendable) with 24/7 technical support.
Training: On-site operator safety training and explosion-proof maintenance guidelines.

Why Choose Us?
As a trusted Chinese manufacturer, we specialize in cost-effective explosion-proof lifting solutions that meet the strictest international safety standards. Our cranes are rigorously tested in simulated hazardous conditions to ensure reliability and compliance for oil, chemical, and mining industries worldwide.

Request a Safe Solution – Secure your operations with precision-engineered explosion-proof technology!
