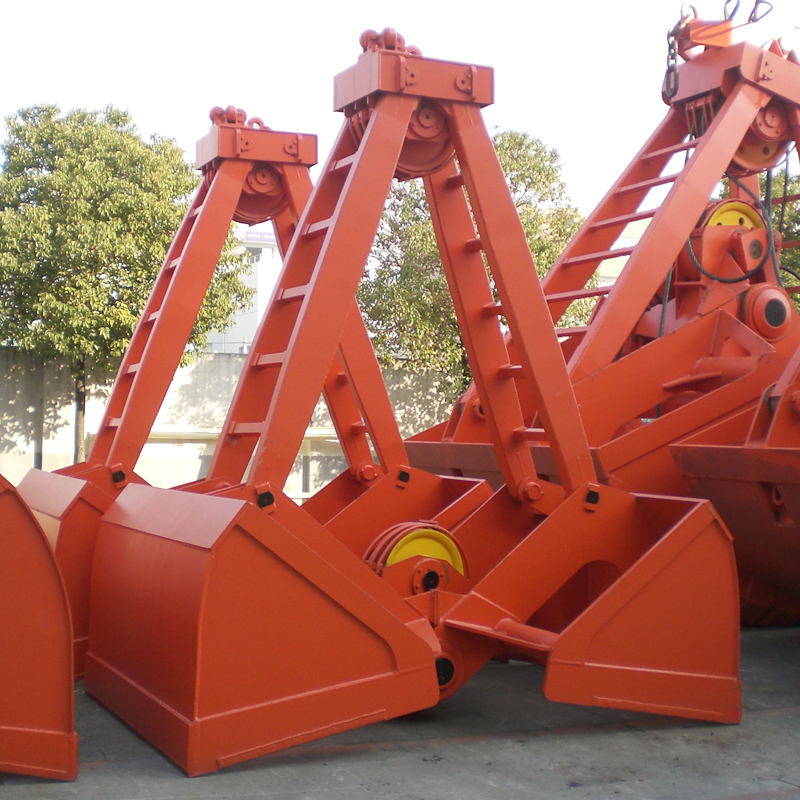

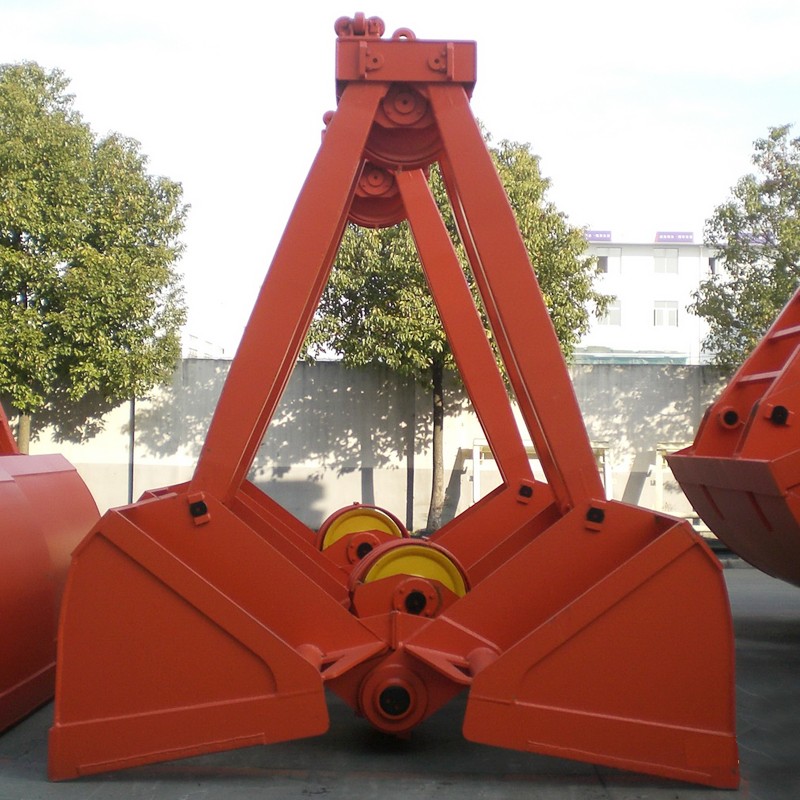

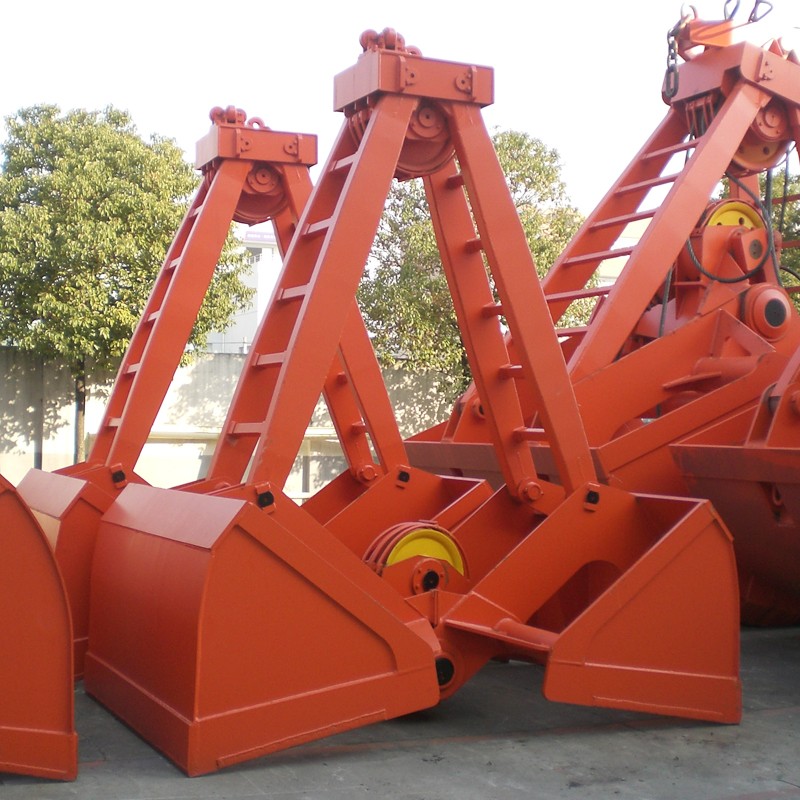

Double Rope Mechanical Grab | Heavy-Duty Bulk

Material Handling | Henan Hengkun Crane

Core Engineering Superiority

1. Synchronized Dual-Rope Control
▶ ±0.5° jaw alignment precision (ISO 4309 certified)
▶ Spill-free unloading with <2% material loss

2. Advanced Wear Protection

▶ Multi-layer reinforcement at high-stress zones

▶ Replaceable liner system for easy maintenance

▶ Impact-resistant tooth configurations

3. Environmental Adaptability
▶ -20°C to +40°C operational range
▶ Specialized sealing packages for harsh conditions

Technical Specifications

Universal Standards
▸ Structural: FEM 9.511 Class M8
▸ Safety: EN 13155 Category II
▸ Corrosion: ISO 12944 C5-M coating

Industry-Specific Applications

Ports & Terminals

• Vessel loading/unloading operations

• Stockyard management for bulk commodities

• Optimized for continuous handling cycles

Construction & Infrastructure

• Aggregates handling for large-scale projects

• Bridge and road construction material transfer

• Designed for high-volume operations

Mining & Heavy Industry

• Ore and mineral extraction operations

• Scrap metal recycling facilities

• Power plant coal yard management

Performance Tiers

Case Study: Southeast Asian Port Terminal

Challenge
24/7 coal handling with minimal downtime

Solution

• 8× HKG-MG-50 Grabs with:
  → Enhanced wear package
  → Tropical environmental sealing
  → Quick-change liner system

Result
▸ 42% longer service intervals
▸ 95% operational availability
▸ 14-month ROI

Precision Working Principle

Dual-Rope Synchronization

1. Positioning

   • Supporting ropes position grab above material

   • Closing rope release enables jaw opening

2. Material Engagement

   • Jaws penetrate material during closure

   • Optimized geometry maximizes fill rate

3. Transport & Discharge

   • Secure lifting via synchronized ropes

   • Controlled dumping at target location
