Single Rope Mechanical Grab

Category： Grabs
Simple Operation: Easy to dismantle and hang the grab bucketl | 5T-50T Capacity
Durable Design: Mn Steel Jaws | ISO 2408 Wire Rope | 100k+ Cycles
Bulk Material Focus: Coal/Ore/Grain | 90% Fill Efficiency
Wide range of applications: suitable for underwater and land operations
INQUIRY EMAIL

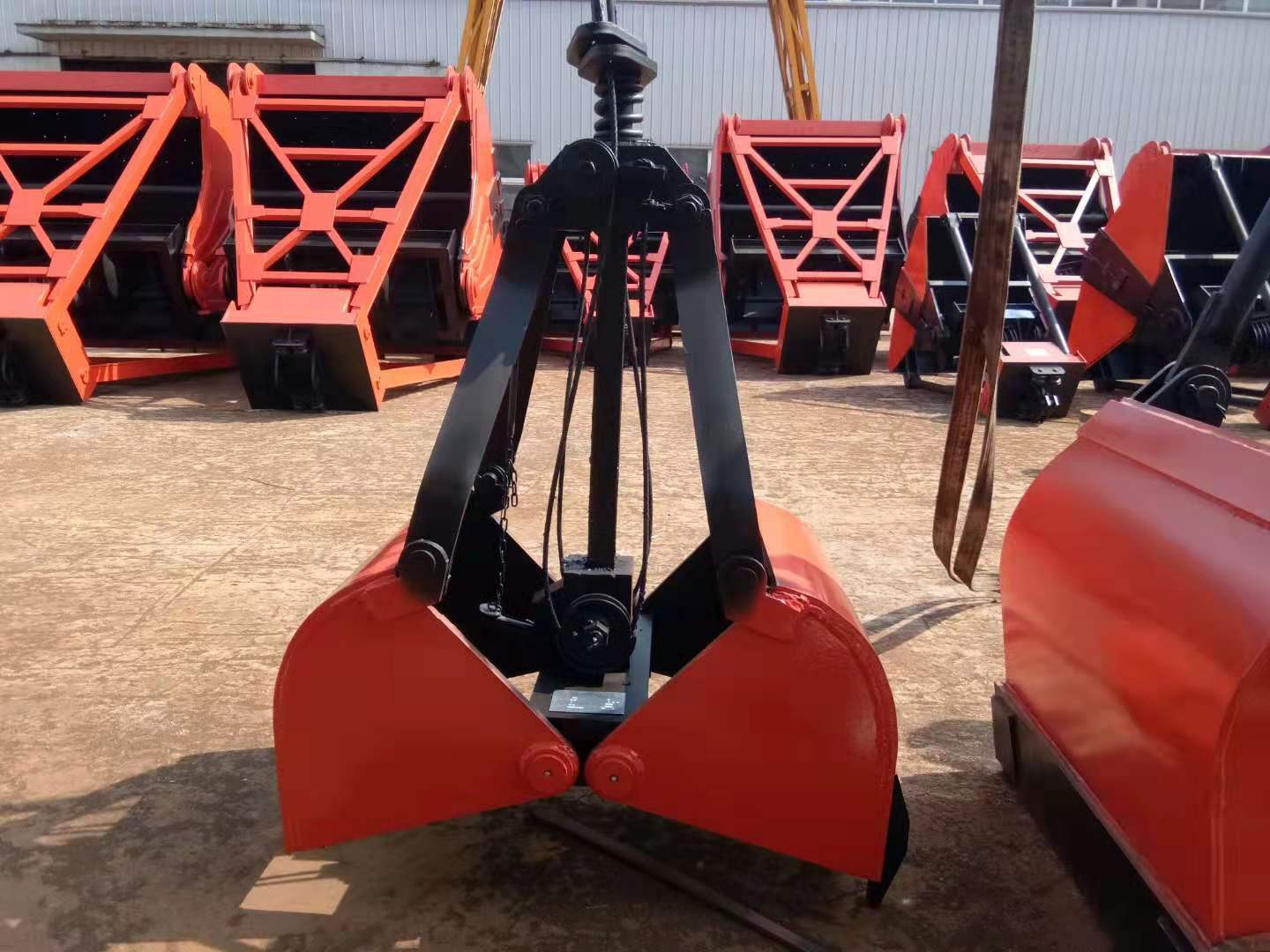

Single Rope Mechanical Grab

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Bulk material handling in ports, coal yards, grain silos, mining, and industrial facilities requiring simple, reliable mechanical grabs for loading/unloading operations of coal, ore, gravel, and grain.

Product Overview

Our Single Rope Mechanical Grab is a robust, mechanical operated gripping device designed for material handling in demanding environments. Utilizing a single hoist rope system, this grab relies on mechanical linkage triggered by rope tension changes. Built for durability and low maintenance, it is ideal for rugged environments where simplicity and reliability are critical. Ideal for cranes, gantries, or monorail systems, it streamlines the handling of bulk materials.

Key Features & Benefits

Mechanical Design
- The single rope design eliminates complex control systems and can be mechanically opened/closed during the lifting process.
- The whole machine is easy to use and disassemble, suitable for underwater and land operations.
Heavy-Duty Construction
- High-strength steel jaws with replaceable wear-resistant liners (Hardox® or manganese steel).
- Reinforced pivot points and hinges (ISO 4301/FEM standards).
Low Maintenance
- Minimal moving parts reduce wear and servicing requirements.
- Self-lubricating bearings and corrosion-resistant coatings (ISO 12944 C4).
Safety & Reliability
- Fail-safe latch prevents accidental release during lifting.
- Compatible with standard single-rope crane systems.

Technical Specifications

Parameter	Specification
Grab Capacity	0.3–15 m³ (material-dependent)
Material Density Range	0.5–3.0 t/m³ (coal, grain, ore, aggregates)
Rope Diameter	14–36 mm (galvanized steel wire rope)
Jaw Configuration	Clamshell or orange peel
Operation Mode	Open/close only during lifting/lowering cycles (not mid-air)
Weight	300–4,000 kg (capacity-dependent)
Max. Working Depth	5–25 meters
Certifications	CE, ISO 9001, ISO 4301, FEM 9.911

Customization Options

Jaw Liners: Replaceable wear plates or manganese steel for abrasive materials.
Special Coatings: Galvanized or epoxy coatings for corrosive environments (e.g., saltwater ports).
Capacity Upgrades: Reinforced frames for high-density materials (e.g., iron ore, stone).
Safety Add-ons: Load sensors, anti-sway systems, or remote monitoring.
Attachment Types: Fixed or detachable grabs for crane compatibility.

Service & Certifications

Global Compliance: CE, ISO, FEM, and ANSI/ASME B30.26 standards.
Installation: On-site assembly and integration with crane systems.
Warranty: 12–24 months (extendable) with lifetime technical support.
Maintenance: OEM spare parts and preventive maintenance guides.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective single rope grabs that combine rugged reliability with European engineering standards. Rigorously tested for performance in ports, mines, and industrial yards, our grabs are trusted globally for efficient bulk material handling.

Request a Custom Grab Solution – Optimize your material handling with precision-engineered simplicity!
