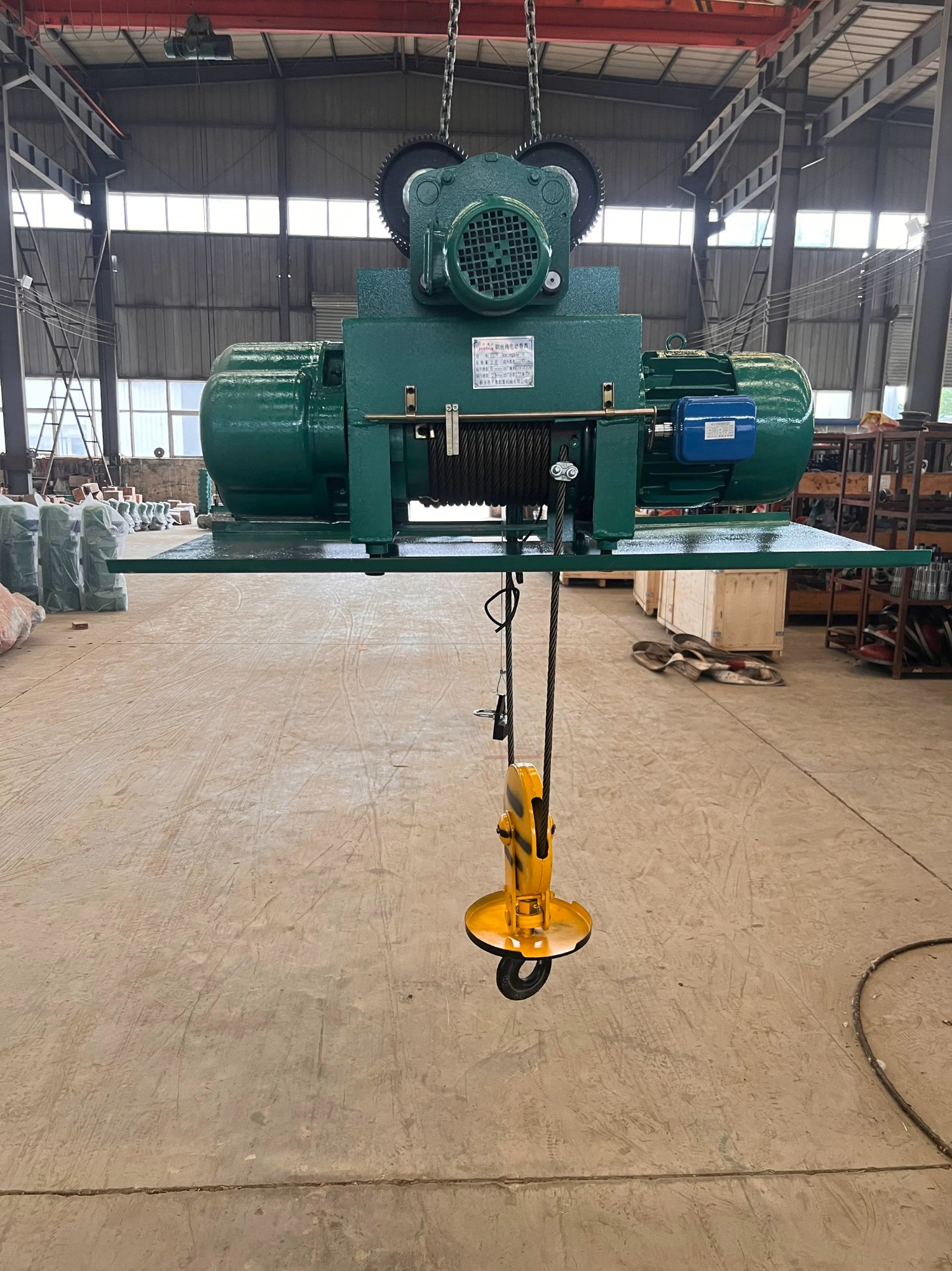

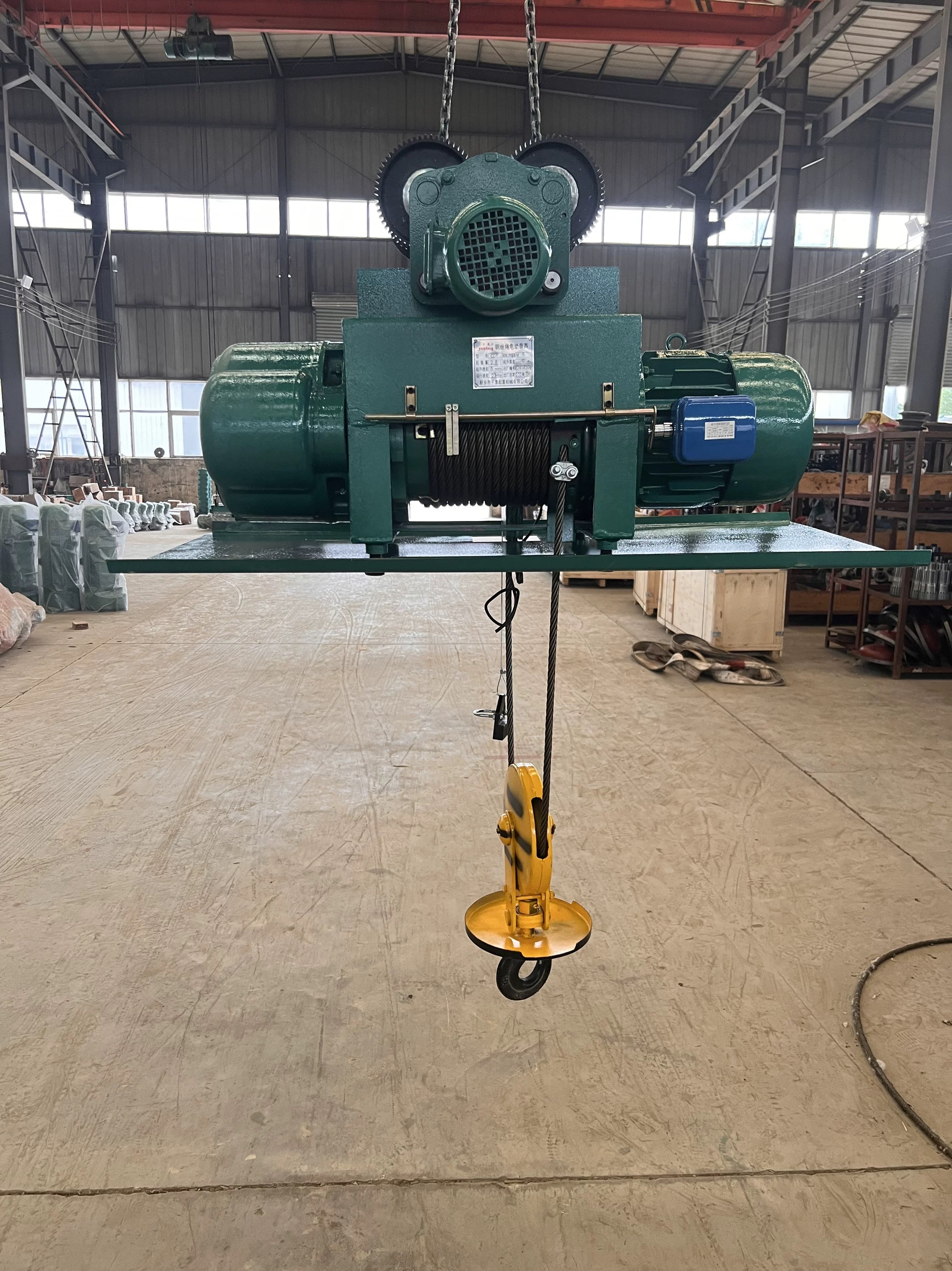

Metallurgical Wire Rope Hoist

Category： Hoist
Heavy-Duty Duty Cycle:30T SWL | FEM 4m Duty Class | 60+ Starts/Hour
Abrasion & Dust Defense: IP65 Enclosure | Hardox Wear Plates | Anti-Dust Lubrication
Fail-Safe Emergency Braking:Dual Brakes (≤0.3s Stop) | Overload Cutoff
Working environment temperature: -20-60℃
INQUIRY EMAIL

Metallurgical Wire Rope Hoist | Certified Lifting Solution for Molten Metal Handling

ISO 4301/FEM 9.781 M6 Duty Certified with Dual-Brake Safety System

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Steel mills, foundries, metal processing plants, and heavy industries requiring high-temperature-resistant lifting solutions for molten metal handling, casting, and forging operations.

Product Overview

Hengkun’s MH-Series Metallurgical Hoists deliver fail-safe performance for foundries, steel mills, and non-ferrous metal plants. Engineered for overhead I-beam tracks with redundant braking and thermal protection, these hoists meet stringent global standards for molten metal handling up to 100T capacity.

Critical Safety Engineering

Dual-Brake Protection System

Primary Electromagnetic Brake
- Positioned on motor shaft
- Instant engagement on power loss
Drum-Mounted Mechanical Safety Brake (Key Innovation)
- Dual-Trigger Mechanism:
  - Power interruption
  - Overspeed (≥110% rated speed)
- Positive-Locking Design:
  - Ratchet-pawl engagement on drum flange
  - Prevents free-fall during transmission failure
- Protected Failure Modes:
  - Motor seizure
  - Gearbox shaft fracture
  - Output coupling failure

Thermal Management

Heat Reflective Shields: Stainless steel shrouds on drum/hook block
Thermal Barrier Coating: Aluminized finish (800°C reflectivity)
H-Class Insulated Motors: 180°C thermal class (IEC 60034-1)

Technical Specifications

Parameter	Specification
Capacity	1–100T
Lift Height	≤20 m
Lift Speed	3.5–8 m/min (variable frequency)
Ambient Temp	-25°C to +60°C (operational)
Duty Class	FEM M6 (ISO 4301 M5/M6)
Protection Rating	IP55 (motor), IP65 (controls)
Hoist Travel	Straight/curved I-beam tracks

Certified Safety Features

Redundant Limit Switches:
- Rotating encoder + weighted mechanical
Load Limiter: ±2% accuracy with cut-off
Overspeed Sensor: Independent centrifugal switch
Explosion-Proof Option: ATEX Zone 22 (dust ignition)
Metallurgical Rope: 6×36WS-IWRC (DIN 3069 Grade 1960)

Technical Advantages vs Standard Hoists

Feature	MH-Series	Conventional Hoists
Brake Redundancy	Dual independent systems	Single brake only
Failure Coverage	Transmission chain fracture proof	Motor brake only
Thermal Protection	Drum insulation + H-class motor	No dedicated heat shielding
Safety Certification	ISO 4301 M6 + EN 14492-2	General duty (FEM 1Am)

Component Specifications

Subsystem	Metallurgical Standard
Wire Rope	Zinc-coated high-carbon steel
Sheaves	Forged steel with graphite bushings
Control Pendant	Heat-resistant silicone cable
Structural Frame	S355J2G3 steel with crack testing

ThyssenKrupp Steel Plant Deployment
*24×MH-8T units handling 1,550°C molten steel:

Zero safety incidents in 4 years

30% maintenance reduction via sealed brakes*

Global Compliance

Safety Directives: EN 14492-2, ASME B30.16
Material Certs: Mill test reports per EN 10204 3.1
Quality Systems: ISO 9001 with IATF 16949 protocols
Electromagnetic: EMC Directive 2014/30/EU

Why Choose Us?
As a leading Chinese manufacturer, we deliver metallurgical-grade Wire Rope Hoists that combine European engineering rigor with unmatched durability in extreme conditions. Our hoists are rigorously tested for safety and performance in steel mills, foundries, and heavy industries worldwide.

Request a High-Temp Solution – Forge ahead with reliable, heat-resistant lifting power!
