EN 13155 Certified with 270° Rotation & 0.5mm Positioning Accuracy
Brand: Henan Hengkun Crane Co., Ltd.
Applications: Workshops, assembly lines, loading docks, and manufacturing facilities requiring space-saving, flexible lifting solutions for machinery, tools, and materials in confined areas.

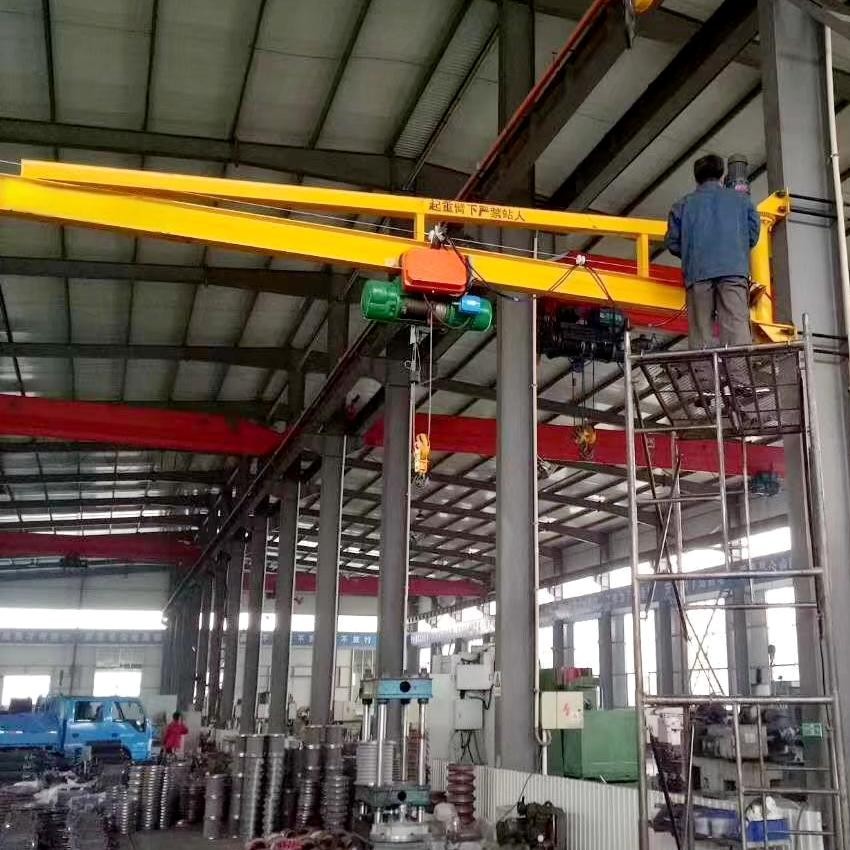

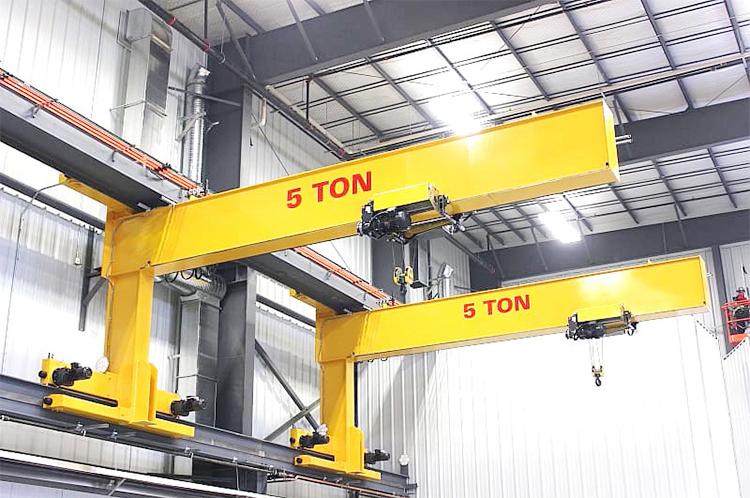

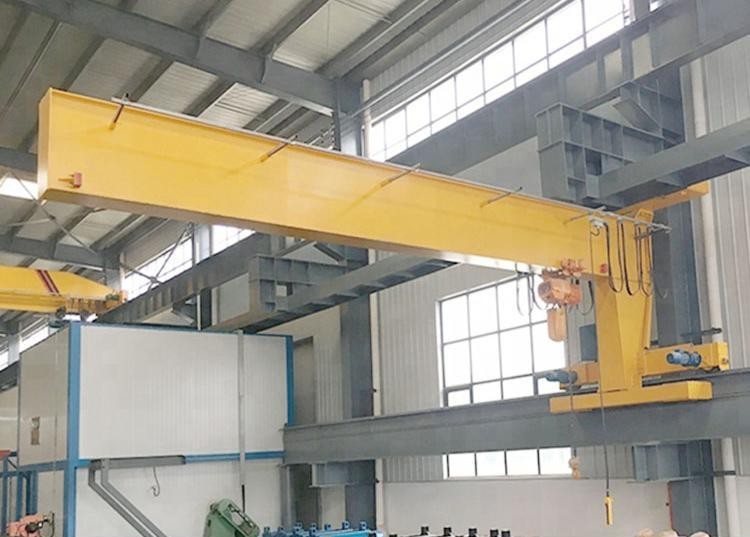

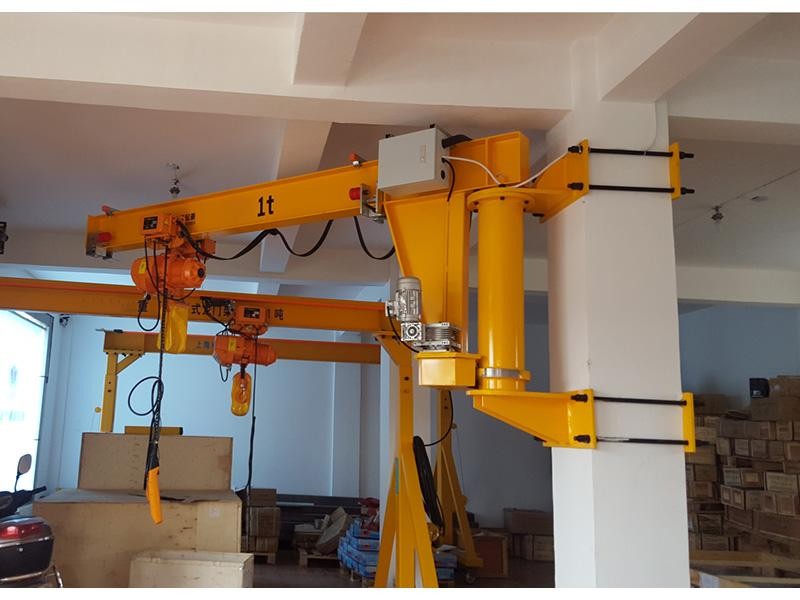

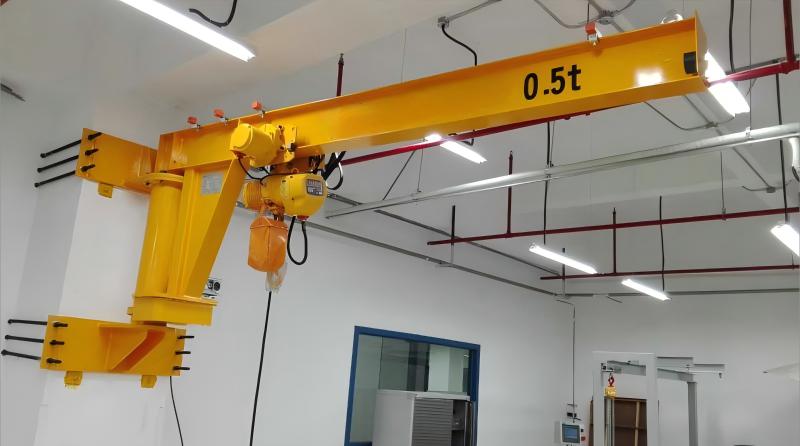

Henan Hengkun’s Wall-Mounted Jib Crane eliminate floor obstructions while delivering up to 10-ton lifting capacity in manufacturing cells, assembly lines, and maintenance bays. Engineered for concrete/masonry walls, our systems reclaim 35% floor space versus floor-standing cranes with rapid installation in <4 hours.
Space-Saving Design
Wall or column mounting eliminates the need for floor space or foundations.
Compact footprint ideal for tight workshops or production lines.
Flexible Rotation & Reach
Slewing range up to 360° with manual or motorized rotation options.
Adjustable boom lengths (2–10 meters) to suit specific work zones.
Durability & Safety
High-strength steel construction with ISO 12944 C4 anti-corrosion coatings.
Overload protection, emergency stop, and anti-collision sensors.
Smooth Operation
Manual push, geared rotation, or motorized drive options.
Low-friction trolley movement for effortless load positioning.
Easy Installation
Pre-assembled modular components for quick wall mounting.
Minimal structural modifications required.
| Parameter | Specification |
|---|---|
| Load Capacity | 0.25–10 tonnes |
| Boom Length | 2–10 meters (customizable) |
| Slewing Angle | 180° (standard) or 360° (motorized option) |
| Lifting Height | 3–15 meters (adjustable) |
| Rotation Drive | Manual, geared, or electric motor |
| Trolley Travel Speed | 10–20 m/min (manual), 5–15 m/min (motorized) |
| Power Supply | 220–480V AC, 50/60Hz (for motorized models) |
| Protection Grade | IP55 (standard), IP65 (optional) |
| Ambient Temperature | -20°C to +50°C |
| Certifications | CE, ISO 9001, ISO 14001, FEM |
Motorization: Electric rotation and trolley travel for automation.
Material Upgrades: Stainless steel or galvanized finishes for corrosive environments.
Attachments: Chain hoists, electric Wire Rope Hoists, or vacuum lifters.
Safety Add-ons: Load limiters, proximity sensors, or remote control systems.
Mounting Kits: Custom brackets for reinforced walls or columns.
Overload Protection: 110% cut-off with alarm
Rotation Limiters: Adjustable mechanical stops
Emergency Stop: Dual-circuit (pendant + boom)
Structural Monitoring:
Wall stress sensors
Anchor tension indicators
| Sector | Use Case |
|
|---|---|---|
| Automotive | Engine assembly positioning |
|
| Warehousing | Mezzanine inventory handling |
|
| Maintenance | Equipment repair bays | |
| Aerospace | Composite wing handling |
BYD Assembly Plant Case
*47×Wall-Mounted Jib Crane 1T units in powertrain workshop:
35% faster tool changeovers
Zero safety incidents in 5 years*
Global Compliance: CE, ISO, ANSI/ASME B30.11, and FEM standards.
Installation: On-site setup and load testing by certified technicians.
Warranty: 12–24 months (extendable) with lifetime technical support.
Training: Operator safety and maintenance guidelines.
Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective wall-mounted jib cranes that combine European engineering standards with industrial-grade reliability. Rigorously tested for safety and performance, our cranes are trusted globally to optimize workflows in automotive, aerospace, and manufacturing sectors.
Request a Space-Saving Solution – Enhance productivity with precision-engineered lifting flexibility!
