Boat Davit Crane

Category： Marine Crane
Saltwater Corrosion Resistance: 316 Stainless Steel Winch | 400μm Epoxy Coating (ISO 12944 C5-M)
Emergency Release System: Auto Brake on Power Loss | Manual Override (≤5s Release)
Compact Deck Footprint: 180° Rotation | 0.5T-5T SWL
Smart Load Control: Anti-Sway Gyro | ±10kg Load Monitoring | IP67 Remote Control
INQUIRY EMAIL

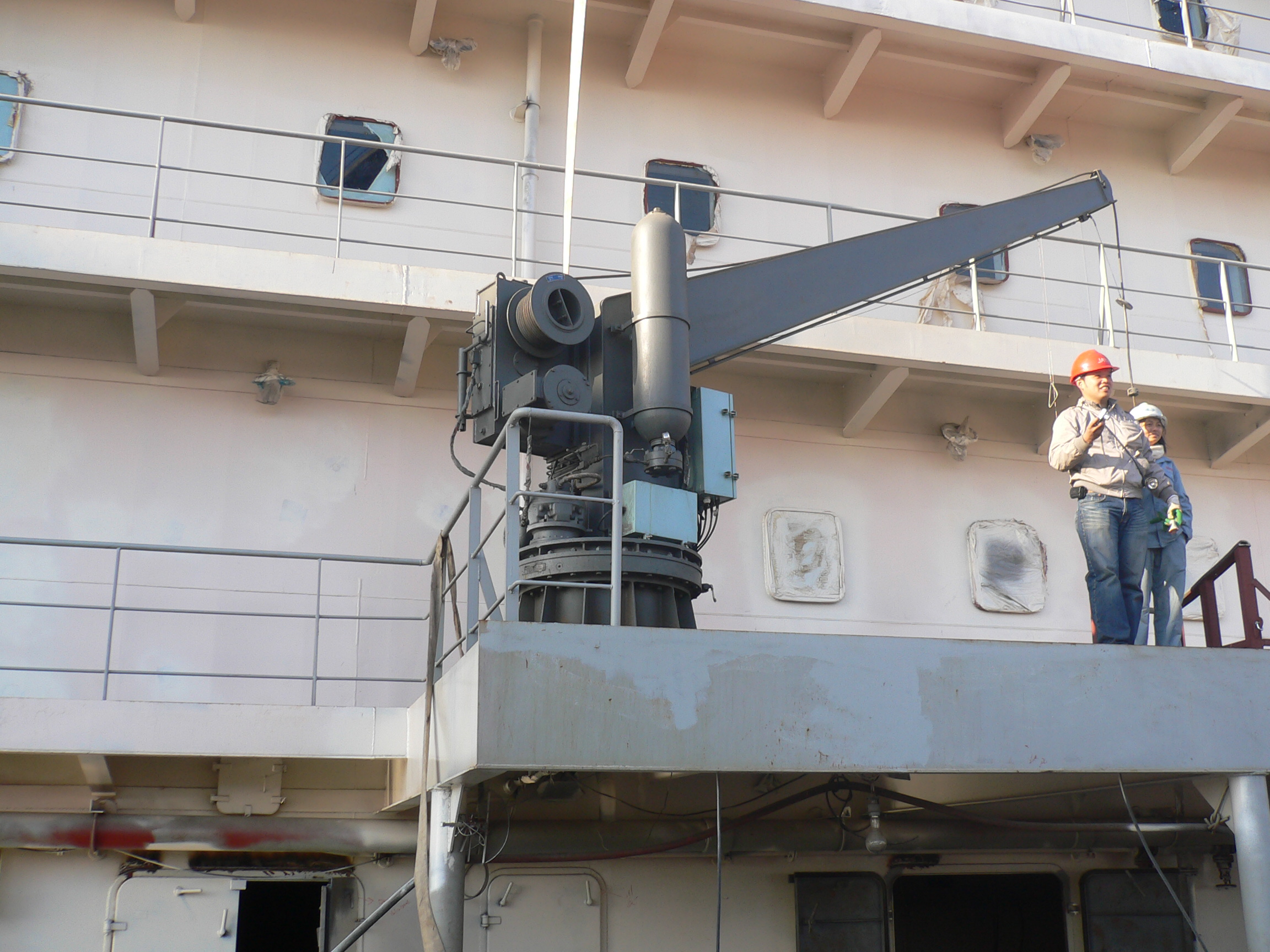

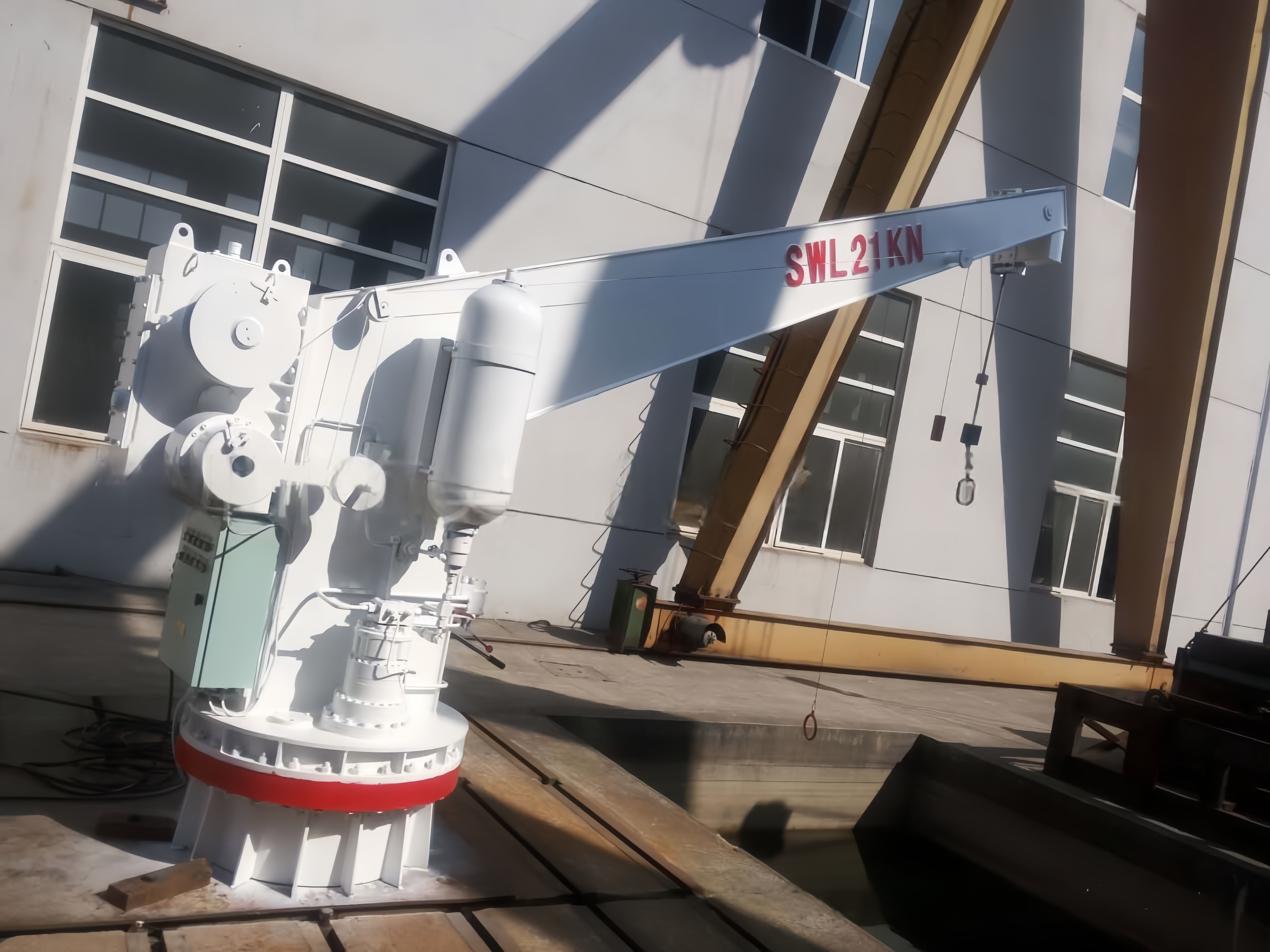

Boat Davit Crane

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Ships, yachts, offshore platforms, naval vessels, and marine facilities requiring safe, compact lifting solutions for lifeboats, rescue boats, workboats, or equipment deployment in maritime environments.

Product Overview

Our Boat Davit Crane is a marine-grade lifting system specifically designed for launching and retrieving small boats, lifeboats, or utility craft from vessels or offshore structures. Engineered with corrosion-resistant materials and advanced safety features, this davit crane ensures reliable performance in harsh saltwater conditions while complying with international maritime safety standards. Ideal for emergency response, crew transfers, or maintenance operations, it combines durability, precision, and ease of operation for critical marine tasks.

Key Features & Benefits

Compact & Lightweight Design
- Foldable or telescopic arms minimize deck space usage while maximizing operational flexibility.
- Aluminum alloy or galvanized steel construction for reduced weight and corrosion resistance.
Marine-Grade Durability
- ISO 12944 C5-M anti-corrosion coatings and stainless steel components for saltwater environments.
- IP66/IP68-rated motors and waterproof electrical systems.
Safety & Compliance
- Fail-safe braking systems, overload protection, and emergency manual operation.
- Compliant with SOLAS, IMO, and DNV GL standards for life-saving appliances.
Ease of Operation
- Manual, electric, or hydraulic drive options for smooth load control.
- Remote control or pendant operation for precise boat deployment.
Versatility
- Compatible with lifeboats (up to 10 tonnes), rescue boats, or cargo platforms.
- Optional rotation (180° or 360°) for multi-directional deployment.

Technical Specifications

Parameter	Specification
Lifting Capacity	1–10 tonnes (SWL)
Max. Outreach	3–15 meters (Customizable)
Lifting Speed	5–15 m/min (adjustable)
Rotation Range	180° or 360° (hydraulic/electric slewing)
Power Supply	24V DC, 220V AC, or hydraulic power pack
Wire Rope Diameter	8–16 mm (galvanized steel)
Protection Grade	IP66 (standard), IP68 (submersible options)
Ambient Temperature	-25°C to +60°C
Certifications	SOLAS, IMO MSC.81(70), DNV GL, ABS

Customization Options

Drive Systems: Manual crank, electric, or hydraulic operation.
Boat Compatibility: Custom hooks, rollers, or grippers for specific lifeboat models.
Safety Add-ons: Automatic release hooks, load sensors, or emergency backup power.
Material Upgrades: Stainless steel components for coastal/offshore use.
Lighting: Integrated LED lights for night operations.

Service & Certifications

Global Compliance: SOLAS, IMO, DNV GL, ABS, and ISO 9001/14001.
Installation: On-board setup and testing by certified marine engineers.
Warranty: 12–24 months (extendable) with 24/7 technical support.
Training: Crew safety drills and maintenance workshops.

Why Choose Us?
As a leading Chinese manufacturer, we deliver cost-effective, marine-certified davit cranes that prioritize safety and reliability. Our cranes are rigorously tested to meet stringent maritime regulations, ensuring seamless integration into vessels, offshore platforms, and rescue operations worldwide.

Request a Safety Solution – Secure your crew and assets with precision-engineered marine lifting technology!
