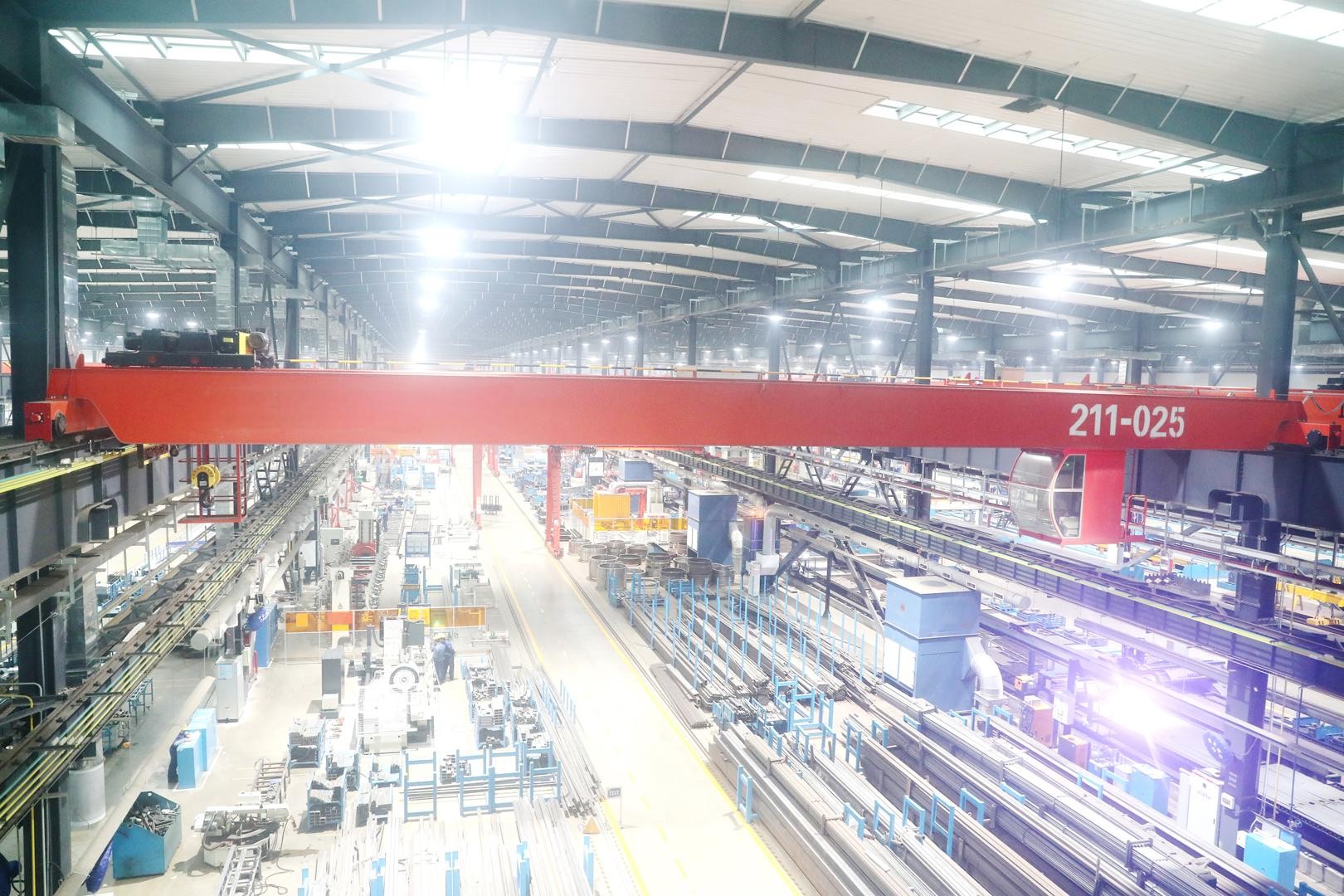

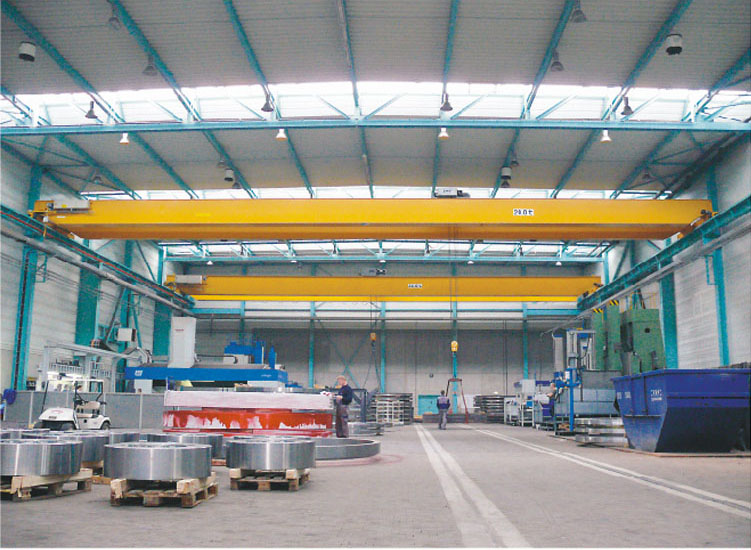

European Double Girder Overhead Crane

Product Item : European Double Girder Overhead Crane
Category： Overhead Crane
FEM/DIN Compliance Class：FEM 1.001-1.008 | DIN 15018
Compact Euro Design：Hook Approach: ≤200mm | Headroom: Optimized 30% vs Standard
Energy Efficiency Grade：IE4 Premium Efficiency Motors | Regenerative Power Feedback
Modular Configuration Options：Radio Remote Control | Variable Frequency Drive (VFD) | CE-certified Safety Brakes
INQUIRY EMAIL

European Double Girder Overhead Crane | Precision Heavy Lifting

FEM & DIN Certified | Engineered for Manufacturing Excellence

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Heavy industries including steel production, aerospace, automotive assembly, shipbuilding, mining, and large-scale warehousing.

Product Overview

Engineered with cutting-edge European design principles, our Double Girder Overhead Crane delivers exceptional strength, precision, and energy efficiency for heavy-load handling. Featuring a modular structure and intelligent automation, it is tailored for demanding industrial environments requiring high-frequency operation and long-term reliability. Ideal for lifting capacities up to 1,000 tonnes, this crane optimizes workflow while reducing lifecycle costs through advanced engineering and low-maintenance components.

Core Design Advantages vs. Conventional Cranes

Parameter	European Crane	Traditional Crane
Hook-to-Wall Clearance	450mm (min.) → +22% floor utilization	800-1200mm
Headroom Height	500mm construction depth → +1.1m lift height in 10m buildings	900-1300mm
Wheel Load	≤28 kN (for 16T SWL) → 30% lighter steel structures	≥40 kN
Energy Consumption	18 kW (10T crane) → 35% lower vs. non-VFD systems	28 kW
Acoustic Noise	≤68 dB(A) (EN 12053 compliant)	80-90 dB(A)

Case Study: In 12m-high automotive plants, achieve 10.8m hook height vs. 9.7m with conventional cranes.

Technical Specifications

Parameter	Specification
Lifting Capacity	10–1,000 tonnes
Span	12–60 meters (customizable)
Lifting Height	Up to 60 meters
Work Class	FEM 3m–5m / ISO A6–A8
Traveling Speed	5–30 m/min (VFD-controlled, adjustable)
Operating Voltage	380–690V AC, 50/60Hz (3-phase)
Ambient Temperature	-20°C to +40°C
Protection Grade	IP66 (hoist) / IP55 (electrical components)
Control System	Siemens/ABB frequency converters (optional)

Engineering Excellence

1. Compact Drive System

Low-Headroom Hoist: Integrated between girders
"3-in-1" VFD Units:
- Hard-geared reducers (ISO 6336)
- IE4 super-premium motors (EU 2019/1781)
- Regenerative braking (25% energy recovery)

2. Structural Optimization

Girders: Laser-cut S355J2 steel (EN 10025)
Welding Standards:

Raw Material-->Shot Blasting-->NDT Welding-->FEM Stress Test

3. Intelligent Controls

Multi-Protection System:

Risk	Safeguard
Overload	110% SWL cut-off + load display
Phase Failure	Automatic power disconnect
Thermal Overrun	Motor temperature sensors
Collision	LiDAR anti-crash system

Operational Benefits

1. Facility Cost Reduction

Lower Wheel Loads → 25% lighter runway beams (saves €120/m)
Reduced Headroom → 15% less HVAC energy (per BREEAM MAN-05)

2. Lifetime Economy

Metric	European Crane	Conventional
Maintenance Cost	€0.05/cycle	€0.14/cycle
Component Life	200,000 cycles	80,000 cycles
Downtime	<0.5%	3-7%

3. Precision Handling

±1mm positioning for aerospace assembly
Shock-free lifting (0.1G acceleration control)

Why Choose Us?
As a leading Chinese manufacturer with European technological partnerships, we provide cost-effective heavy-lifting solutions that outperform traditional models. Our cranes undergo rigorous FEM/ISO testing to guarantee durability and safety for global operations.

Request a Customized Solution – Empower your facility with precision-engineered lifting technology!
