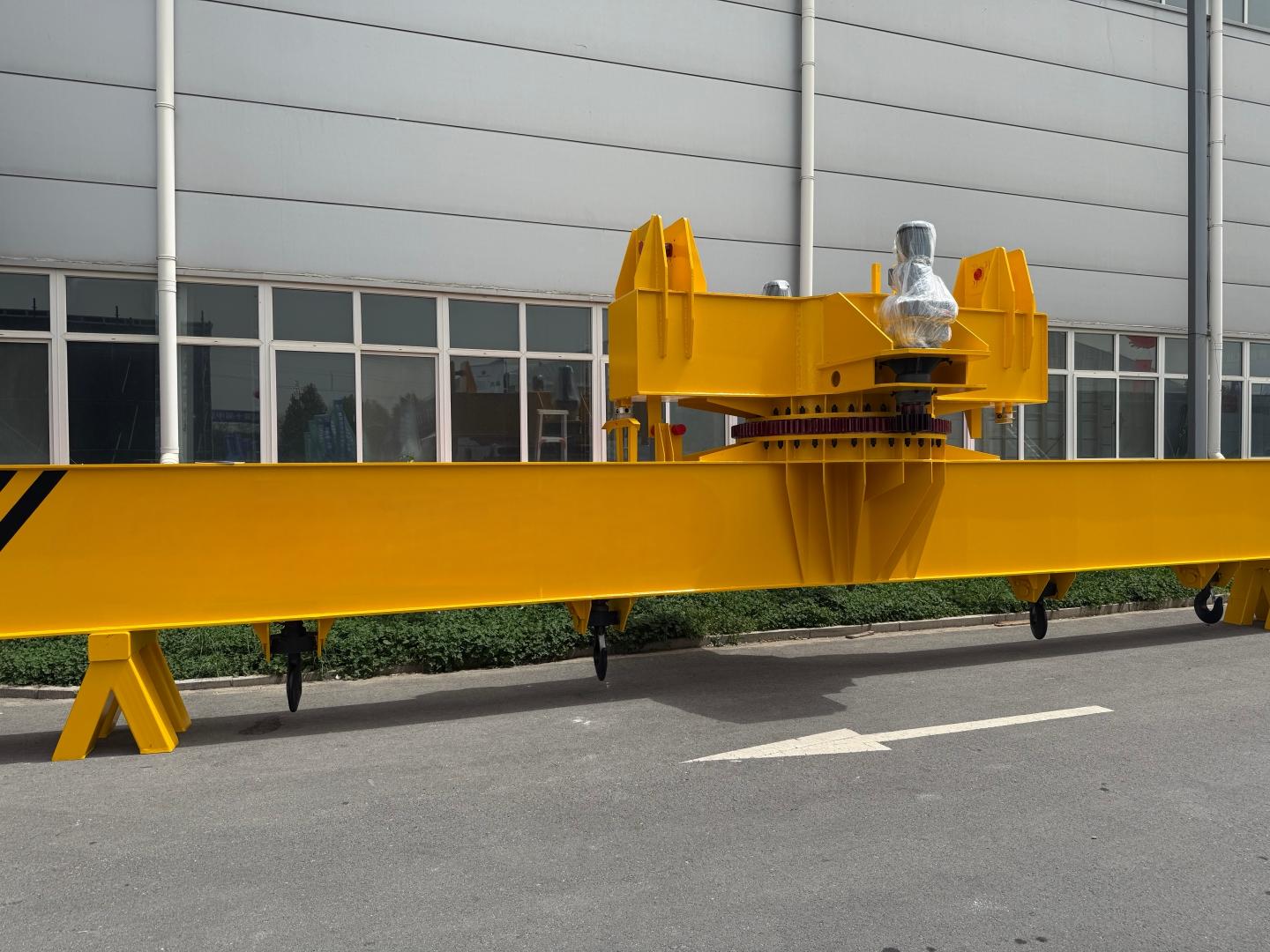

Rotating Lifting Beam

Category： Spreaders
Precision Load Rotation：360° Continuous Rotation | ±2° Accuracy | 10T-100T SWL
Modular Attachment System：Quick-Change Hooks/Clamps | Bolt-On Extensions | ISO 10972 Certified
Anti-Sway Stability：Gyro-Stabilized Control | Load Oscillation ≤5% | EN 13155 Compliant
Low-Profile Design：Collapsible Frame | Headroom: ≤1.2m | Overhead Crane Compatible
INQUIRY EMAIL

Rotating Lifting Beam | Precision Multi-Point Handling
Engineered by Hengkun Crane for Delicate Heavy Loads

Brand: Henan Hengkun Crane Co., Ltd.
Applications: Ideal for precision lifting and positioning of heavy loads in manufacturing, shipbuilding, construction, and logistics. Suitable for handling machinery, steel structures, wind turbine components, and oversized industrial modules.

Achieve Perfect Load Orientation with 360° Controlled Rotation

When lifting turbine rotors, aircraft fuselages, or injection molds demands millimeter-level positioning, Henan Hengkun’s Rotating Lifting Beam delivers ±0.5° angular accuracy and zero torsional deflection. With active sway damping and modular spreader attachments, it eliminates manual load rotation risks – proven in Shanghai aerospace facilities to cut assembly time by 65%.

Key Features & Benefits

360° Rotation: Full rotational control for precise load alignment and placement.
High Load Capacity: Reinforced structure supports heavy-duty operations up to 100+ tons.
Safety First: Integrated overload protection, anti-sway systems, and real-time load monitoring.
Lightweight Design: Optimized weight-to-strength ratio reduces crane load and energy consumption.

Technical Specifications

Parameter	RB-20 (20T)	RB-50 (50T)	RB-100 (100T)
Capacity	20 tonnes	50 tonnes	100 tonnes
Rotation Accuracy	±0.5°	±0.8°	±1.2°
Rotation Speed	0.1°-1.5°/s	0.1°-1.2°/s	0.1°-0.8°/s
Beam Deflection	≤ L/1800	≤ L/1500	≤ L/1200
Lift Points	4	6	8
Drive System	IP65 PMSM Servo + Harmonic Drive
Power Supply	400V AC + 24V DC backup		Battery option
Ambient Temp	-20°C to +40°C
Compliance	EN 13155, FEM 1.001, ASME B30.20

Model: HEK-RB Series

Parameter RB-20 (20T) RB-50 (50T) RB-100 (100T)

Capacity 20 tonnes 50 tonnes 100 tonnes

Rotation Accuracy ±0.5° ±0.8° ±1.2°

Rotation Speed 0.1°-1.5°/s 0.1°-1.2°/s 0.1°-0.8°/s

Beam Deflection ≤ L/1800 ≤ L/1500 ≤ L/1200

Lift Points 4 6 8

Drive System IP65 PMSM Servo + Harmonic Drive

Power Supply 400V AC + 24V DC backup Battery option

Ambient Temp -20°C to +40°C

Compliance EN 13155, FEM 1.001, ASME B30.20

Customization Options

Length & Capacity: Tailored dimensions for specific project requirements.
Rotation Mechanism: Electric, hydraulic, or manual rotation systems.
Attachment Points: Custom hooks, clamps, or magnetic interfaces.
Surface Coating: Epoxy paint, galvanization, or heat-resistant finishes.

Service & Certifications

Global Compliance: CE, ISO 9001, and EN 1090 certified.
Installation: On-site assembly guidance and load testing.
Warranty: 12–24 months (extendable) with lifetime technical support.
Maintenance: Easy-access components and wear-part replacement kits.

Why Choose Us?

Engineering Excellence: 10+ years of expertise in heavy lifting solutions.
Custom Solutions: Bespoke designs for unique operational challenges.
Quality Assurance: Rigorous load testing and fatigue analysis.
Reliability: Stress-tested components for 24/7 industrial use.

Request a Quote
Enhance your lifting efficiency with our advanced Rotating Lifting Beam. [Click here] to request a quote or visit our website for technical details.
