DNV-GL/ABS/CCS Certified Remote-Controlled Solutions
Brand: Henan Hengkun Crane Co., Ltd.
Applications: Ships, offshore platforms, port terminals, marine salvage, and subsea operations requiring robust, corrosion-resistant hauling and anchoring solutions in harsh marine environments.

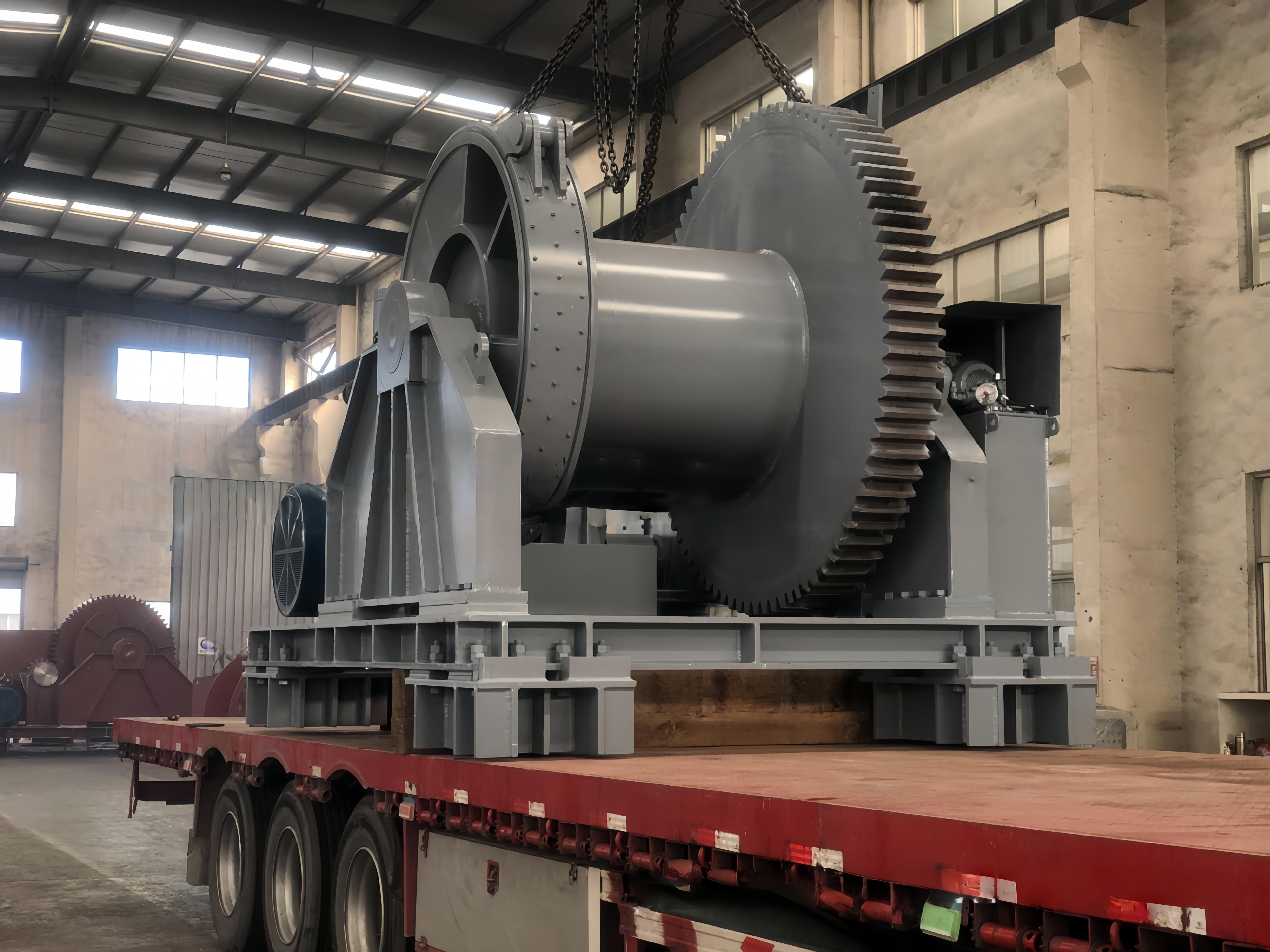

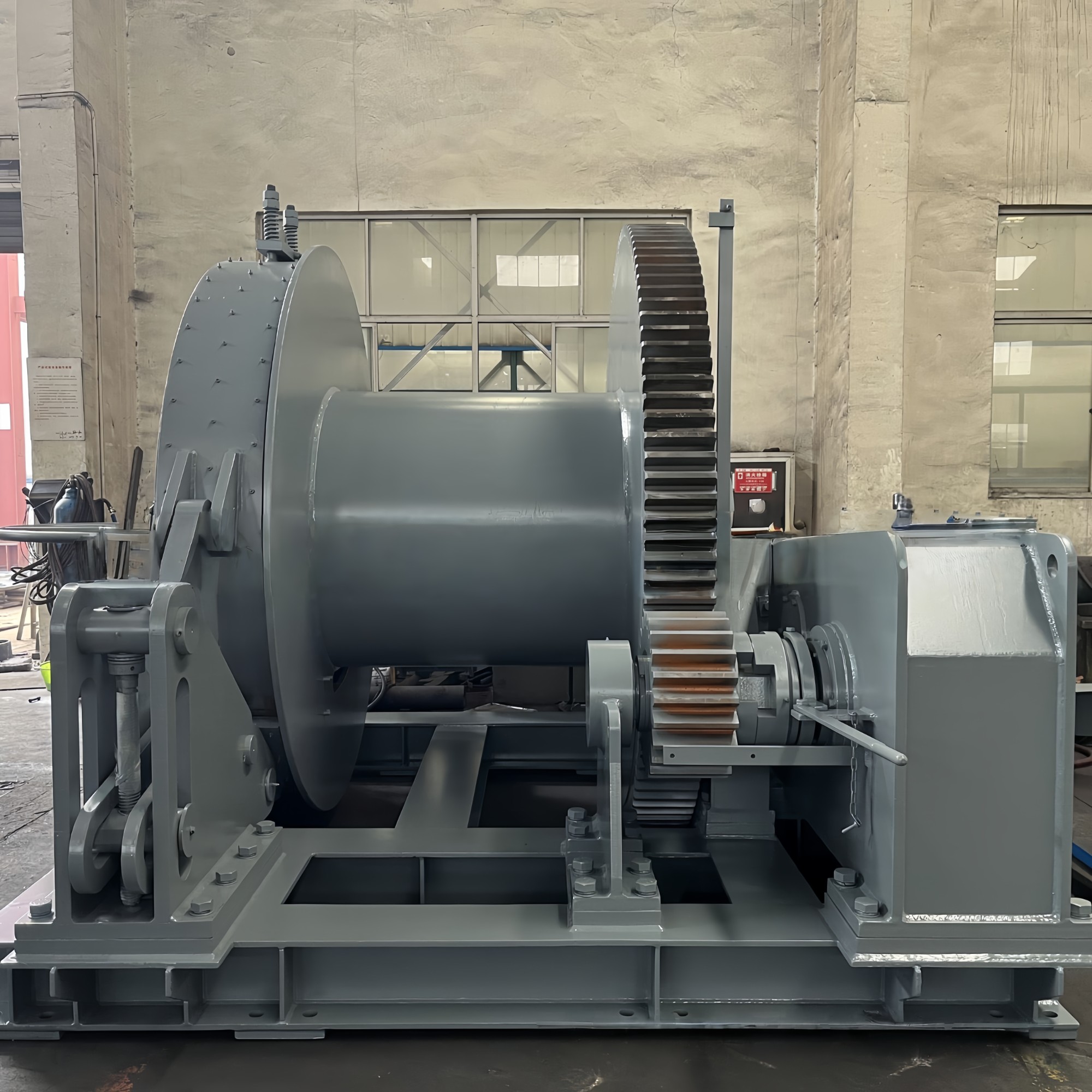

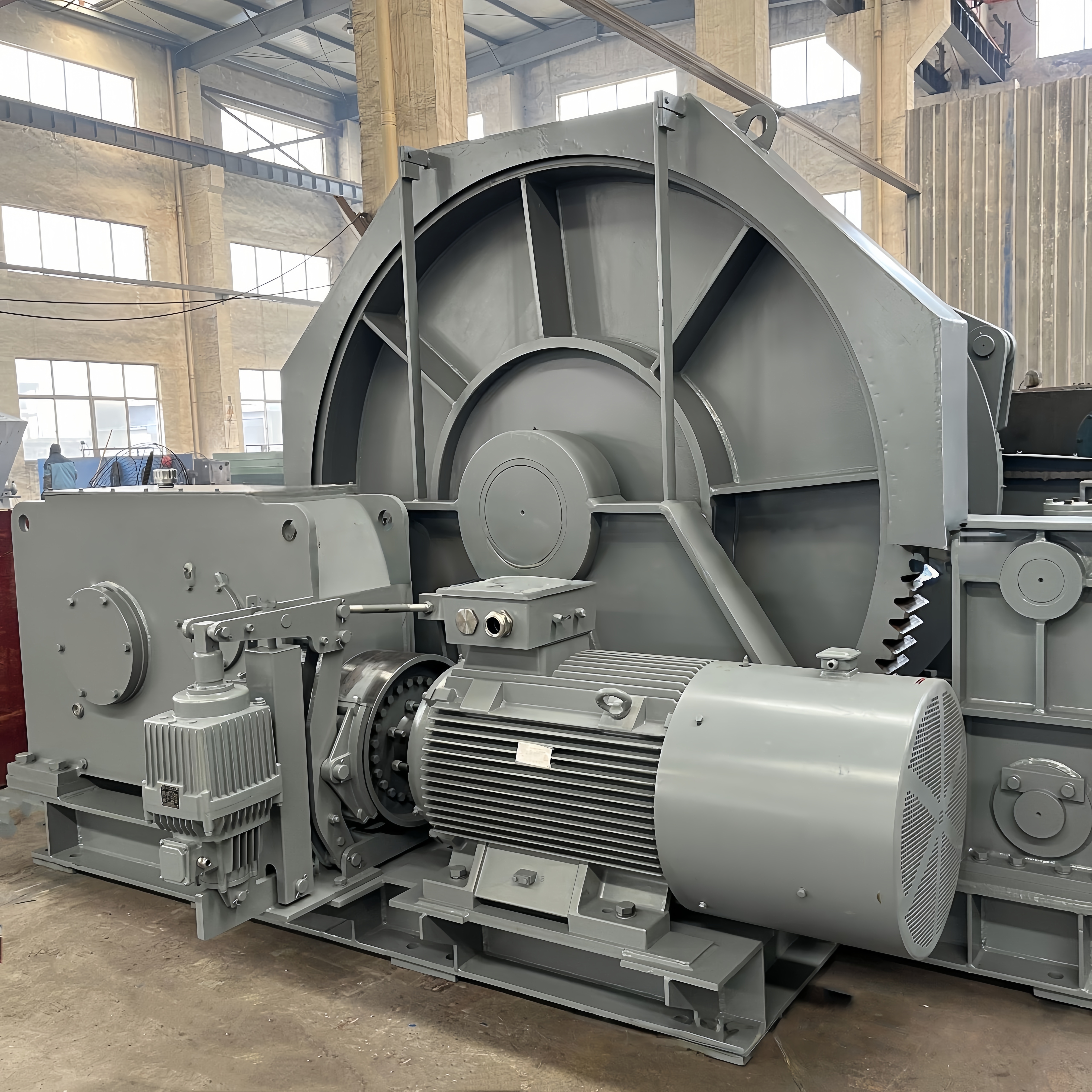

Henan Hengkun’s MW-Series Marine Winches deliver robust traction for mooring, towing, and cargo handling without occupying deck space for operator cabins. Engineered for salt spray environments with bridge-operated radio control (1km range), these winches withstand 24/7 operation under extreme marine conditions.
ISO 12944 C5-M Anti-Corrosion
Hot-dip galvanized substrate + 250μm epoxy coating
Stainless Steel Critical Components
AISI 316L bolts, sensors & hydraulic fittings
Pressurized Enclosures
IP66-rated control cabinets against salt mist
Auto-Spooling Technology
±2mm wire rope layering precision
Real-Time Load Monitoring
Tension, speed & rope capacity display
Dual Braking System
Hydraulic disc brake + mechanical ratchet
| Parameter | Specification |
|---|---|
| Rated Load Capacity | 5–200 tonnes |
| Rope Type | Galvanized steel wire (6x36 class) or synthetic fiber |
| Rope Diameter | 12–50 mm |
| Rope Length | 50–500 meters (customizable) |
| Power Source | Electric (380–690V AC) or Hydraulic (250–350 bar) |
| Line Speed | 2–20 m/min (variable speed control) |
| Duty Cycle | 50%–100% (moderate to continuous duty) |
| Protection Grade | IP68 (standard) |
| Ambient Temperature | -30°C to +60°C |
| Certifications | DNV GL, ABS, Lloyds Register, ISO 9001/14001 |
1. Class Society Compliance
Certified to DNV-ST-0378, ABS Chapter 4, CCS 2018
110% overload cut-off + emergency manual release
ROLL/PITCH operation: ±15°
2. Harsh Environment Resilience
Operational temp: -20°C to +40°C
Beaufort 10 wind resistance
Shock/vibration to IEC 60068-2-6
3. Maintenance Engineering
Modular gearbox (3hr replacement)
Centralized lubrication (50 auto-grease points)
OBD-III remote diagnostics port
4. Safety Redundancy
Slack rope detection (±5% tension tolerance)
Surge protection & salt spray filters
Water-cooled brake system
| Operation | Recommended Package |
|---|---|
| Port Mooring | Twin-drum + constant tension mode |
| Offshore Supply | Hydraulic drive + DP interface |
| Cargo Handling | VFD control + anti-sway algorithm |
| Arctic Service | Low-temperature kit (-60°C) |
Case Study: Busan Port Container Terminal
8×MW-50T units deployed for vessel mooring:
37% deck space reduction
300% wire rope life extension via auto-spooling
Class Approvals: DNV-GL • ABS • CCS • BV
Explosion Proof: ATEX Zone 1 (Group IIB+H₂)
Why Choose Us?
As a leading Chinese manufacturer, we deliver marine-grade winches that combine European engineering precision with rugged offshore durability. Rigorously tested for reliability in extreme maritime conditions, our winches are trusted globally for critical operations in shipping, oil/gas, and subsea industries.
Request a Maritime Solution – Anchor your marine operations with uncompromising power and safety!
